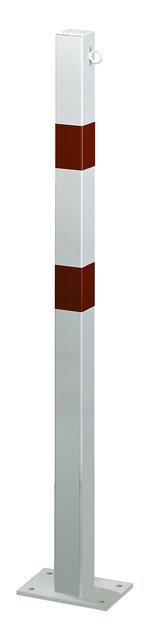

Bollard standard SK, angular
Art.-No. 783228
raw steel, hot-dip galvanised, white powder-coated with two red, reflecting rings, for screwing on
- Dimension a:
- 70 x 70 mm
- Dimension b:
- 1000 mm
- Plate:
- 120 x 120 mm
- No. of eyes:
- 1
- Quantity x hole Ø:
- 4 x Ø13 mm
- Material/surface:
- raw steel, hot-dip galvanised, white powder-coated with two red, reflecting rings, for screwing on
- Systems:
- Standard
- Surface / Colour:
- WEISS
- Fastening type:
- for screwing on
- Height:
- 1000 mm
- Weight per UQ (kg):
- 8.100 kg
- Contents Unit:
- 1 Piece
Article-No.
Dimension a
Dimension b
Plate
No. of eyes
Action
Article-No.
783211
Dimension a
70 x 70 mm
Dimension b
1000 mm
Plate
120 x 120 mm
No. of eyes
0
Article-No.
783228
Dimension a
70 x 70 mm
Dimension b
1000 mm
Plate
120 x 120 mm
No. of eyes
1
Article-No.
783235
Dimension a
70 x 70 mm
Dimension b
1000 mm
Plate
120 x 120 mm
No. of eyes
2
- Delivery does not include the ground sleeve.
- Plastic coatings in all RAL colours
- Chain eyes for corner post
- Posts with four chain eyes.
