• Bollard Klappy-Bo, angular, foldable, Material: raw steel, Surface: hot-dip galvanised passivated, for setting in concrete, master keyed profile cylinder lock with three keys, Post: 70 x 70 mm, Height above ground: 1000 mm, Plate length: 160 mm, Plate width: 100 mm, Ground sleeve dia.: 60 mm, Length of ground sleeve: 400 mm, Ground plate: 160 x 100 mm, No. of holes: 4, Hole: Ø9 mm
  • Bollard Klappy-Bo, angular, foldable, Material: raw steel, Surface: hot-dip galvanised passivated, for setting in concrete, master keyed profile cylinder lock with three keys, Post: 70 x 70 mm, Height above ground: 1000 mm, Plate length: 160 mm, Plate width: 100 mm, Ground sleeve dia.: 60 mm, Length of ground sleeve: 400 mm, Ground plate: 160 x 100 mm, No. of holes: 4, Hole: Ø9 mm

Bollard Klappy-Bo, angular, foldable

Art.-No. 780906

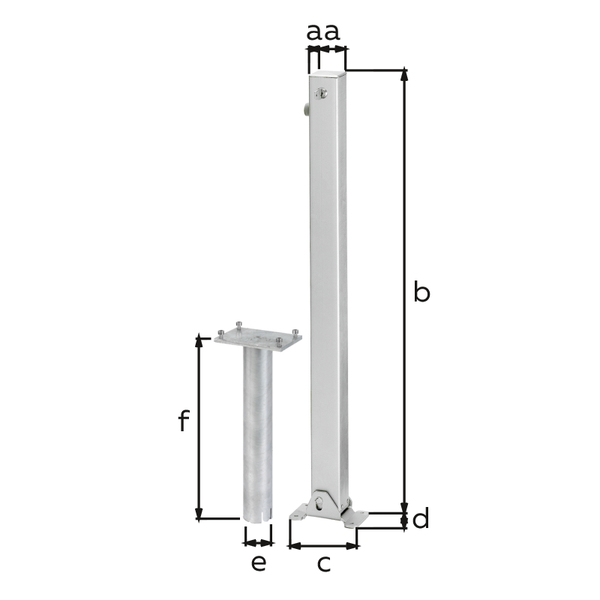

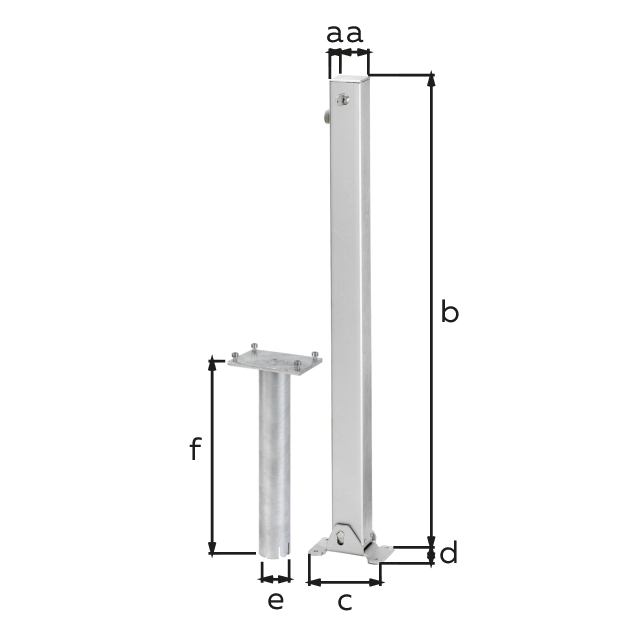

Dimension a:
70 x 70 mm
Dimension b:
1000 mm
Dimension c:
160 mm
Dimension d:
100 mm
Dimension e-Ø:
60 mm
Dimension f:
400 mm
Ground plate:
160 x 100 mm
Quantity x hole Ø:
4 x Ø9 mm
Material/surface:
raw steel, hot-dip galvanised passivated, for setting in concrete, master keyed profile cylinder lock with three keys
Systems:
Klappy
Surface / Colour:
FVZ
Fastening type:
for setting in concrete
:
PZSCHL
Panel width:
100 mm
Height:
1000 mm
Weight per UQ (kg):
9.600 kg
Contents Unit:
1 Piece
  • foldable using the triangular fire alarm lock or the profile cylinder lock
  • The ground sleeve is pressed in at the side for better support on the variants for setting in concrete.
  • Triangular wrench key not included. It can be ordered separately.
  • Plastic coatings in all RAL colours
  • Posts with chain eyelets
