• Bollard Locky-Bo, round, foldable, Material: raw steel, Surface: hot-dip galvanised passivated, for setting in concrete, Post dia.: 60 mm, Height above ground: 1000 mm, Plate length: 160 mm, Plate width: 100 mm, Ground sleeve dia.: 60 mm, Length of ground sleeve: 400 mm, Ground plate: 150 x 100 mm
  • Bollard Locky-Bo, round, foldable, Material: raw steel, Surface: hot-dip galvanised passivated, for setting in concrete, Post dia.: 60 mm, Height above ground: 1000 mm, Plate length: 160 mm, Plate width: 100 mm, Ground sleeve dia.: 60 mm, Length of ground sleeve: 400 mm, Ground plate: 150 x 100 mm

Bollard Locky-Bo, round, foldable

Art.-No. 780272

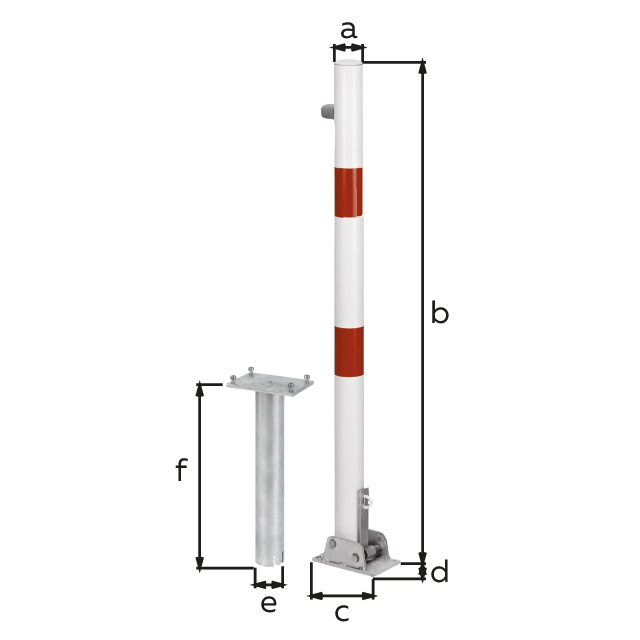

Dimension a-Ø:
60 mm
Dimension b:
1000 mm
Dimension c:
160 mm
Dimension d:
100 mm
Dimension e-Ø:
60 mm
Dimension f:
400 mm
Ground plate:
150 x 100 mm
Material/surface:
raw steel, hot-dip galvanised passivated, for setting in concrete
Systems:
Locky
Surface / Colour:
FVZ
Fastening type:
for setting in concrete
Panel width:
100 mm
Height:
1000 mm
Weight per UQ (kg):
6.400 kg
Contents Unit:
1 Piece
  • prepared for padlock
  • The ground sleeve is pressed in at the side for better support on the variants for setting in concrete.
  • Padlocks not included.
  • Plastic coatings in all RAL colours
  • Posts with chain eyelets
