• Bollard Passau, round, removable, Material: raw steel, Surface: hot-dip galvanised passivated, for setting in concrete, triangle lock without triangular key, Post dia.: 60 mm, Height above ground: 1000 mm, Total length of post: 1200 mm, Ground sleeve dia.: 65 mm, Length of ground sleeve: 400 mm, No. of eyes: 1
  • Bollard Passau, round, removable, Material: raw steel, Surface: hot-dip galvanised passivated, for setting in concrete, triangle lock without triangular key, Post dia.: 60 mm, Height above ground: 1000 mm, Total length of post: 1200 mm, Ground sleeve dia.: 65 mm, Length of ground sleeve: 400 mm, No. of eyes: 1

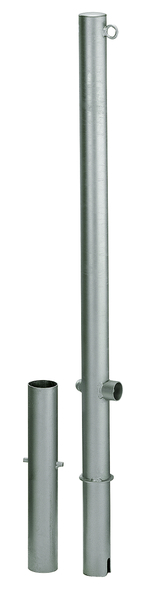

Bollard Passau, round, removable

Art.-No. 781347
6 Variants
Dimension a-Ø:
60 mm
Dimension b:
1000 mm
Dimension c:
1200 mm
Dimension d-Ø:
65 mm
Dimension e:
400 mm
No. of eyes:
1
Material/surface:
raw steel, hot-dip galvanised passivated, for setting in concrete, triangle lock without triangular key
Systems:
Passau
Surface / Colour:
FVZ
Fastening type:
for setting in concrete
:
3KTSCHL
Height:
1000 mm
Weight per UQ (kg):
5.100 kg
Contents Unit:
1 Piece
  • removable by using the triangular fire alarm lock
  • Bollard with Ø76 mm taper at the lower end to Ø60 mm.
  • Triangular wrench key not included. It can be ordered separately.
  • Plastic coatings in all RAL colours
