• Bollard Passau-Royal, round, removable, Material: raw steel, Surface: hot-dip galvanised, white powder-coated with two red, reflecting rings, for setting in concrete, Post dia.: 60 mm, Height above ground: 1000 mm, Total length of post: 1200 mm, Ground sleeve dia.: 65 mm, Length of ground sleeve: 400 mm, No. of eyes: 0
  • Bollard Passau-Royal, round, removable, Material: raw steel, Surface: hot-dip galvanised, white powder-coated with two red, reflecting rings, for setting in concrete, Post dia.: 60 mm, Height above ground: 1000 mm, Total length of post: 1200 mm, Ground sleeve dia.: 65 mm, Length of ground sleeve: 400 mm, No. of eyes: 0

Bollard Passau-Royal, round, removable

Art.-No. 781750

raw steel, hot-dip galvanised, white powder-coated with two red, reflecting rings, for setting in concrete

2 Variants

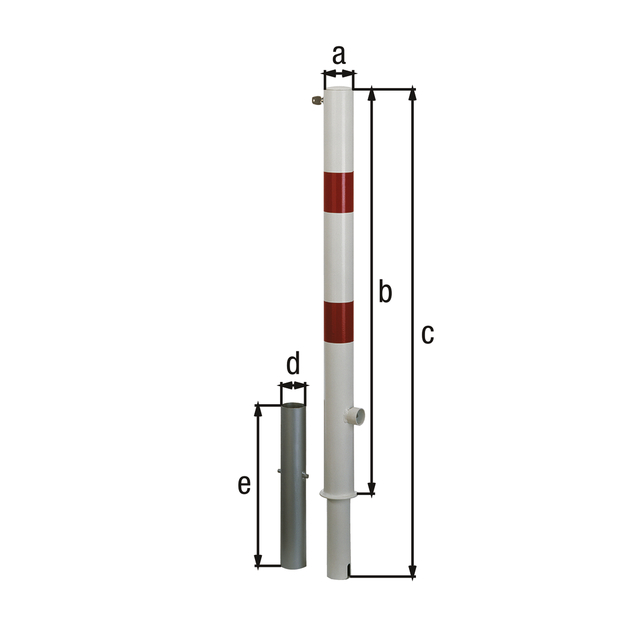

Dimension a-Ø:
60 mm
Dimension b:
1000 mm
Dimension c:
1200 mm
Dimension d-Ø:
65 mm
Dimension e:
400 mm
No. of eyes:
0
Material/surface:
raw steel, hot-dip galvanised, white powder-coated with two red, reflecting rings, for setting in concrete
Systems:
Passau
Surface / Colour:
WEISS
Fastening type:
for setting in concrete
Height:
1000 mm
Weight per UQ (kg):
6.000 kg
Contents Unit:
1 Piece
Article-No.
Dimension a-Ø
Dimension b
Dimension c
Dimension d-Ø
Action
Article-No. 781750
Dimension a-Ø 60 mm
Dimension b 1000 mm
Dimension c 1200 mm
Dimension d-Ø 65 mm
Article-No. 781842
Dimension a-Ø 76 mm
Dimension b 1000 mm
Dimension c 1200 mm
Dimension d-Ø 65 mm
  • removable by using the triangular fire alarm lock
  • With double locking function: In private areas it is opened using screw in cylinder key, simultaneously also is opened in public areas for the fire brigade and police using triangular key.
  • Bollard with Ø76 mm taper at the lower end to Ø60 mm.
  • Triangular wrench key not included. It can be ordered separately.
  • Screw in cylinder lock with two keys.
  • Plastic coatings in all RAL colours
