• Bicycle stands Bremen, multiple parking system, Material: raw steel, Surface: hot-dip galvanised passivated, wall element without posts, for screwing on, Total length with post: Total length without post: 2990 mm, Distance centre - centre of bracket: 306 mm, Square tube: 60 x 60 mm, Frame thickness: 40 x 40 mm, Stand angle: 90 °, Clip Ø: 16 mm, No. of parking spaces: 10
  • Bicycle stands Bremen, multiple parking system, Material: raw steel, Surface: hot-dip galvanised passivated, wall element without posts, for screwing on, Total length with post: Total length without post: 2990 mm, Distance centre - centre of bracket: 306 mm, Square tube: 60 x 60 mm, Frame thickness: 40 x 40 mm, Stand angle: 90 °, Clip Ø: 16 mm, No. of parking spaces: 10

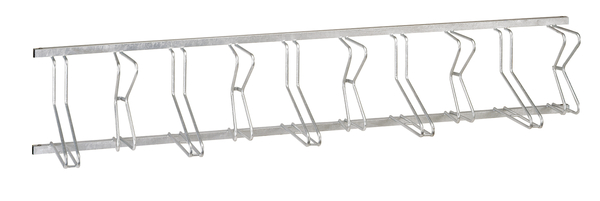

Bicycle stands Bremen, multiple parking system

Art.-No. 693626

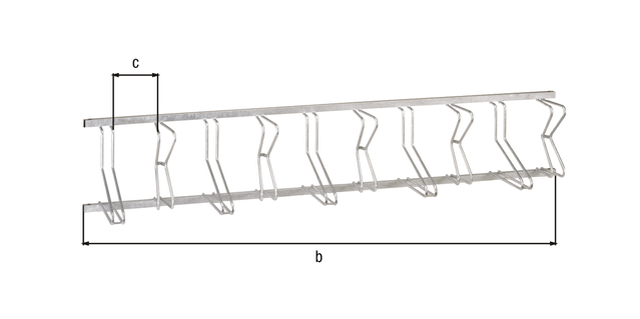

Dimension b:
2990 mm
Dimension c:
306 mm
Square tube:
60 x 60 mm
No. of parking spaces:
10
Clip Ø:
16 mm
Frame thickness:
40 x 40 mm
Stand angle:
90 °
Material/surface:
raw steel, hot-dip galvanised passivated, wall element without posts, for screwing on
Systems:
Bremen,MFHLT
Surface / Colour:
FVZ
Fastening type:
for screwing on
Holding cradle:
EINSTG
Material:
Steel
Weight per UQ (kg):
27.500 kg
Contents Unit:
1 Piece
  • for bicycles with a tyre width of 25 to 45 mm
  • Favourable space usage due to different height adjustments.
  • When mounting on a wall, the minimum height of the wall must be 800 mm.
  • When mounting on a wall, leave a minimum distance of 150 mm between the ground and lower edge of rack.
  • The add-on element is included in delivery with a centre post.
