• Single bicycle holder, for fixing to the wall, Material: raw steel, Surface: hot-dip galvanised, eye height: 350 mm, Bracket depth: 140 mm, Plate length: 240 mm, Plate width: 45 mm, Distance from middle to middle of hole: 161 mm, Stand angle: 90 °, Maximum clip distance: 20 - 42 mm
  • Single bicycle holder, for fixing to the wall, Material: raw steel, Surface: hot-dip galvanised, eye height: 350 mm, Bracket depth: 140 mm, Plate length: 240 mm, Plate width: 45 mm, Distance from middle to middle of hole: 161 mm, Stand angle: 90 °, Maximum clip distance: 20 - 42 mm

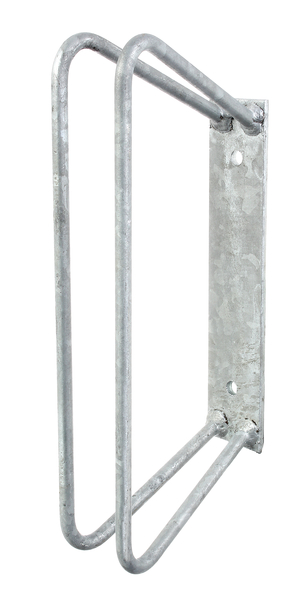

Single bicycle holder

for fixing to the wall
Art.-No. 692216

raw steel, hot-dip galvanised

2 Variants

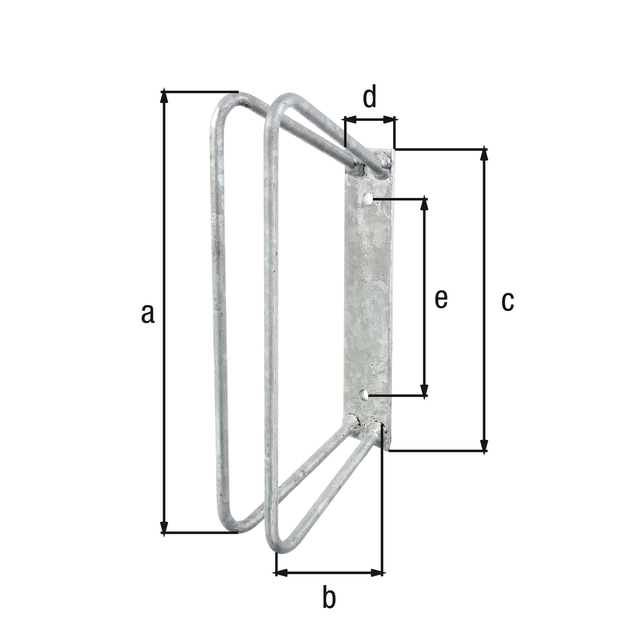

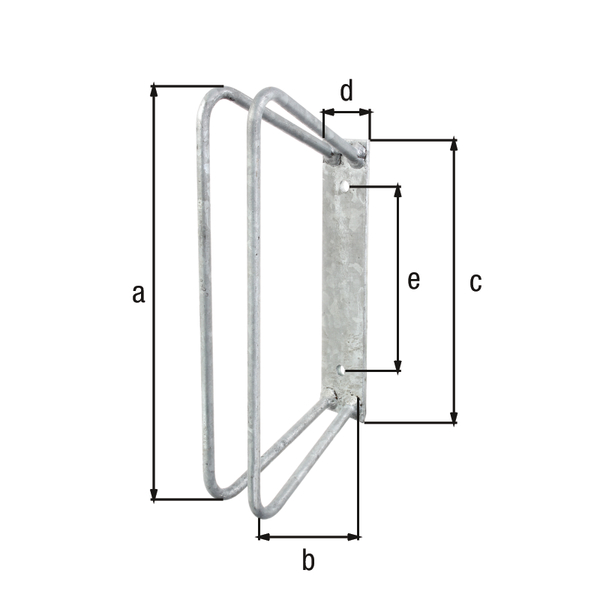

Dimension a:
350 mm
Dimension b:
140 mm
Dimension c:
240 mm
Dimension d:
45 mm
Dimension e:
161 mm
Clip Ø:
10 mm
Maximum clip distance:
20 - 42 mm
Stand angle:
90 °
Material/surface:
raw steel, hot-dip galvanised
Systems:
EZHLT
Surface / Colour:
FVZ
Fastening type:
for screwing on
Holding cradle:
EINSTG
Material:
Steel
Panel width:
45 mm
Weight per UQ (kg):
1.240 kg
Contents Unit:
1 Piece
Article-No.
Dimension a
Dimension b
Dimension c
Dimension d
Action
Article-No. 692216
Dimension a 350 mm
Dimension b 140 mm
Dimension c 240 mm
Dimension d 45 mm
Article-No. 692254
Dimension a 350 mm
Dimension b 170 mm
Dimension c 240 mm
Dimension d 45 mm
