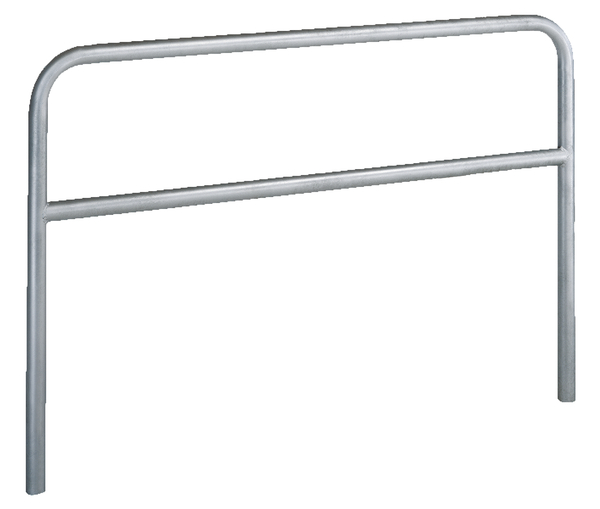

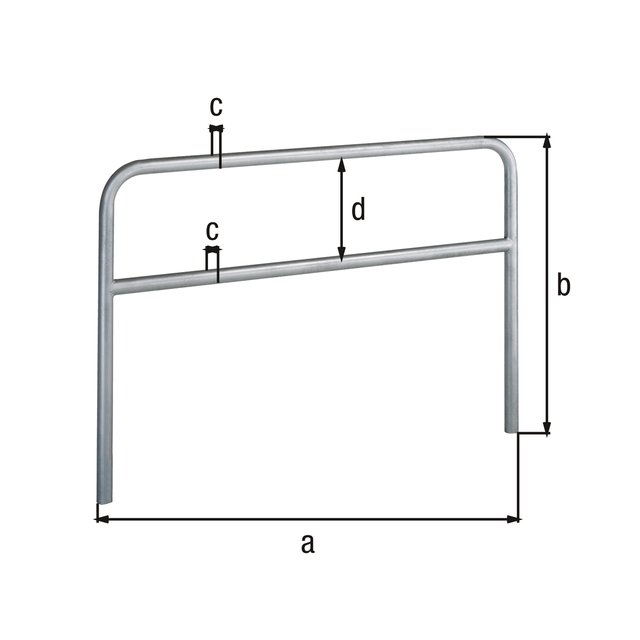

Perimeter barrier Ratio with transverse tubing
Art.-No. 772703
raw steel, hot-dip galvanised passivated, for setting in concrete

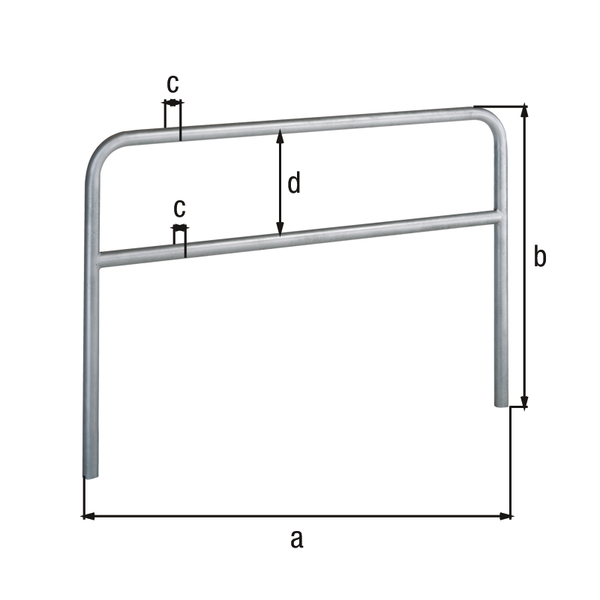

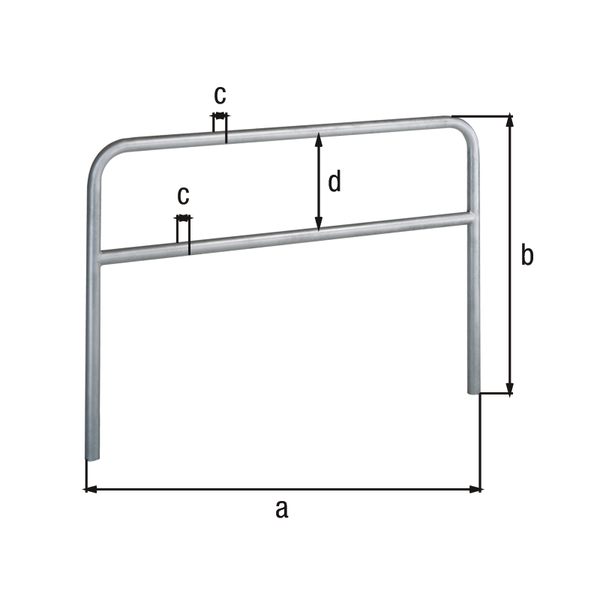

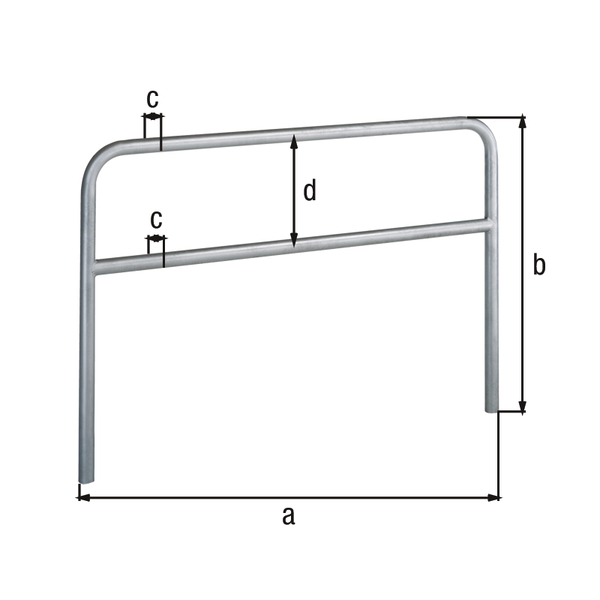

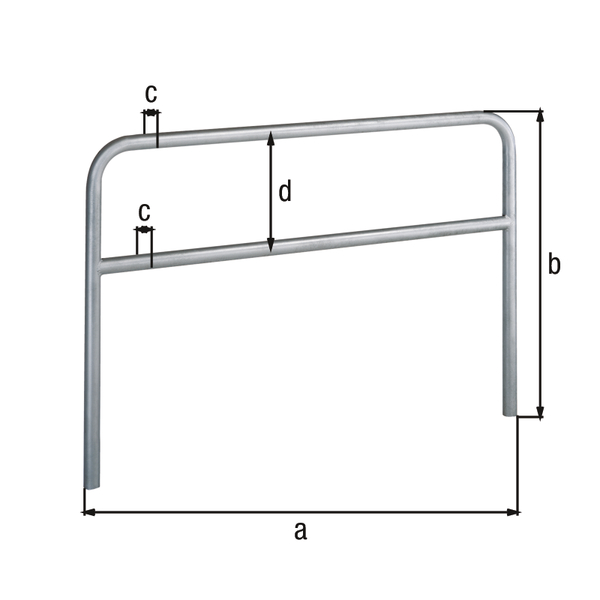

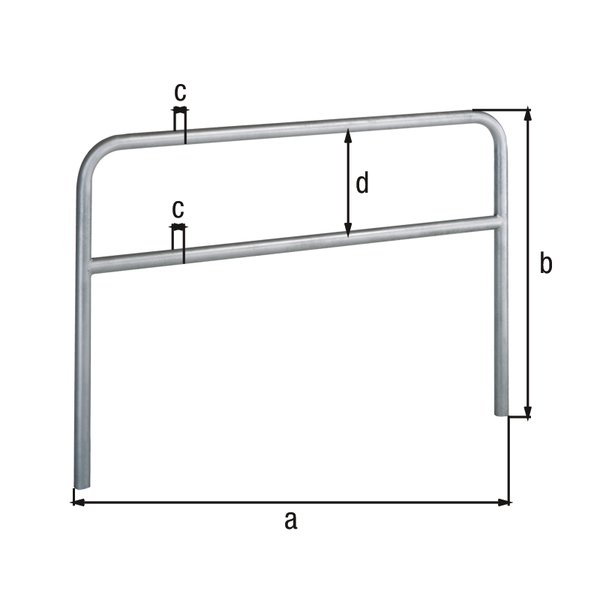

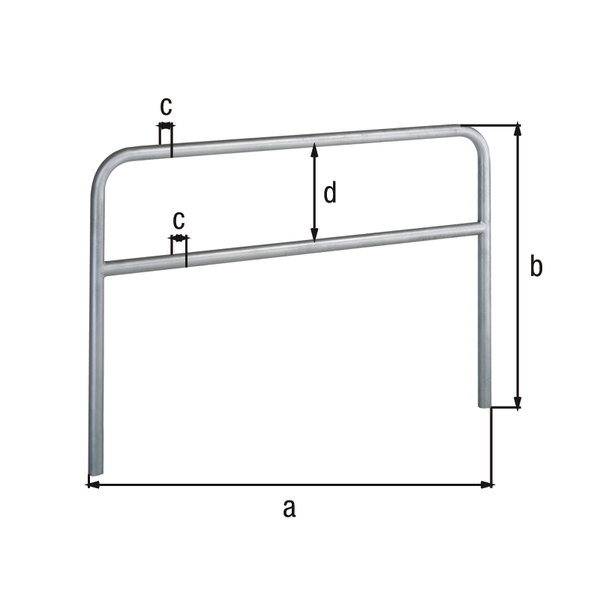

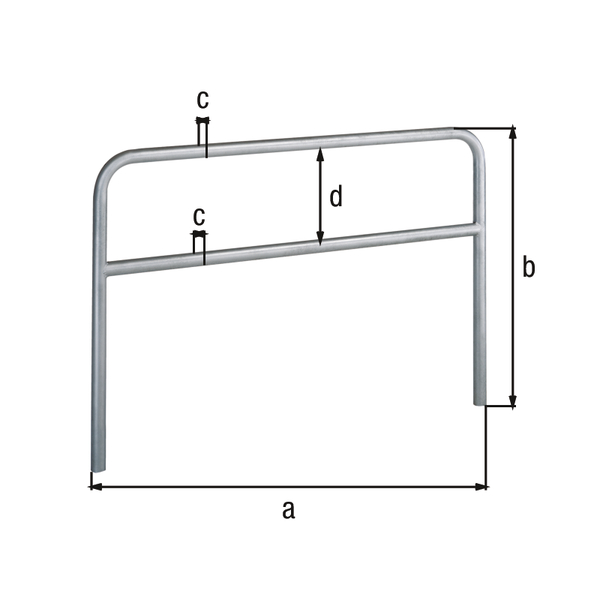

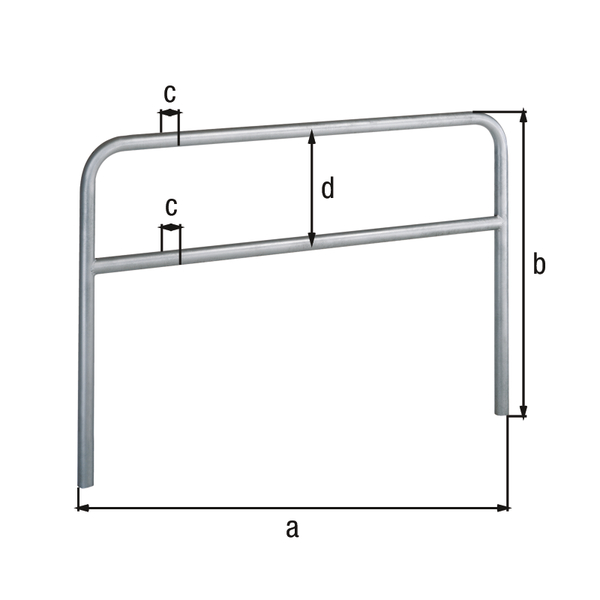

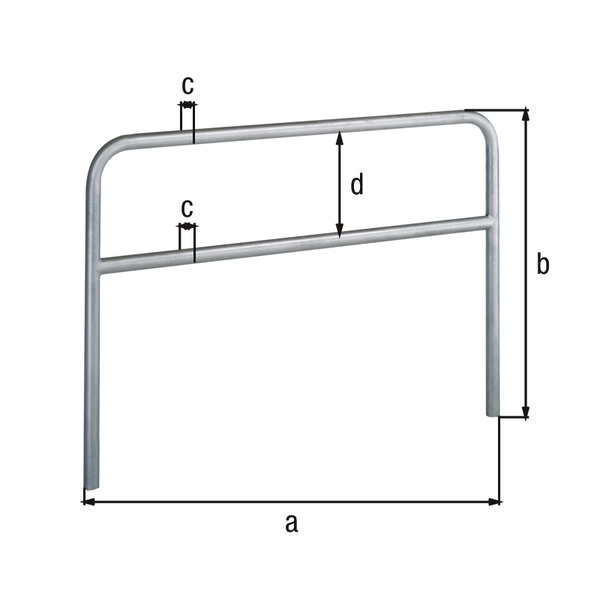

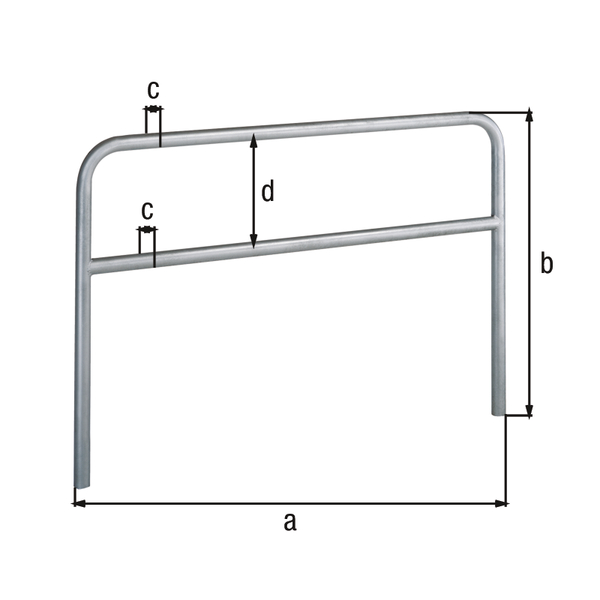

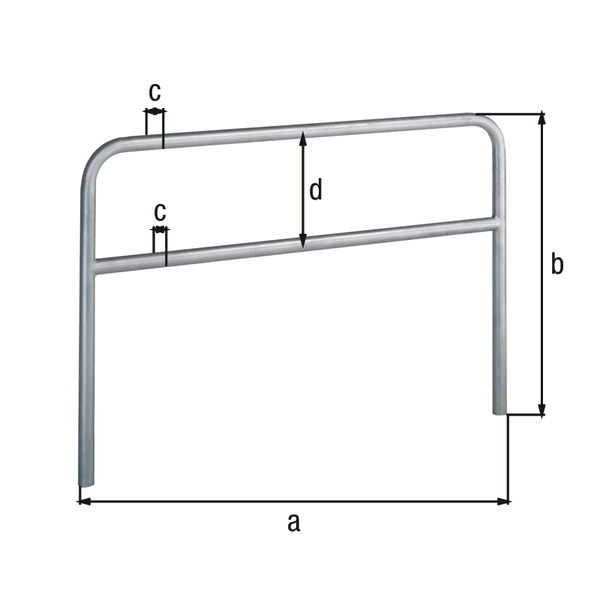

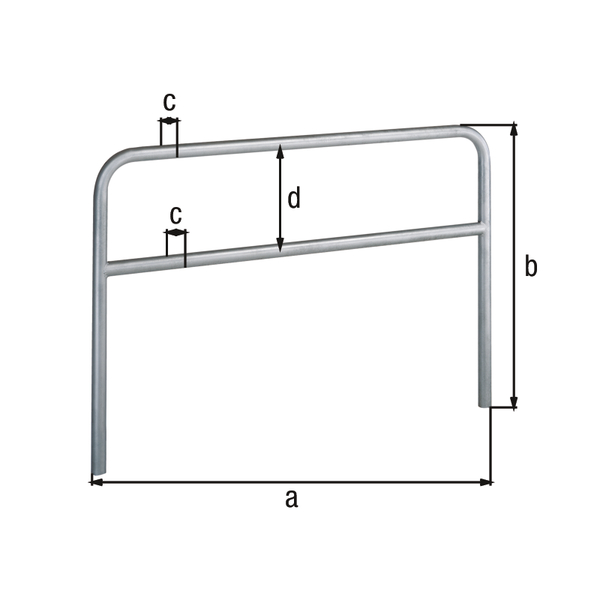

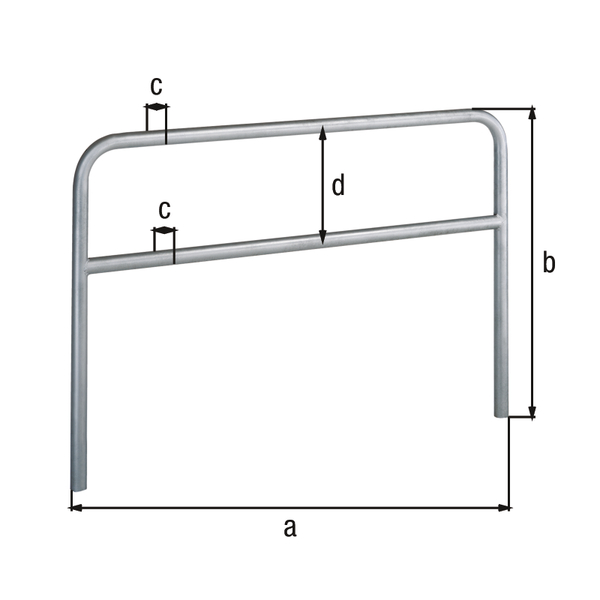

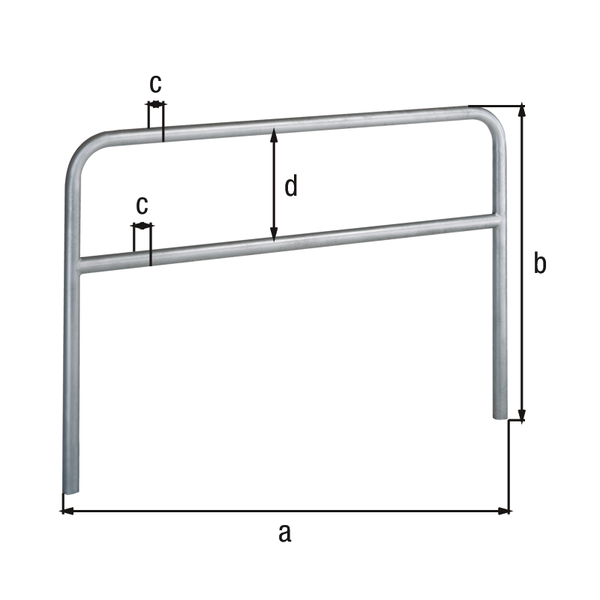

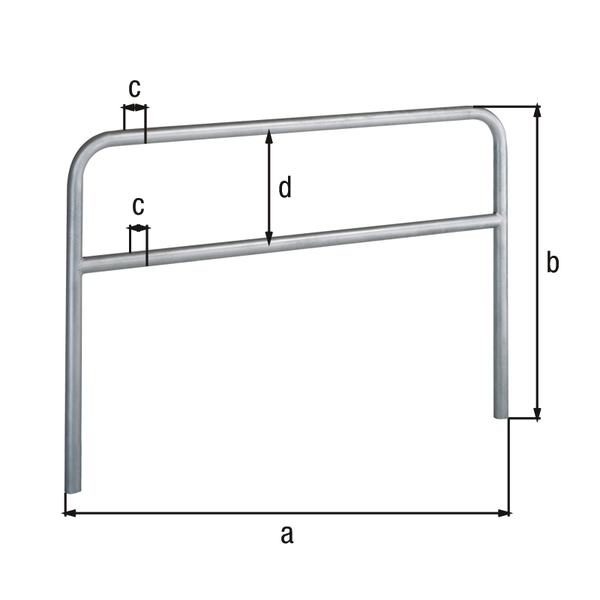

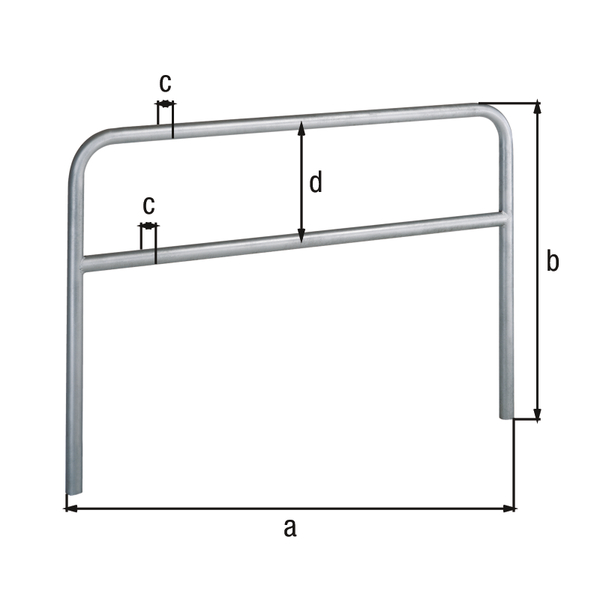

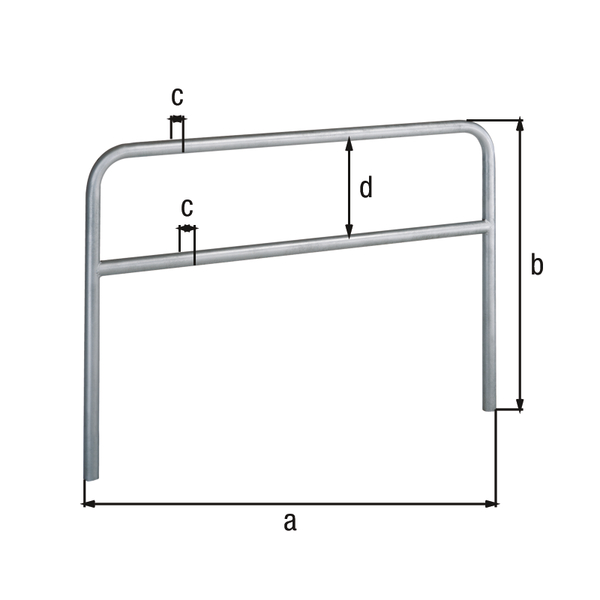

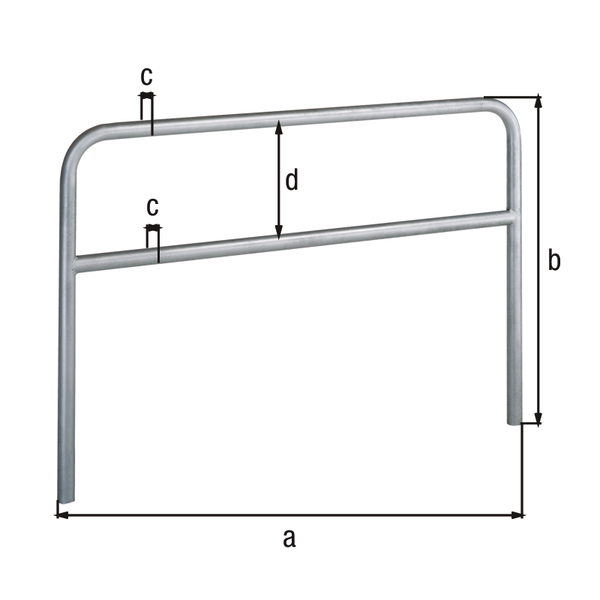

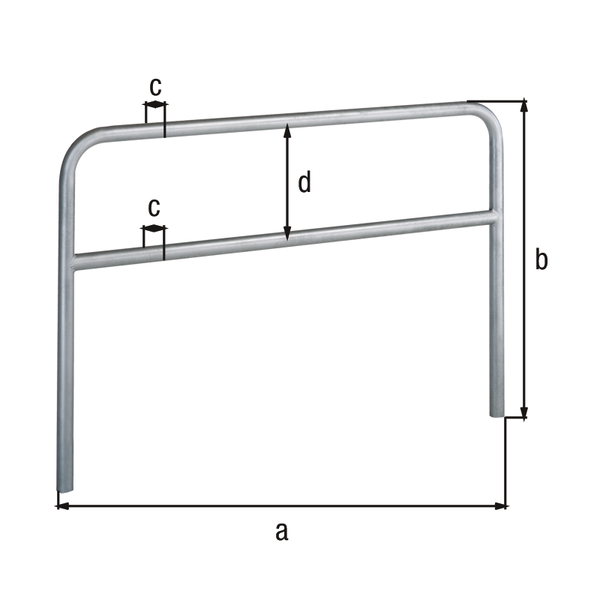

- Dimension a:
- 1000 mm
- Dimension b:
- 800 mm
- Dimension c-Ø:
- 48 mm
- Dimension d:
- 202 mm
- Material/surface:
- raw steel, hot-dip galvanised passivated, for setting in concrete
- Systems:
- RATIO
- Surface / Colour:
- FVZ
- Fastening type:
- for setting in concrete
- Width:
- 1000 mm
- Weight per UQ (kg):
- 6.04 kg
- Contents Unit:
- 1 Piece
Article-No.
Dimension a
Dimension b
Dimension c-Ø
Dimension d
Action
Article-No.
772703
Dimension a
1000 mm
Dimension b
800 mm
Dimension c-Ø
48 mm
Dimension d
202 mm
Article-No.
772710
Dimension a
1500 mm
Dimension b
800 mm
Dimension c-Ø
48 mm
Dimension d
202 mm
Article-No.
772727
Dimension a
2000 mm
Dimension b
800 mm
Dimension c-Ø
48 mm
Dimension d
202 mm
Article-No.
772734
Dimension a
2500 mm
Dimension b
800 mm
Dimension c-Ø
48 mm
Dimension d
202 mm
Article-No.
772741
Dimension a
3000 mm
Dimension b
800 mm
Dimension c-Ø
48 mm
Dimension d
202 mm
Article-No.
772758
Dimension a
1000 mm
Dimension b
1000 mm
Dimension c-Ø
48 mm
Dimension d
302 mm
Article-No.
772765
Dimension a
1500 mm
Dimension b
1000 mm
Dimension c-Ø
48 mm
Dimension d
302 mm
Article-No.
772772
Dimension a
2000 mm
Dimension b
1000 mm
Dimension c-Ø
48 mm
Dimension d
302 mm
Article-No.

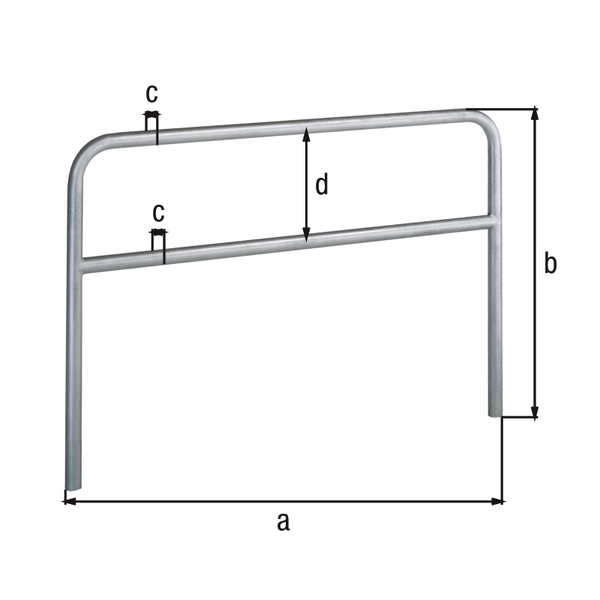

772789
Dimension a
2500 mm
Dimension b
1000 mm
Dimension c-Ø
48 mm
Dimension d
302 mm
Article-No.

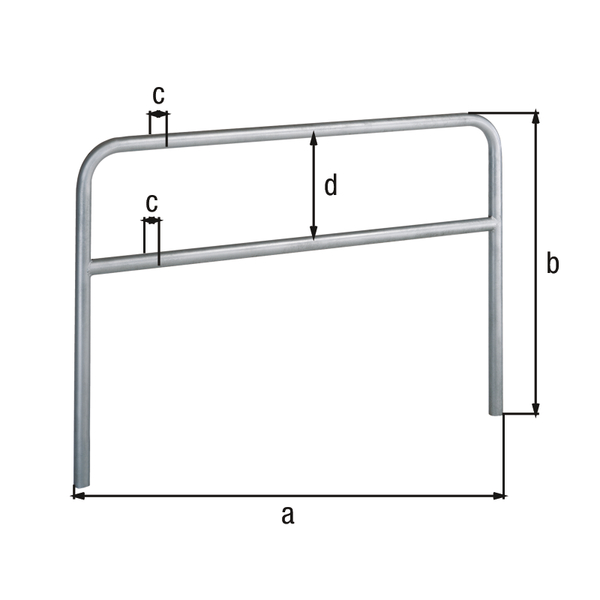

772796
Dimension a
3000 mm
Dimension b
1000 mm
Dimension c-Ø
48 mm
Dimension d
302 mm
Article-No.

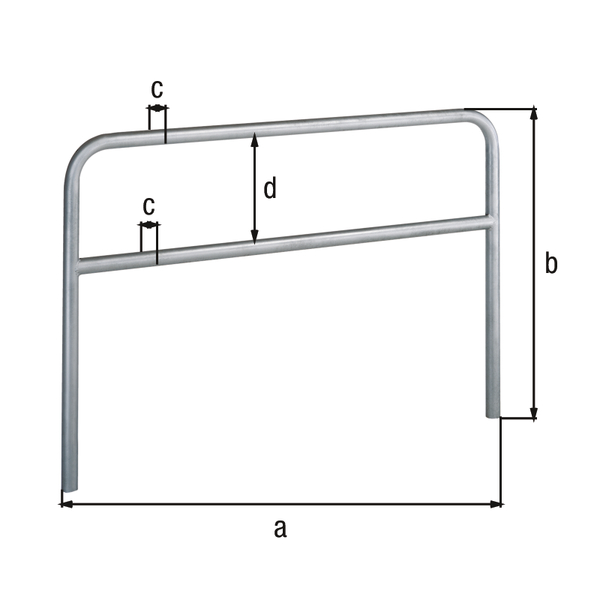

772802
Dimension a
1000 mm
Dimension b
1500 mm
Dimension c-Ø
48 mm
Dimension d
452 mm
Article-No.
772819
Dimension a
1500 mm
Dimension b
1500 mm
Dimension c-Ø
48 mm
Dimension d
452 mm
Article-No.
772826
Dimension a
2000 mm
Dimension b
1500 mm
Dimension c-Ø
48 mm
Dimension d
452 mm
Article-No.
772833
Dimension a
2500 mm
Dimension b
1500 mm
Dimension c-Ø
48 mm
Dimension d
452 mm
Article-No.

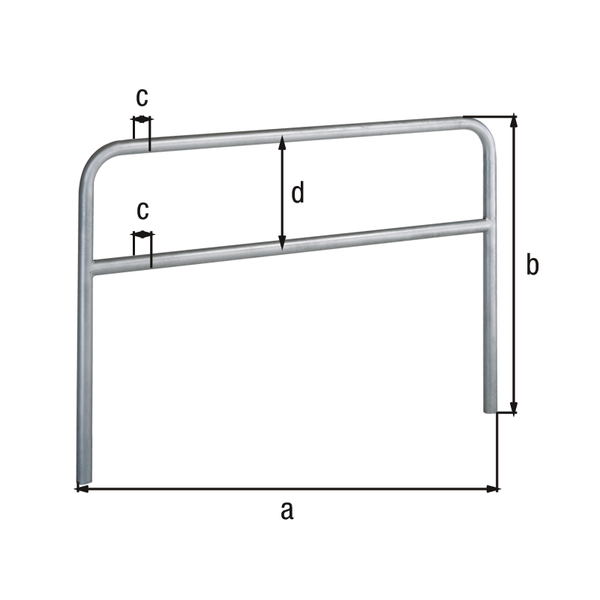

772840
Dimension a
3000 mm
Dimension b
1500 mm
Dimension c-Ø
48 mm
Dimension d
452 mm
Article-No.

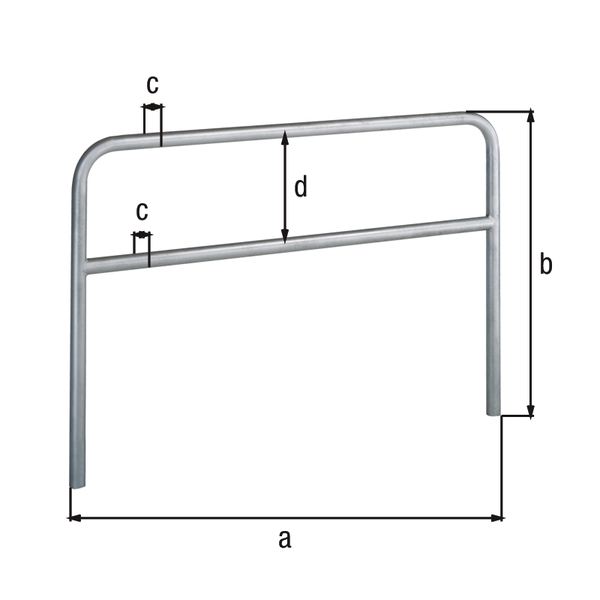

773304
Dimension a
1000 mm
Dimension b
800 mm
Dimension c-Ø
60 mm
Dimension d
190 mm
Article-No.
773311
Dimension a
1500 mm
Dimension b
800 mm
Dimension c-Ø
60 mm
Dimension d
190 mm
Article-No.
773328
Dimension a
2000 mm
Dimension b
800 mm
Dimension c-Ø
60 mm
Dimension d
190 mm
Article-No.
773335
Dimension a
2500 mm
Dimension b
800 mm
Dimension c-Ø
60 mm
Dimension d
190 mm
Article-No.
773342
Dimension a
3000 mm
Dimension b
800 mm
Dimension c-Ø
60 mm
Dimension d
190 mm
Article-No.
773359
Dimension a
1000 mm
Dimension b
1000 mm
Dimension c-Ø
60 mm
Dimension d
290 mm
Article-No.

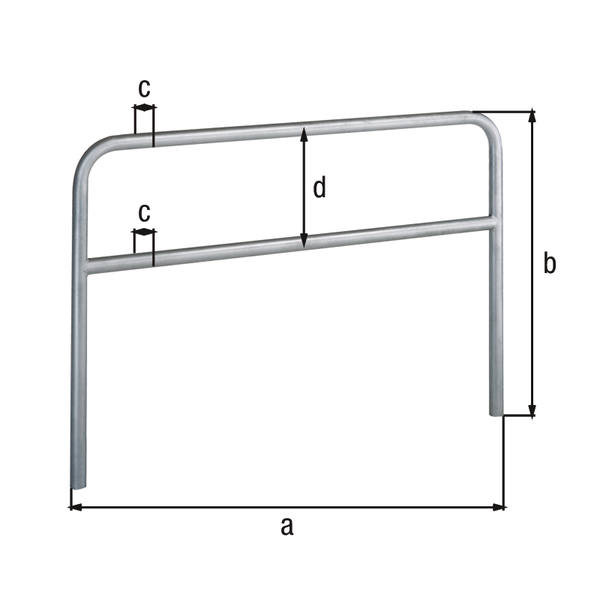

773366
Dimension a
1500 mm
Dimension b
1000 mm
Dimension c-Ø
60 mm
Dimension d
290 mm
Article-No.
773373
Dimension a
2000 mm
Dimension b
1000 mm
Dimension c-Ø
60 mm
Dimension d
290 mm
Article-No.
773380
Dimension a
2500 mm
Dimension b
1000 mm
Dimension c-Ø
60 mm
Dimension d
290 mm
Article-No.

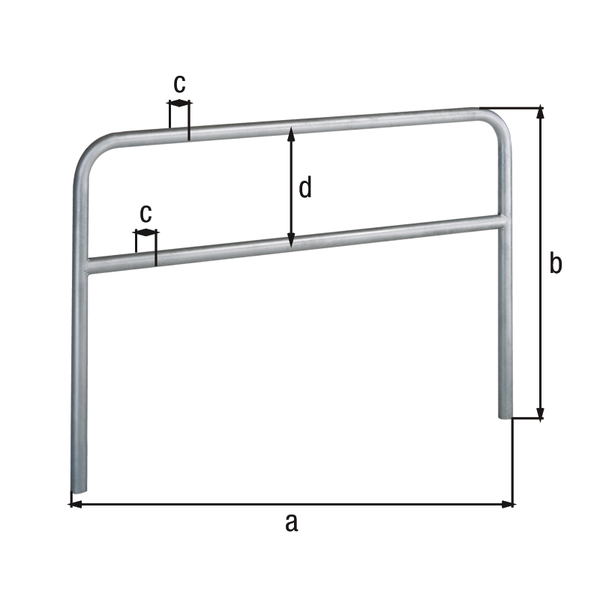

773397
Dimension a
3000 mm
Dimension b
1000 mm
Dimension c-Ø
60 mm
Dimension d
290 mm
Article-No.
786809
Dimension a
1200 mm
Dimension b
1200 mm
Dimension c-Ø
60 mm
Dimension d
400 mm
Article-No.

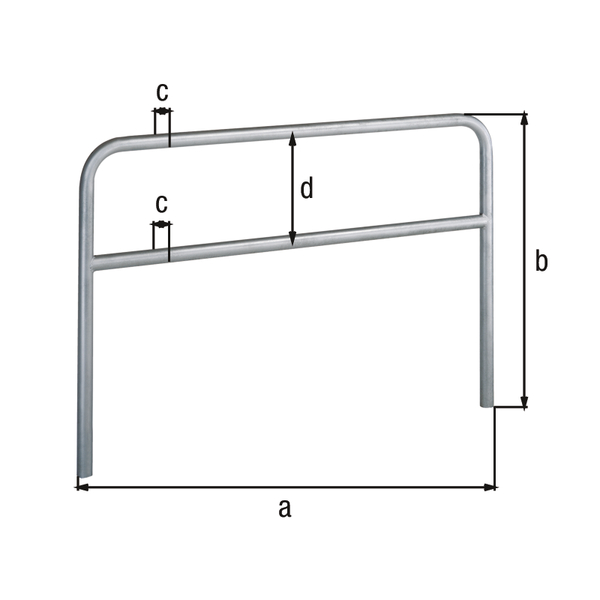

773403
Dimension a
1000 mm
Dimension b
1500 mm
Dimension c-Ø
60 mm
Dimension d
440 mm
Article-No.
773410
Dimension a
1500 mm
Dimension b
1500 mm
Dimension c-Ø
60 mm
Dimension d
440 mm
Article-No.
773427
Dimension a
2000 mm
Dimension b
1500 mm
Dimension c-Ø
60 mm
Dimension d
440 mm
Article-No.
773434
Dimension a
2500 mm
Dimension b
1500 mm
Dimension c-Ø
60 mm
Dimension d
440 mm
Article-No.
773441
Dimension a
3000 mm
Dimension b
1500 mm
Dimension c-Ø
60 mm
Dimension d
440 mm
- for trees, park areas etc.
- Please note that not all dimensions are stocked up as in-stock products.
- Protects the pavement, centre strip and grassy areas against cars
- Plastic coatings in all RAL colours
- Perimeter barrier for setting in concrete, removable with triangle lock
- Perimeter barrier for screwing on
