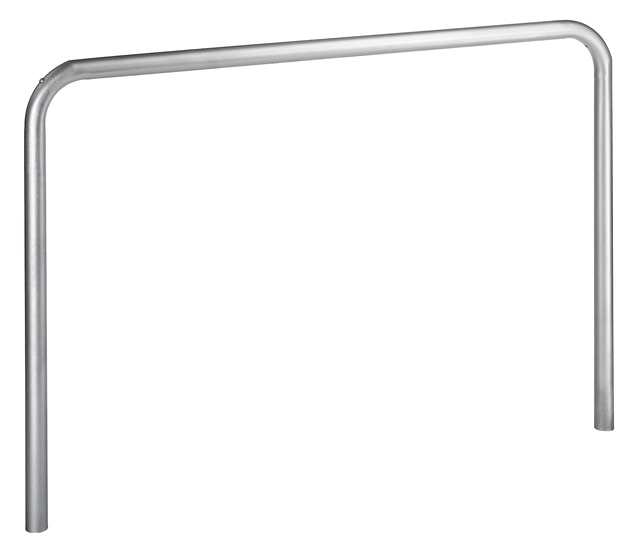

Perimeter barrier Ratio

Art.-No. 773212

raw steel, hot-dip galvanised passivated, for setting in concrete

30 Variants
Dimension a:
1500 mm
Dimension b:
1000 mm
Dimension c-Ø:
60 mm
Material/surface:
raw steel, hot-dip galvanised passivated, for setting in concrete
Systems:
RATIO
Surface / Colour:
FVZ
Fastening type:
for setting in concrete
Width:
1500 mm
Weight per UQ (kg):
9.725 kg
Contents Unit:
1 Piece
Article-No.
Dimension a
Dimension b
Dimension c-Ø
Material/surface
Action
Article-No. 772550
Dimension a 1000 mm
Dimension b 800 mm
Dimension c-Ø 48 mm
Material/surface raw steel, hot-dip galvanised passivated, for setting in concrete
Article-No. 772567
Dimension a 1500 mm
Dimension b 800 mm
Dimension c-Ø 48 mm
Material/surface raw steel, hot-dip galvanised passivated, for setting in concrete
Article-No. 772574
Dimension a 2000 mm
Dimension b 800 mm
Dimension c-Ø 48 mm
Material/surface raw steel, hot-dip galvanised passivated, for setting in concrete
Article-No. 772581
Dimension a 2500 mm
Dimension b 800 mm
Dimension c-Ø 48 mm
Material/surface raw steel, hot-dip galvanised passivated, for setting in concrete
Article-No. 772598
Dimension a 3000 mm
Dimension b 800 mm
Dimension c-Ø 48 mm
Material/surface raw steel, hot-dip galvanised passivated, for setting in concrete
Article-No. 772604
Dimension a 1000 mm
Dimension b 1000 mm
Dimension c-Ø 48 mm
Material/surface raw steel, hot-dip galvanised passivated, for setting in concrete
Article-No. 772611
Dimension a 1500 mm
Dimension b 1000 mm
Dimension c-Ø 48 mm
Material/surface raw steel, hot-dip galvanised passivated, for setting in concrete
Article-No. 772628
Dimension a 2000 mm
Dimension b 1000 mm
Dimension c-Ø 48 mm
Material/surface raw steel, hot-dip galvanised passivated, for setting in concrete
Article-No. 772635
Dimension a 2500 mm
Dimension b 1000 mm
Dimension c-Ø 48 mm
Material/surface raw steel, hot-dip galvanised passivated, for setting in concrete
Article-No. 772642
Dimension a 3000 mm
Dimension b 1000 mm
Dimension c-Ø 48 mm
Material/surface raw steel, hot-dip galvanised passivated, for setting in concrete
Article-No. 772659
Dimension a 1000 mm
Dimension b 1500 mm
Dimension c-Ø 48 mm
Material/surface raw steel, hot-dip galvanised passivated, for setting in concrete
Article-No. 772666
Dimension a 1500 mm
Dimension b 1500 mm
Dimension c-Ø 48 mm
Material/surface raw steel, hot-dip galvanised passivated, for setting in concrete
Article-No. 772673
Dimension a 2000 mm
Dimension b 1500 mm
Dimension c-Ø 48 mm
Material/surface raw steel, hot-dip galvanised passivated, for setting in concrete
Article-No. 772680
Dimension a 2500 mm
Dimension b 1500 mm
Dimension c-Ø 48 mm
Material/surface raw steel, hot-dip galvanised passivated, for setting in concrete
Article-No. 772697
Dimension a 3000 mm
Dimension b 1500 mm
Dimension c-Ø 48 mm
Material/surface raw steel, hot-dip galvanised passivated, for setting in concrete
Article-No. 773151
Dimension a 1000 mm
Dimension b 800 mm
Dimension c-Ø 60 mm
Material/surface raw steel, hot-dip galvanised passivated, for setting in concrete
Article-No. 773168
Dimension a 1500 mm
Dimension b 800 mm
Dimension c-Ø 60 mm
Material/surface raw steel, hot-dip galvanised passivated, for setting in concrete
Article-No. 773175
Dimension a 2000 mm
Dimension b 800 mm
Dimension c-Ø 60 mm
Material/surface raw steel, hot-dip galvanised passivated, for setting in concrete
Article-No. 773182
Dimension a 2500 mm
Dimension b 800 mm
Dimension c-Ø 60 mm
Material/surface raw steel, hot-dip galvanised passivated, for setting in concrete
Article-No. 773199
Dimension a 3000 mm
Dimension b 800 mm
Dimension c-Ø 60 mm
Material/surface raw steel, hot-dip galvanised passivated, for setting in concrete
Article-No. 773205
Dimension a 1000 mm
Dimension b 1000 mm
Dimension c-Ø 60 mm
Material/surface raw steel, hot-dip galvanised passivated, for setting in concrete
Article-No. 773212
Dimension a 1500 mm
Dimension b 1000 mm
Dimension c-Ø 60 mm
Material/surface raw steel, hot-dip galvanised passivated, for setting in concrete
Article-No. 773229
Dimension a 2000 mm
Dimension b 1000 mm
Dimension c-Ø 60 mm
Material/surface raw steel, hot-dip galvanised passivated, for setting in concrete
Article-No. 773236
Dimension a 2500 mm
Dimension b 1000 mm
Dimension c-Ø 60 mm
Material/surface raw steel, hot-dip galvanised passivated, for setting in concrete
Article-No. 773243
Dimension a 3000 mm
Dimension b 1000 mm
Dimension c-Ø 60 mm
Material/surface raw steel, hot-dip galvanised passivated, for setting in concrete
Article-No. 773250
Dimension a 1000 mm
Dimension b 1500 mm
Dimension c-Ø 60 mm
Material/surface raw steel, hot-dip galvanised passivated, for setting in concrete
Article-No. 773267
Dimension a 1500 mm
Dimension b 1500 mm
Dimension c-Ø 60 mm
Material/surface raw steel, hot-dip galvanised passivated, for setting in concrete
Article-No. 773274
Dimension a 2000 mm
Dimension b 1500 mm
Dimension c-Ø 60 mm
Material/surface raw steel, hot-dip galvanised passivated, for setting in concrete
Article-No. 773281
Dimension a 2500 mm
Dimension b 1500 mm
Dimension c-Ø 60 mm
Material/surface raw steel, hot-dip galvanised passivated, for setting in concrete
Article-No. 773298
Dimension a 3000 mm
Dimension b 1500 mm
Dimension c-Ø 60 mm
Material/surface raw steel, hot-dip galvanised passivated, for setting in concrete
  • for trees, park areas etc.
  • Please note that not all dimensions are stocked up as in-stock products.

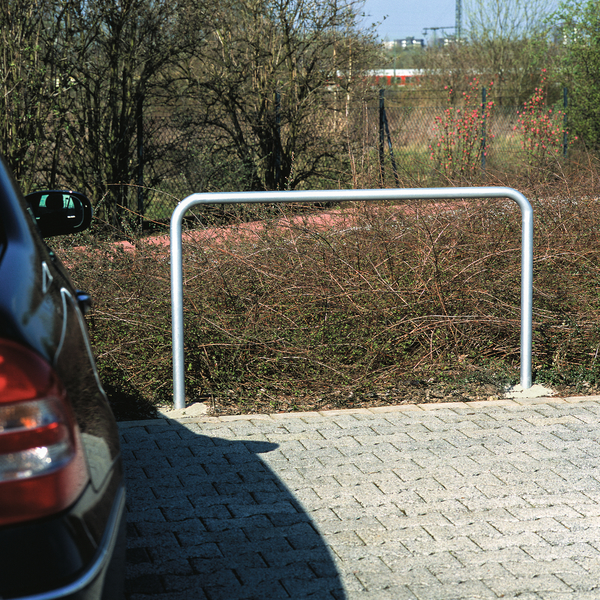

  • Protects the pavement, centre strip and grassy areas against cars
  • Plastic coatings in all RAL colours
  • Perimeter barrier for setting in concrete, removable with triangle lock
  • Perimeter barrier for screwing on
