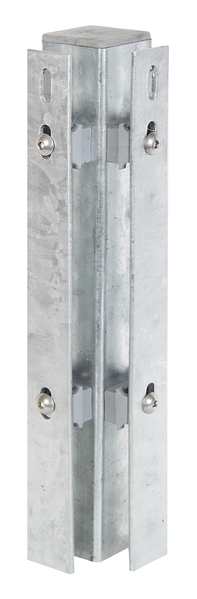

Corner post incl. flat iron, drilling distance 400 mm
the flat iron supplied with the order in a separate parcel
Art.-No. 970369
- Length:
- 2800 mm
- For mat height:
- 2200 mm
- Post thickness:
- 60 x 60 mm
- Flat iron:
- 40 x 4 mm
- Fastening type:
- for setting in concrete
- :
- 15 years
- Material/surface:
- raw steel, hot-dip galvanised, for setting in concrete
- Systems:
- PF,DSM
- Surface / Colour:
- FVZ
- Weight per UQ (kg):
- 17.600 kg
- Contents Unit:
- 1 Piece
Article-No.
Length
For mat height
Post thickness
Flat iron
Action
Article-No.
970284
Length
1000 mm
For mat height
600 mm
Post thickness
60 x 60 mm
Flat iron
40 x 4 mm
Article-No.
970291
Length
1200 mm
For mat height
800 mm
Post thickness
60 x 60 mm
Flat iron
40 x 4 mm
Article-No.
970307
Length
1500 mm
For mat height
1000 mm
Post thickness
60 x 60 mm
Flat iron
40 x 4 mm
Article-No.
970314
Length
1750 mm
For mat height
1200 mm
Post thickness
60 x 60 mm
Flat iron
40 x 4 mm
Article-No.
970321
Length
2000 mm
For mat height
1400 mm
Post thickness
60 x 60 mm
Flat iron
40 x 4 mm
Article-No.
970338
Length
2250 mm
For mat height
1600 mm
Post thickness
60 x 60 mm
Flat iron
40 x 4 mm
Article-No.
970345
Length
2400 mm
For mat height
1800 mm
Post thickness
60 x 60 mm
Flat iron
40 x 4 mm
Article-No.
970352
Length
2600 mm
For mat height
2000 mm
Post thickness
60 x 60 mm
Flat iron
40 x 4 mm
Article-No.
970369
Length
2800 mm
For mat height
2200 mm
Post thickness
60 x 60 mm
Flat iron
40 x 4 mm
Article-No.
970376
Length
3000 mm
For mat height
2400 mm
Post thickness
60 x 60 mm
Flat iron
40 x 4 mm
- If it is required to screw on to the posts, then a post support must be used.
- Mounted trestles and attached plastic post caps, flat iron, and pan-head screws with 5.5 mm safety hexagon sockets included.
- Allen keys not included. Order separately under article no. 657048.
- Individual drilling patterns.
