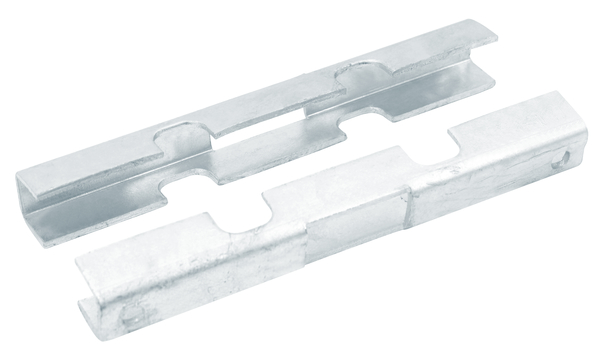

Panel connector for double bar grating panels
Art.-No. 672928
- Item description:
- –
- Screw length:
- 30 mm
- Screw:
- M8
- Length:
- 140 mm
- Width:
- 18 mm
- Height:
- 15.5 mm
- :
- 15 years
- Material/surface:
- raw steel, hot-dip galvanised
- Systems:
- ZUBKI
- Surface / Colour:
- VERZ
- Type:
- two parts
- Weight per UQ (kg):
- 0.180 kg
- Contents Unit:
- 1 Piece
Article-No.
Item description
Screw length
Screw
Length
Action
Article-No.
673239
Item description
–
Screw length
80 mm
Screw
M8
Length
140 mm
Article-No.
672928
Item description
–
Screw length
30 mm
Screw
M8
Length
140 mm
Article-No.
672874
Item description
–
Screw length
30 mm
Screw
M10
Length
140 mm
- U shaped

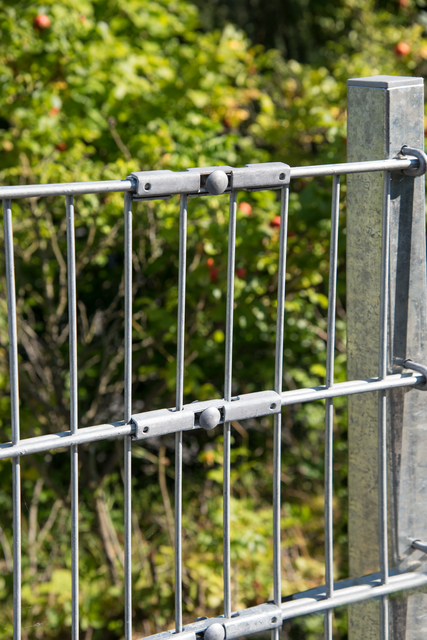

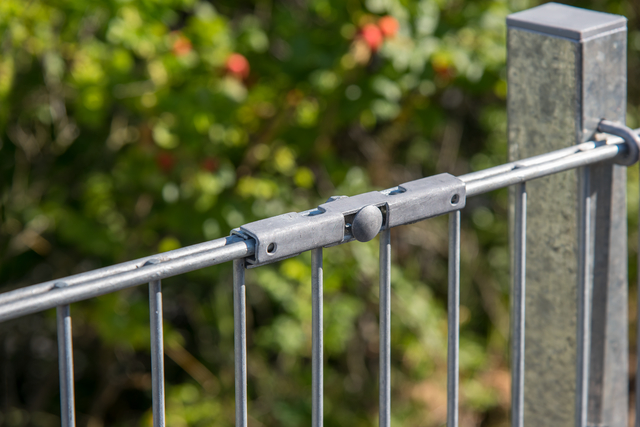

- Stable connection of panels to fence posts with drill holes (e.g. no. 684990 ff.)
- Stable connection of two-part panels when connecting them together without additional posts.
- Stainless steel screws
- Please use screw thickness M8 for connecting double bar grating panel type 6/5/6, whereas screw thickness M10 is used for connecting type 8/6/8.
- Delivery includes screw, nut and washer, stainless steel
- Plastic coatings in all RAL colours
