• Ground screw for tube posts, Material: raw steel, Surface: hot-dip galvanised, Total length: 570 mm, Total length without inserts: 550 mm, Screw-in depth: 510 mm, 15-year warranty against rusting through
  • Ground screw for tube posts, Material: raw steel, Surface: hot-dip galvanised, Total length: 570 mm, Total length without inserts: 550 mm, Screw-in depth: 510 mm, 15-year warranty against rusting through

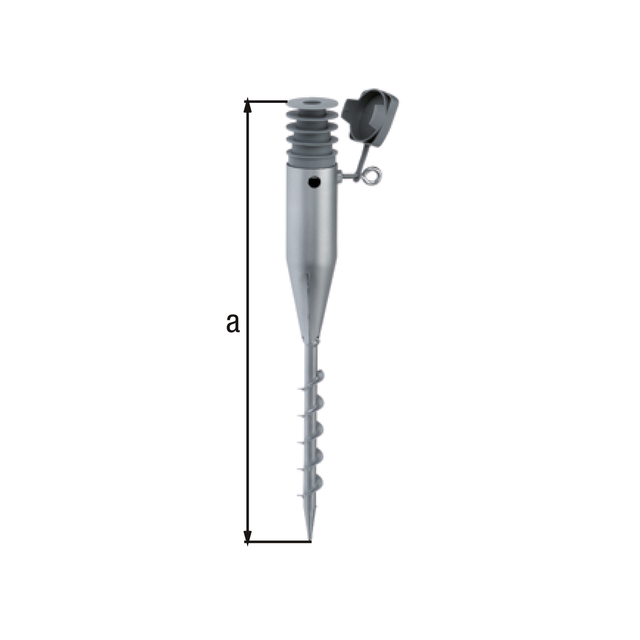

Ground screw for tube posts

Art.-No. 610227

raw steel, hot-dip galvanised

Dimension a:
570 mm
Total length without inserts:
550 mm
Screw-in depth:
510 mm
Fastening type:
ZEINSCHR
:
15 years
Material/surface:
raw steel, hot-dip galvanised
Surface / Colour:
FVZ
:
570 mm
Weight per UQ (kg):
1.540 kg
Contents Unit:
1 Piece
  • For quick and easy assembly of warning signs, rotary washing lines, flagpoles, etc.
  • Able to be used with up to five plastic reducing sleeves: Without reducing sleeve: For Ø 60 to 65 mm tubing, with the first reducing sleeve: For Ø 55 mm tubing, with the second reducing sleeve: For Ø 50 mm tubing, with the third reducing sleeve: For Ø 40 mm tubing to 42 mm, with the fourth reducing sleeve: For Ø38 mm tubing, with the fifth reducing sleeve: For Ø25 mm tubing
  • Reducing sleeves, covering cap, and wing screw included.
