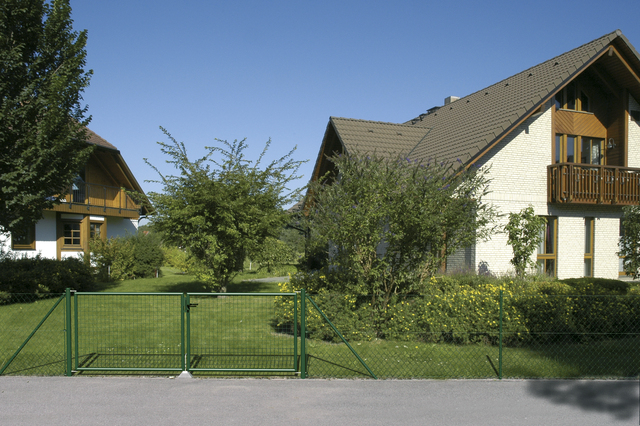

Welded mesh single gate
Art.-No. 650223
- Nominal width:
- 1250 mm
- Height:
- 1250 mm
- Clear width:
- 1190 mm
- Width from middle to middle of post:
- 1250 mm
- Frame width:
- 1130 mm
- Post length:
- 1750 mm
- Post dia.:
- 60 mm
- Frame thickness Ø:
- 42 mm
- Filler material:
- 50 x 50 x 4 mm
- Fastening type:
- for setting in concrete
- Opening:
- 90 °
- :
- 10 years
- Material/surface:
- raw steel, zinc phosphate plated, green powder-coated RAL 6005, for setting in concrete
- Systems:
- Fix-Clip Pro®,WGTO
- Surface / Colour:
- GRUEN
- Weight per UQ (kg):
- 25.000 kg
- Contents Unit:
- 1 Piece
Article-No.
Nominal width
Height
Clear width
Width from middle to middle of post
Action
Article-No.
600037
Nominal width
1000 mm
Height
750 mm
Clear width
940 mm
Width from middle to middle of post
1000 mm
Article-No.
600136
Nominal width
1000 mm
Height
1000 mm
Clear width
940 mm
Width from middle to middle of post
1000 mm
Article-No.
600204
Nominal width
1000 mm
Height
1250 mm
Clear width
940 mm
Width from middle to middle of post
1000 mm
Article-No.
600303
Nominal width
1000 mm
Height
1500 mm
Clear width
940 mm
Width from middle to middle of post
1000 mm
Article-No.
600358
Nominal width
1000 mm
Height
1750 mm
Clear width
960 mm
Width from middle to middle of post
1020 mm
Article-No.
600402
Nominal width
1000 mm
Height
2000 mm
Clear width
960 mm
Width from middle to middle of post
1020 mm
Article-No.
650216
Nominal width
1250 mm
Height
1000 mm
Clear width
1190 mm
Width from middle to middle of post
1250 mm
Article-No.
650223
Nominal width
1250 mm
Height
1250 mm
Clear width
1190 mm
Width from middle to middle of post
1250 mm
Article-No.
650230
Nominal width
1250 mm
Height
1500 mm
Clear width
1190 mm
Width from middle to middle of post
1250 mm
Article-No.
650247
Nominal width
1250 mm
Height
1750 mm
Clear width
1210 mm
Width from middle to middle of post
1270 mm
Article-No.
650254
Nominal width
1250 mm
Height
2000 mm
Clear width
1210 mm
Width from middle to middle of post
1270 mm
Article-No.
601065
Nominal width
1500 mm
Height
1250 mm
Clear width
1440 mm
Width from middle to middle of post
1500 mm
- The specified height matches the frame dimension.
- For gates with heights above 1,500 mm, the gate hinges are welded on, which increases the width.
- A replaceable, galvanised tube frame lock (applicable DIN left and right) with profile cylinder and two keys, door handle, stop, and adjustable hook included.
- Hook and stop post included.
- Custom production
