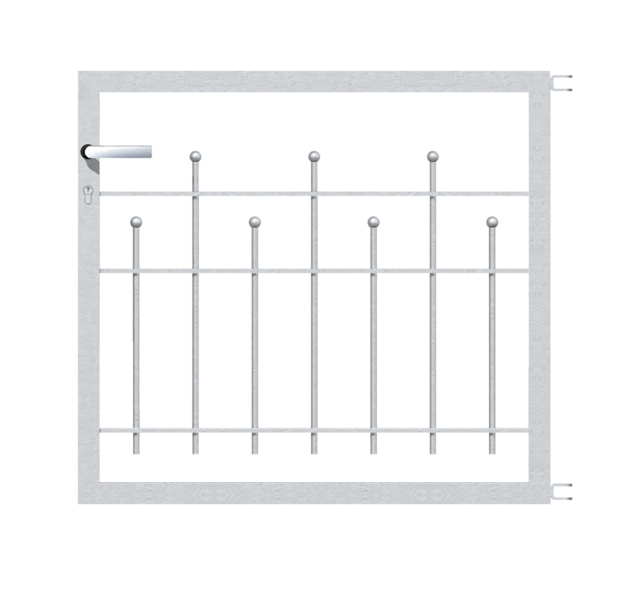

• Single gate Madrid, Material: raw steel, Surface: hot-dip galvanised passivated, for setting in concrete, Nominal width: 1000 mm, Clear width: 1000 mm, Height: 800 mm, Frame width: 910 mm, Frame thickness: 40 x 40 mm, 15-year warranty against rusting through
  • Single gate Madrid, Material: raw steel, Surface: hot-dip galvanised passivated, for setting in concrete, Nominal width: 1000 mm, Clear width: 1000 mm, Height: 800 mm, Frame width: 910 mm, Frame thickness: 40 x 40 mm, 15-year warranty against rusting through

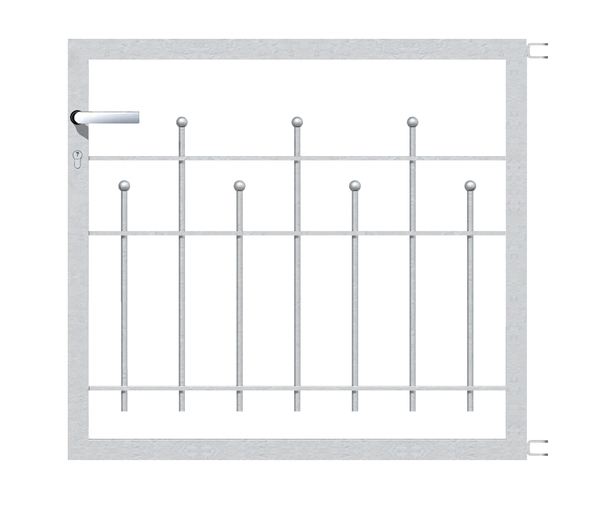

Single gate Madrid

Art.-No. 531201
2 Variants
Nominal width:
1000 mm
Height:
800 mm
Clear width:
1000 mm
Frame width:
910 mm
Frame thickness:
40 x 40 mm
Fastening type:
ZEINB
:
15 years
Material/surface:
raw steel, hot-dip galvanised passivated, for setting in concrete
Systems:
Madrid
Surface / Colour:
FVZ
Weight per UQ (kg):
12.800 kg
Contents Unit:
1 Piece
Article-No.
Nominal width
Height
Clear width
Frame width
Action
Article-No. 531201
Nominal width 1000 mm
Height 800 mm
Clear width 1000 mm
Frame width 910 mm

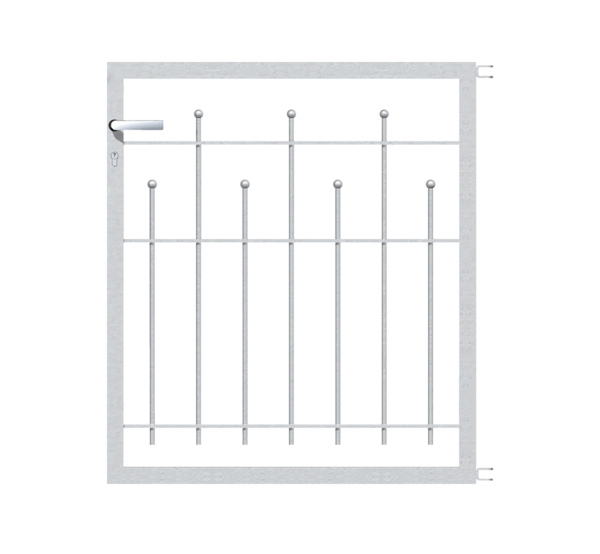

Article-No. 531218
Nominal width 1000 mm
Height 1000 mm
Clear width 1000 mm
Frame width 910 mm
  • The specified height matches the frame dimension.
  • You can find a suitable setup video at www.youtube.com/@alberts1852
  • Lock, profile cylinder and two keys, handle, stop and adjustable hooks included.
  • Posts not included. They can be ordered separately.
  • Custom production
  • Plastic coatings in all RAL colours
