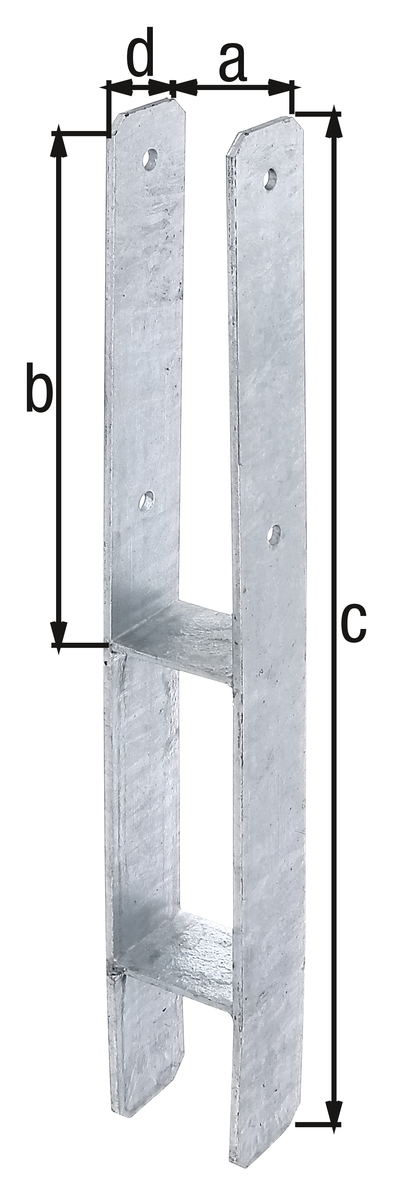

H post support
Art.-No. 213800
raw steel, hot-dip galvanised, for setting in concrete, with CE marking in accordance with ETA-10/0210
- Dimension a:
- 71 mm
- Dimension b:
- 300 mm
- Dimension c:
- 600 mm
- Dimension d:
- 60 mm
- Fastening type:
- ZEINB
- Material thickness:
- 5 mm
- Quantity x hole Ø:
- 4 x Ø11 mm
- Material/surface:
- raw steel, hot-dip galvanised, for setting in concrete, with CE marking in accordance with ETA-10/0210
- Surface / Colour:
- FVZ
- Material:
- Steel
- Approval:
- Europ.techn.app. ETA-10/0210
- :
- 71 mm
- :
- 300 mm
- :
- 60 mm
- :
- 600 mm
- Weight per UQ (kg):
- 2.950 kg
- Contents Unit:
- 1 Piece
Article-No.
Dimension a
Dimension b
Dimension c
Dimension d
Action
Article-No.
213800
Dimension a
71 mm
Dimension b
300 mm
Dimension c
600 mm
Dimension d
60 mm
Article-No.
213817
Dimension a
81 mm
Dimension b
300 mm
Dimension c
600 mm
Dimension d
60 mm
Article-No.
213824
Dimension a
91 mm
Dimension b
300 mm
Dimension c
600 mm
Dimension d
60 mm
Article-No.
203917
Dimension a
101 mm
Dimension b
300 mm
Dimension c
600 mm
Dimension d
60 mm
Article-No.
203924
Dimension a
111 mm
Dimension b
300 mm
Dimension c
600 mm
Dimension d
60 mm
Article-No.
203931
Dimension a
116 mm
Dimension b
300 mm
Dimension c
600 mm
Dimension d
60 mm
Article-No.
203948
Dimension a
121 mm
Dimension b
300 mm
Dimension c
600 mm
Dimension d
60 mm
- Statically suitable for high wooden and privacy fences. Suitable for timber construction and wooden fences as per the standard value table.
- Suitable fasteners can be found in the range “Screws and accessories”.
