H post support
Art.-No. 213626
raw steel, hot-dip galvanised, for setting in concrete, with CE marking in accordance with ETA-10/0210

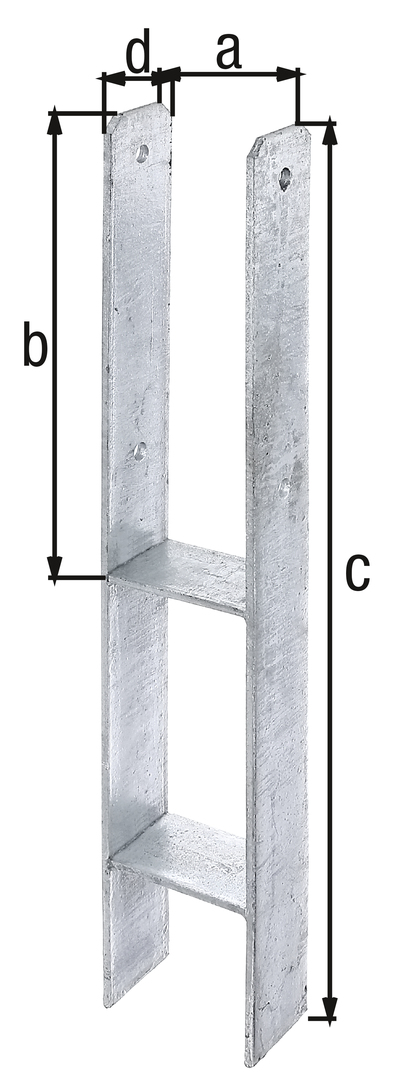

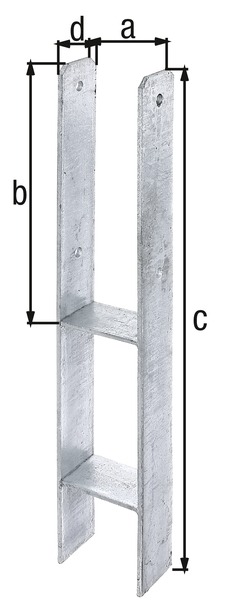

- Dimension a:
- 91 mm
- Dimension b:
- 300 mm
- Dimension c:
- 600 mm
- Dimension d:
- 60 mm
- Fastening type:
- ZEINB
- Material thickness:
- 6 mm
- Quantity x hole Ø:
- 4 x Ø11 mm
- Material/surface:
- raw steel, hot-dip galvanised, for setting in concrete, with CE marking in accordance with ETA-10/0210
- Surface / Colour:
- FVZ
- Material:
- Steel
- Approval:
- Europ.techn.app. ETA-10/0210
- :
- 91 mm
- :
- 300 mm
- :
- 60 mm
- :
- 600 mm
- Weight per UQ (kg):
- 3.880 kg
- Contents Unit:
- 1 Piece
Article-No.
Dimension a
Dimension b
Dimension c
Dimension d
Action
Article-No.
213626
Dimension a
91 mm
Dimension b
300 mm
Dimension c
600 mm
Dimension d
60 mm
Article-No.
213886
Dimension a
95 mm
Dimension b
300 mm
Dimension c
600 mm
Dimension d
60 mm
Article-No.
213831
Dimension a
101 mm
Dimension b
300 mm
Dimension c
600 mm
Dimension d
60 mm
Article-No.
213879
Dimension a
111 mm
Dimension b
300 mm
Dimension c
600 mm
Dimension d
60 mm
Article-No.
213916
Dimension a
116 mm
Dimension b
300 mm
Dimension c
600 mm
Dimension d
60 mm
Article-No.
213848
Dimension a
121 mm
Dimension b
300 mm
Dimension c
600 mm
Dimension d
60 mm
Article-No.
213893
Dimension a
141 mm
Dimension b
300 mm
Dimension c
600 mm
Dimension d
60 mm
Article-No.
219925
Dimension a
91 mm
Dimension b
300 mm
Dimension c
800 mm
Dimension d
60 mm
Article-No.
219949
Dimension a
111 mm
Dimension b
300 mm
Dimension c
800 mm
Dimension d
60 mm
Article-No.
208417
Dimension a
116 mm
Dimension b
300 mm
Dimension c
800 mm
Dimension d
60 mm
Article-No.
208424
Dimension a
121 mm
Dimension b
300 mm
Dimension c
800 mm
Dimension d
60 mm
Article-No.
208431
Dimension a
141 mm
Dimension b
300 mm
Dimension c
800 mm
Dimension d
60 mm
- Statically suitable for carports, high wooden and privacy fences. Suitable for timber construction and wooden fences as per the standard value table.
- Suitable fasteners can be found in the range “Screws and accessories”.
