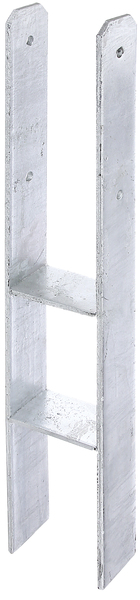

H post support
Art.-No. 208448
raw steel, hot-dip galvanised, for setting in concrete, with CE marking in accordance with ETA-10/0210

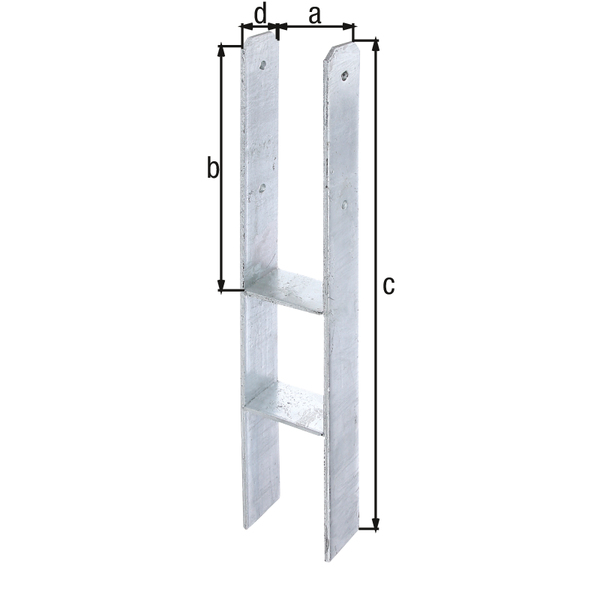

- Dimension a:
- 116 mm
- Dimension b:
- 400 mm
- Dimension c:
- 800 mm
- Dimension d:
- 80 mm
- Fastening type:
- ZEINB
- Material thickness:
- 8 mm
- Quantity x hole Ø:
- 4 x Ø13 mm
- Material/surface:
- raw steel, hot-dip galvanised, for setting in concrete, with CE marking in accordance with ETA-10/0210
- Surface / Colour:
- FVZ
- Material:
- Steel
- Approval:
- Europ.techn.app. ETA-10/0210
- :
- 116 mm
- :
- 400 mm
- :
- 80 mm
- :
- 800 mm
- Weight per UQ (kg):
- 9.950 kg
- Contents Unit:
- 1 Piece
![](https://cb.alberts.de/FOT/ART/V01/FOT_ART_V01_208448_%23SALL_%23AIN_%23V1.1725154317.jpg)
Article-No.
Dimension a
Dimension b
Dimension c
Dimension d
Action
Article-No.
208448
Dimension a
116 mm
Dimension b
400 mm
Dimension c
800 mm
Dimension d
80 mm

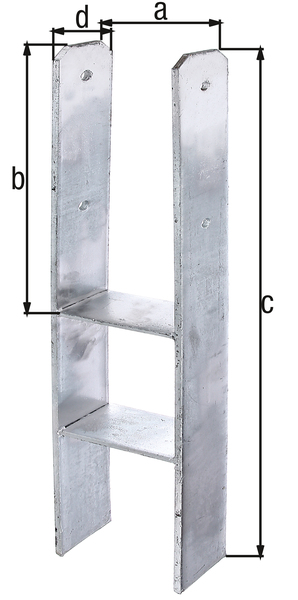

Article-No.
205003
Dimension a
121 mm
Dimension b
400 mm
Dimension c
800 mm
Dimension d
80 mm

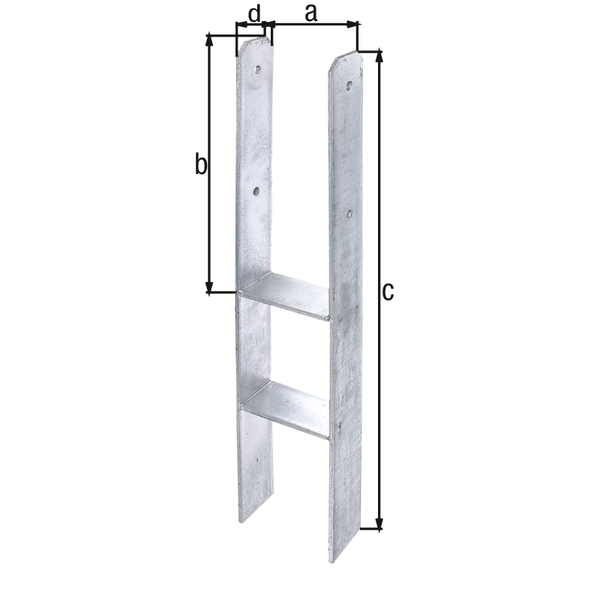

Article-No.
205010
Dimension a
141 mm
Dimension b
400 mm
Dimension c
800 mm
Dimension d
80 mm

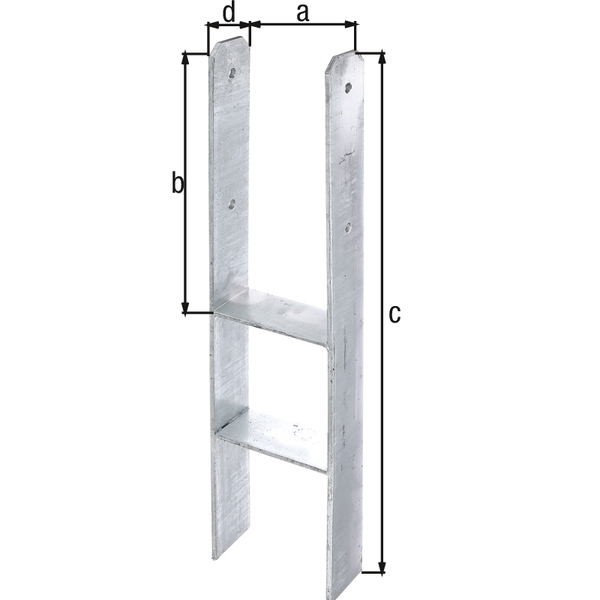

Article-No.
208455
Dimension a
161 mm
Dimension b
400 mm
Dimension c
800 mm
Dimension d
80 mm
- Statically suitable for carports, gate posts, high wodden and privacy fences. Suitable for timber construction and wooden fences as per the standard value table.
- Suitable fasteners can be found in the range “Screws and accessories”.
