• I post support, type: height adjustable, Material: raw steel, Surface: galvanised, thick-film passivated, for screwing on, Plate length at top: 80 mm, Plate length at bottom: 100 mm, Distance from ground: 100 - 230 mm, Height: 340 mm, Thread: M22, No. of holes: 1 / 8, Hole: Ø20 / Ø9 mm
  • I post support, type: height adjustable, Material: raw steel, Surface: galvanised, thick-film passivated, for screwing on, Plate length at top: 80 mm, Plate length at bottom: 100 mm, Distance from ground: 100 - 230 mm, Height: 340 mm, Thread: M22, No. of holes: 1 / 8, Hole: Ø20 / Ø9 mm

I post support

type: height adjustable
Art.-No. 217532

raw steel, galvanised, thick-film passivated, for screwing on

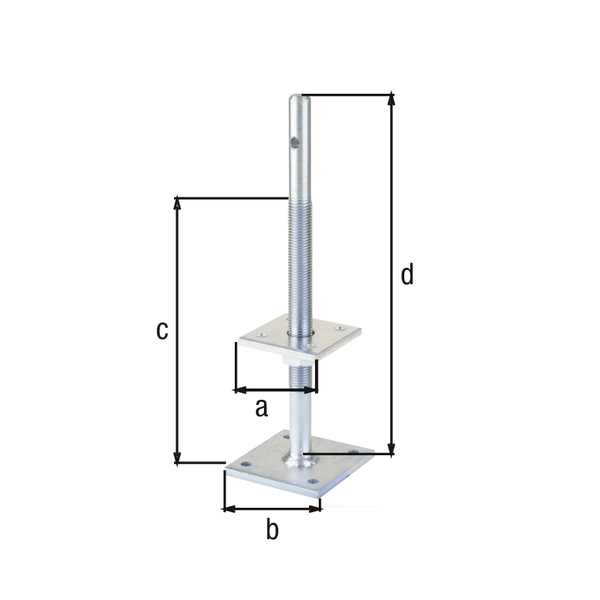

Dimension a:
80 mm
Dimension b:
100 mm
Dimension c:
100 - 230 mm
Dimension d:
340 mm
Thread:
M22
Fastening type:
for screwing on
Quantity x hole Ø:
1 x Ø20 mm
Quantity x hole Ø:
8 x Ø9 mm
Material/surface:
raw steel, galvanised, thick-film passivated, for screwing on
Surface / Colour:
VERZ
Material:
Steel
Height:
340 mm
:
100 - 230 mm
Weight per UQ (kg):
2.000 kg
Contents Unit:
1 Piece
  • Not statically suitable for high wooden and privacy fences.
  • Suitable fasteners can be found in the range “Screws and accessories”.
