• I post support with pin, Material: raw steel, Surface: hot-dip galvanised, for setting in concrete, Pin length: 100 mm, Length of concrete anchor: 200 mm, Plate length: 70 mm, Plate width: 70 mm, Pin-Ø: 16 mm, Plate thickness: 5 mm, Concrete anchor Ø: 16 mm, No. of holes: 4, Hole: Ø11 mm
  • I post support with pin, Material: raw steel, Surface: hot-dip galvanised, for setting in concrete, Pin length: 100 mm, Length of concrete anchor: 200 mm, Plate length: 70 mm, Plate width: 70 mm, Pin-Ø: 16 mm, Plate thickness: 5 mm, Concrete anchor Ø: 16 mm, No. of holes: 4, Hole: Ø11 mm

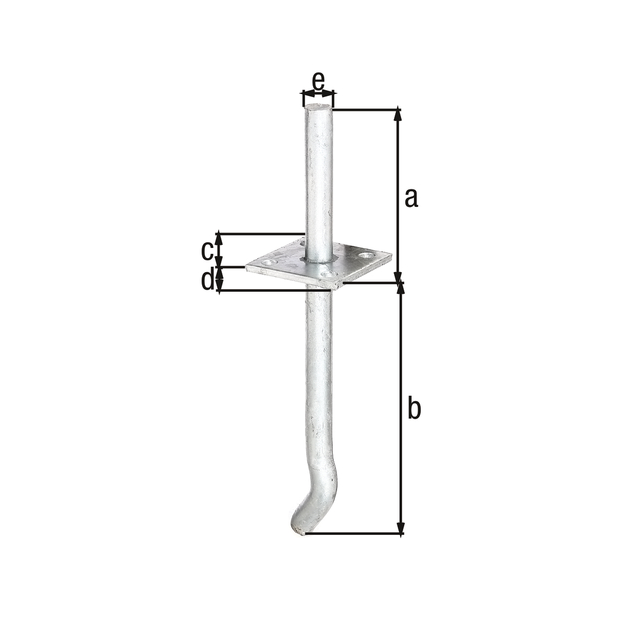

I post support with pin

Art.-No. 215446

raw steel, hot-dip galvanised, for setting in concrete

Dimension a:
100 mm
Dimension b:
200 mm
Dimension c:
70 mm
Dimension d:
70 mm
Dimension e-Ø:
16 mm
Concrete anchor Ø:
16 mm
Fastening type:
for setting in concrete
Plate thickness:
5 mm
Quantity x hole Ø:
4 x Ø11 mm
Material/surface:
raw steel, hot-dip galvanised, for setting in concrete
Surface / Colour:
FVZ
Material:
Steel
Panel width:
70 mm
Length:
100 mm
Panel length:
70 mm
Weight per UQ (kg):
0.650 kg
Contents Unit:
1 Piece
  • Not statically suitable for high wooden and privacy fences.
  • Suitable fasteners can be found in the range “Screws and accessories”.
