• Post support, type: height adjustable, Material: raw steel, Surface: galvanised, thick-film passivated, for screwing on, Plate length at top: 70 mm, Plate length at bottom: 100 mm, Distance from ground: 150 - 190 mm, No. of holes: 8, Hole: Ø11 mm
  • Post support, type: height adjustable, Material: raw steel, Surface: galvanised, thick-film passivated, for screwing on, Plate length at top: 70 mm, Plate length at bottom: 100 mm, Distance from ground: 150 - 190 mm, No. of holes: 8, Hole: Ø11 mm

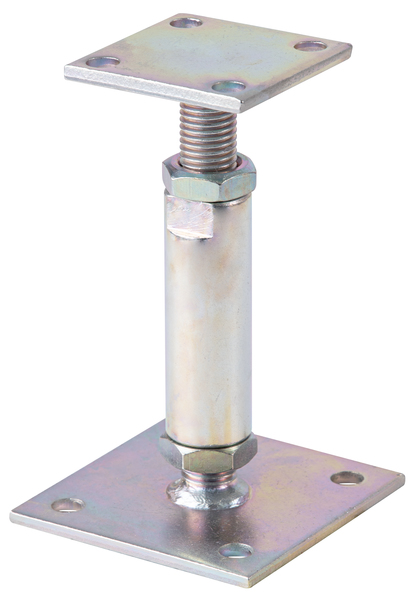

Post support

type: height adjustable
Art.-No. 212391

raw steel, galvanised, thick-film passivated, for screwing on

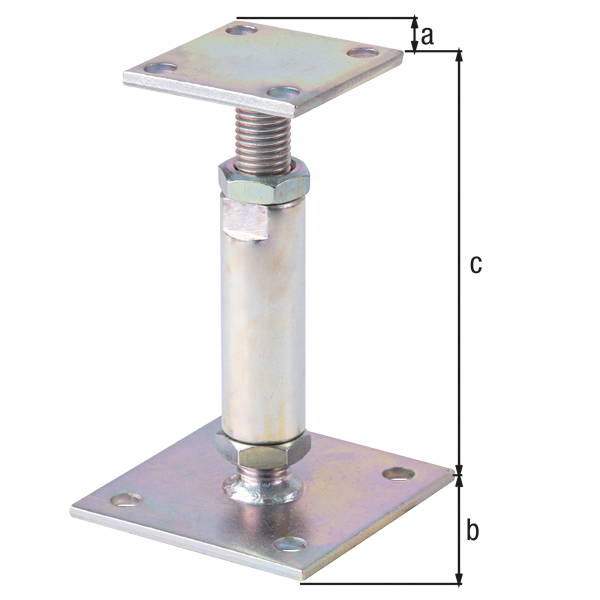

Dimension a:
70 mm
Dimension b:
100 mm
Dimension c:
150 - 190 mm
Fastening type:
for screwing on
Material thickness of upper plate:
6 mm
Material thickness of lower plate:
5 mm
Quantity x hole Ø:
8 x Ø11 mm
Material/surface:
raw steel, galvanised, thick-film passivated, for screwing on
Surface / Colour:
VERZ
Material:
Steel
:
150 - 190 mm
Weight per UQ (kg):
1.160 kg
Contents Unit:
1 Piece
  • The M20 thread allows the height of the ground clearance to be adjusted from 150 to 190 mm while mounted.
  • Suitable fasteners can be found in the range “Screws and accessories”.
