Post support for blind wood attachment

Art.-No. 208028

raw steel, hot-dip galvanised, for setting in concrete, with CE marking in accordance with ETA-10/0210

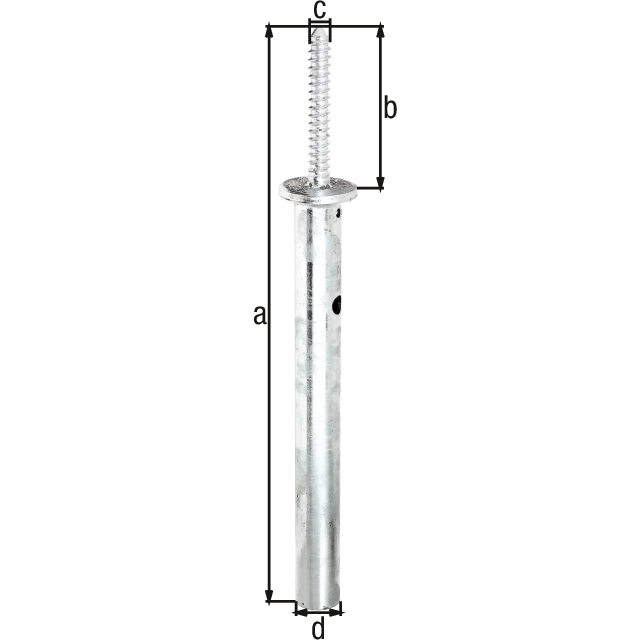

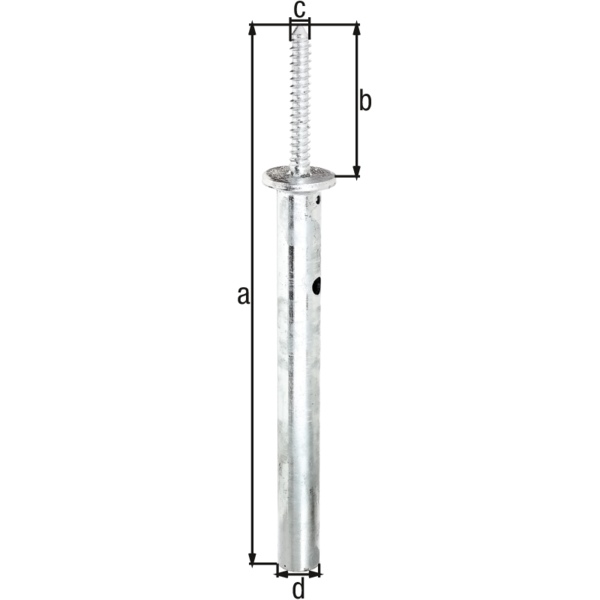

Dimension a:
400 mm
Dimension b:
140 mm
Dimension c-Ø:
42 mm
Dimension d-Ø:
70 mm
Fastening type:
for setting in concrete
Material/surface:
raw steel, hot-dip galvanised, for setting in concrete, with CE marking in accordance with ETA-10/0210
Surface / Colour:
FVZ
Material:
Steel
Approval:
Europ.techn.app. ETA-10/0210
:
400 mm
Weight per UQ (kg):
1.525 kg
Contents Unit:
1 Piece
  • with concrete anchor from round tube
  • No fittings are visible when the post (at least 90 x 90 mm) is mounted.
  • The stable screw on the post support keeps the post seated properly.
  • Statically suitable for lattice, lath and plank fences up to 1500 mm high. Only to be used for wooden fences when wall connections or angle constructions form a structural unit.
  • Holes of a Ø 15 mm must be predrilled in the timber post before the fence bracket can be installed.
