• T post support with flitch plate, Material: raw steel, Surface: hot-dip galvanised, for setting in concrete, Flitch plate width: 80 mm, Flitch plate height: 130 mm, Length of concrete anchor: 500 mm, Plate length: 90 mm, Tube Ø: 48.3 mm, Material thickness: 8.00 mm, No. of holes: 4, Hole: Ø11 mm
  • T post support with flitch plate, Material: raw steel, Surface: hot-dip galvanised, for setting in concrete, Flitch plate width: 80 mm, Flitch plate height: 130 mm, Length of concrete anchor: 500 mm, Plate length: 90 mm, Tube Ø: 48.3 mm, Material thickness: 8.00 mm, No. of holes: 4, Hole: Ø11 mm

T post support with flitch plate

Art.-No. 212681

raw steel, hot-dip galvanised, for setting in concrete

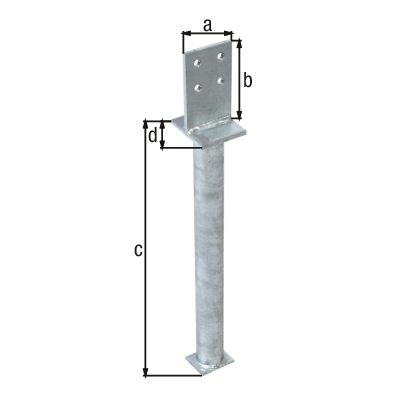

Dimension a:
80 mm
Dimension b:
130 mm
Dimension c:
500 mm
Dimension d:
90 mm
Fastening type:
for setting in concrete
Material thickness:
8 mm
Tube Ø:
48.3 mm
Quantity x hole Ø:
4 x Ø11 mm
Material/surface:
raw steel, hot-dip galvanised, for setting in concrete
Surface / Colour:
FVZ
Material:
Steel
Width:
80 mm
Height:
130 mm
Panel length:
90 mm
Weight per UQ (kg):
3.370 kg
Contents Unit:
1 Piece
