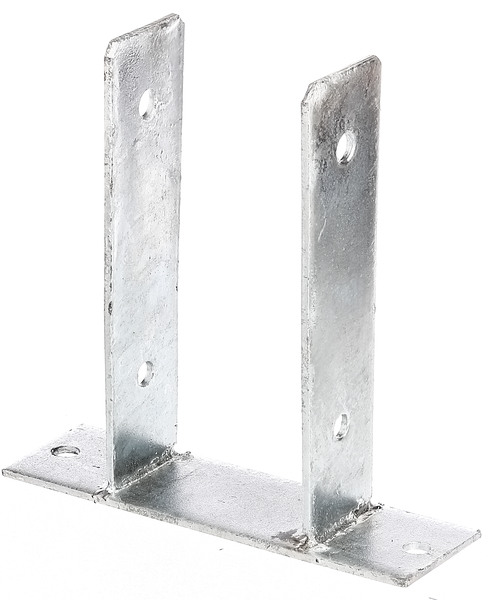

U post support
Art.-No. 212797
raw steel, hot-dip galvanised, for screwing on, with CE marking in accordance with ETA-10/0210
- Dimension a:
- 91 mm
- Dimension b:
- 200 mm
- Dimension c:
- 60 mm
- Dimension d:
- 50 mm
- Dimension e:
- 200 mm
- Fastening type:
- for screwing on
- Material thickness:
- 4 mm
- Quantity x hole Ø:
- 6 x Ø11 mm
- Material/surface:
- raw steel, hot-dip galvanised, for screwing on, with CE marking in accordance with ETA-10/0210
- Surface / Colour:
- FVZ
- Material:
- Steel
- Approval:
- Europ.techn.app. ETA-10/0210
- Width:
- 91 mm
- Height:
- 200 mm
- Depth:
- 60 mm
- Weight per UQ (kg):
- 0.950 kg
- Contents Unit:
- 1 Piece
Article-No.
Dimension a
Dimension b
Dimension c
Dimension d
Action
Article-No.
212766
Dimension a
71 mm
Dimension b
200 mm
Dimension c
60 mm
Dimension d
50 mm
Article-No.
212780
Dimension a
81 mm
Dimension b
200 mm
Dimension c
60 mm
Dimension d
50 mm
Article-No.
212797
Dimension a
91 mm
Dimension b
200 mm
Dimension c
60 mm
Dimension d
50 mm
Article-No.
212810
Dimension a
101 mm
Dimension b
200 mm
Dimension c
60 mm
Dimension d
50 mm
Article-No.
212827
Dimension a
121 mm
Dimension b
200 mm
Dimension c
60 mm
Dimension d
50 mm
- Statically suitable for lattice, plank, and lath fences up to 1800 mm for light pergolas. Suitable for timber construction and wooden fences as per the standard value table.
- Suitable fasteners can be found in the range “Screws and accessories”.
