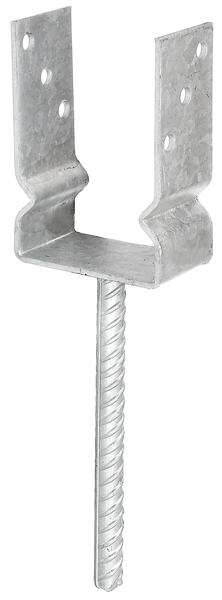

U post support with concrete anchor made of riffle steel
Art.-No. 208523
raw steel, hot-dip galvanised, for setting in concrete
- Dimension a:
- 91 mm
- Dimension b:
- 150 mm
- Dimension c:
- 200 mm
- Dimension d:
- 60 mm
- Dimension e:
- 100 mm
- Concrete anchor Ø:
- 16 mm
- Fastening type:
- for setting in concrete
- Material thickness:
- 4 mm
- Quantity x hole Ø:
- 6 x Ø11 mm
- Material/surface:
- raw steel, hot-dip galvanised, for setting in concrete
- Surface / Colour:
- FVZ
- Material:
- Steel
- Width:
- 91 mm
- Height:
- 150 mm
- Depth:
- 60 mm
- Weight per UQ (kg):
- 1.120 kg
- Contents Unit:
- 1 Piece
Article-No.
Dimension a
Dimension b
Dimension c
Dimension d
Action
Article-No.
208509
Dimension a
71 mm
Dimension b
150 mm
Dimension c
200 mm
Dimension d
60 mm
Article-No.
208523
Dimension a
91 mm
Dimension b
150 mm
Dimension c
200 mm
Dimension d
60 mm
- with post supports on the side for constructive wood protection
- Not statically suitable for high wooden and privacy fences.
- Suitable fasteners can be found in the range “Screws and accessories”.
