• U post support with concrete anchor made of round steel, Material: raw steel, Surface: hot-dip galvanised, for setting in concrete, with CE marking in accordance with ETA-10/0210, Clear width: 81 mm, Height: 104 mm, Length of concrete anchor: 200 mm, Depth: 60 mm, Concrete anchor Ø: 16 mm, Material thickness: 4.00 mm, No. of holes: 6, Hole: Ø11 mm
  • U post support with concrete anchor made of round steel, Material: raw steel, Surface: hot-dip galvanised, for setting in concrete, with CE marking in accordance with ETA-10/0210, Clear width: 81 mm, Height: 104 mm, Length of concrete anchor: 200 mm, Depth: 60 mm, Concrete anchor Ø: 16 mm, Material thickness: 4.00 mm, No. of holes: 6, Hole: Ø11 mm

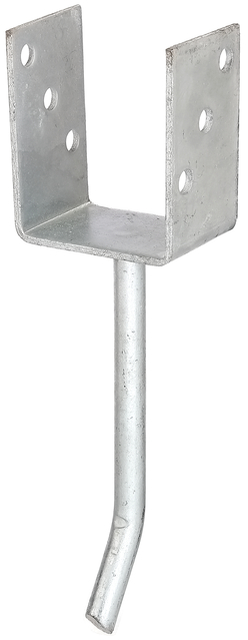

U post support with concrete anchor made of round steel

Art.-No. 214067

raw steel, hot-dip galvanised, for setting in concrete, with CE marking in accordance with ETA-10/0210

5 Variants
Dimension a:
81 mm
Dimension b:
104 mm
Dimension c:
200 mm
Dimension d:
60 mm
Concrete anchor Ø:
16 mm
Fastening type:
for setting in concrete
Material thickness:
4 mm
Quantity x hole Ø:
6 x Ø11 mm
Material/surface:
raw steel, hot-dip galvanised, for setting in concrete, with CE marking in accordance with ETA-10/0210
Surface / Colour:
FVZ
Material:
Steel
Approval:
Europ.techn.app. ETA-10/0210
Width:
81 mm
Height:
104 mm
Depth:
60 mm
Weight per UQ (kg):
0.837 kg
Contents Unit:
1 Piece
  • Not statically suitable for high wooden and privacy fences.
  • Suitable fasteners can be found in the range “Screws and accessories”.
