• U post support with concrete anchor made of round steel, Material: stainless steel, for setting in concrete, Clear width: 71 mm, Height: 104 mm, Length of concrete anchor: 200 mm, Depth: 60 mm, Concrete anchor Ø: 16 mm, Material thickness: 4.00 mm, No. of holes: 6, Hole: Ø11 mm
  • U post support with concrete anchor made of round steel, Material: stainless steel, for setting in concrete, Clear width: 71 mm, Height: 104 mm, Length of concrete anchor: 200 mm, Depth: 60 mm, Concrete anchor Ø: 16 mm, Material thickness: 4.00 mm, No. of holes: 6, Hole: Ø11 mm

U post support with concrete anchor made of round steel

Art.-No. 214203

stainless steel, for setting in concrete

2 Variants

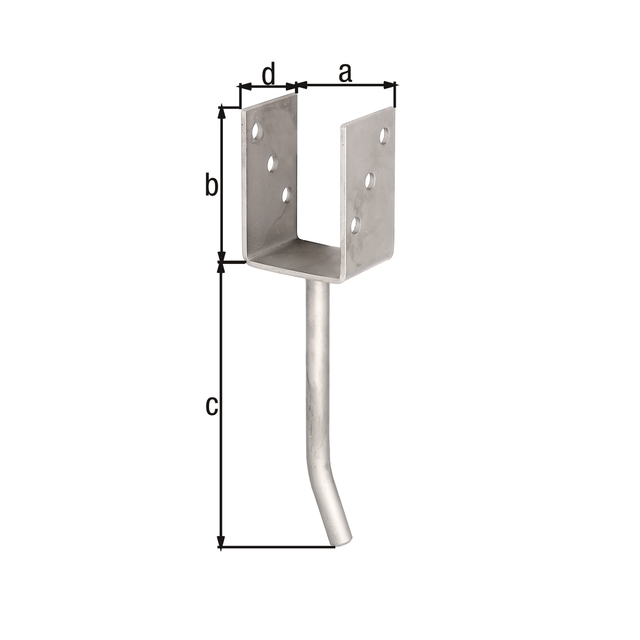

Dimension a:
71 mm
Dimension b:
104 mm
Dimension c:
200 mm
Dimension d:
60 mm
Concrete anchor Ø:
16 mm
Fastening type:
ZEINB
Material thickness:
4 mm
Quantity x hole Ø:
6 x Ø11 mm
Material/surface:
stainless steel, for setting in concrete
Material:
Stainless steel
:
71 mm
:
104 mm
:
60 mm
Weight per UQ (kg):
0.800 kg
Contents Unit:
1 Piece
Article-No.
Dimension a
Dimension b
Dimension c
Dimension d
Action
Article-No. 214203
Dimension a 71 mm
Dimension b 104 mm
Dimension c 200 mm
Dimension d 60 mm
Article-No. 214210
Dimension a 91 mm
Dimension b 104 mm
Dimension c 200 mm
Dimension d 60 mm
  • Not statically suitable for high wooden and privacy fences.
  • Suitable fasteners can be found in the range “Screws and accessories”.
