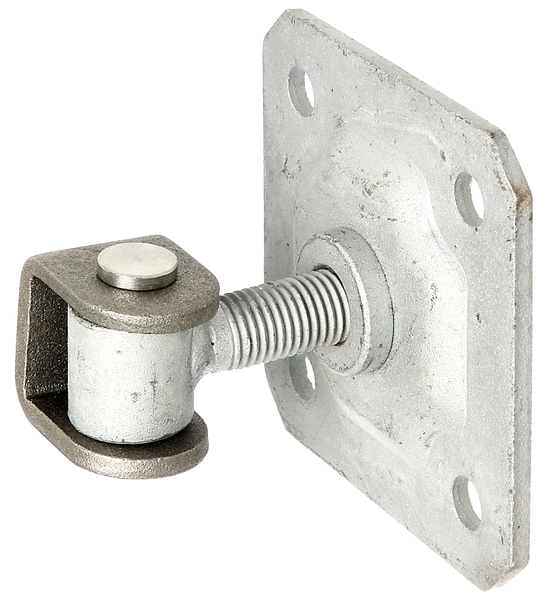

Gate hinge with U-bracket for welding and plate for screwing on
Art.-No. 418397
U-clip: raw steel, connecting bolt and circlip: stainless steel, plate and eye screw: hot-dip galvanised

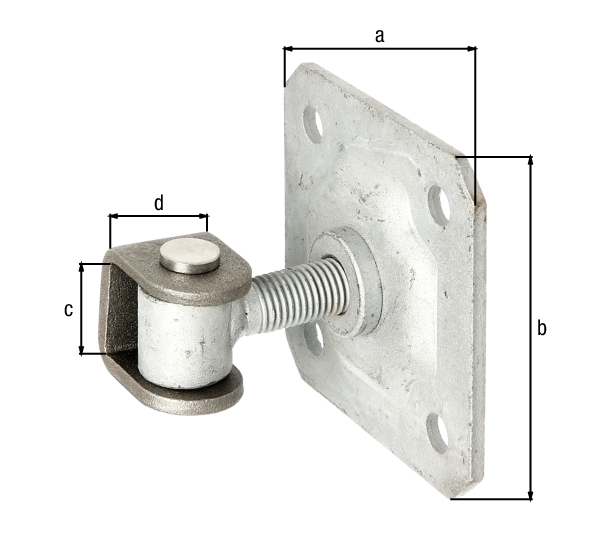

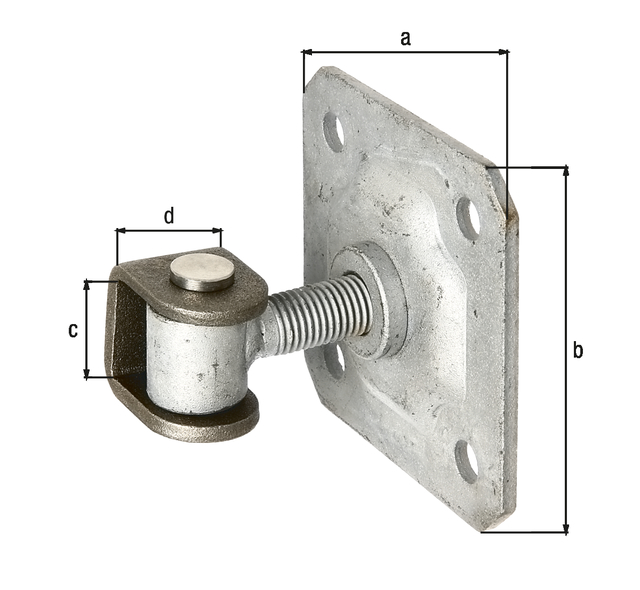

- Dimension a:
- 100 mm
- Dimension b:
- 100 mm
- Dimension c:
- 37 mm
- Dimension d:
- 30 mm
- can be adjusted by:
- 20 mm
- Thread:
- M16
- Quantity x hole Ø:
- 4 x Ø11 mm
- Material/surface:
- U-clip: raw steel, connecting bolt and circlip: stainless steel, plate and eye screw: hot-dip galvanised
- Width:
- 100 mm
- Height:
- 100 mm
- Weight per UQ (kg):
- 0.68 kg
- Contents Unit:
- 1 Piece
Article-No.
Dimension a
Dimension b
Dimension c
Dimension d
Action
Article-No.
418397
Dimension a
100 mm
Dimension b
100 mm
Dimension c
37 mm
Dimension d
30 mm

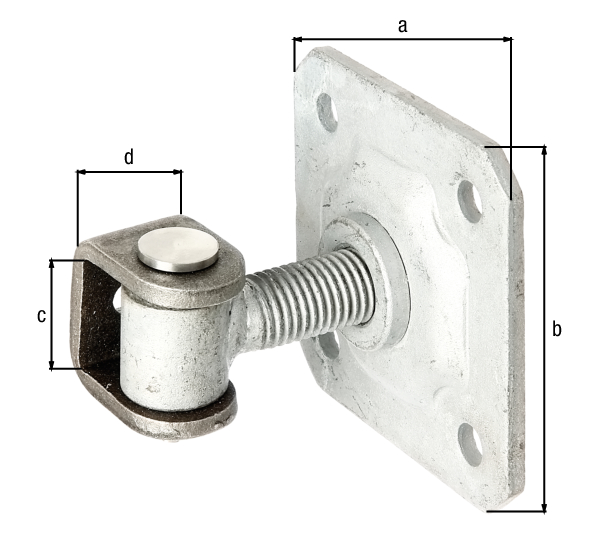

Article-No.
418403
Dimension a
100 mm
Dimension b
100 mm
Dimension c
42 mm
Dimension d
30 mm
