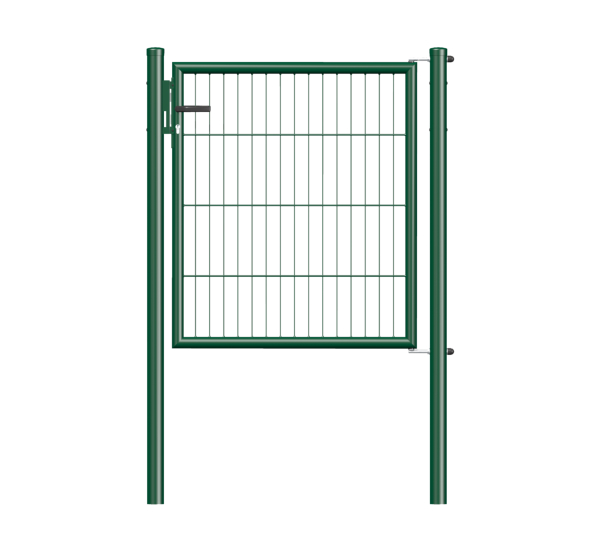

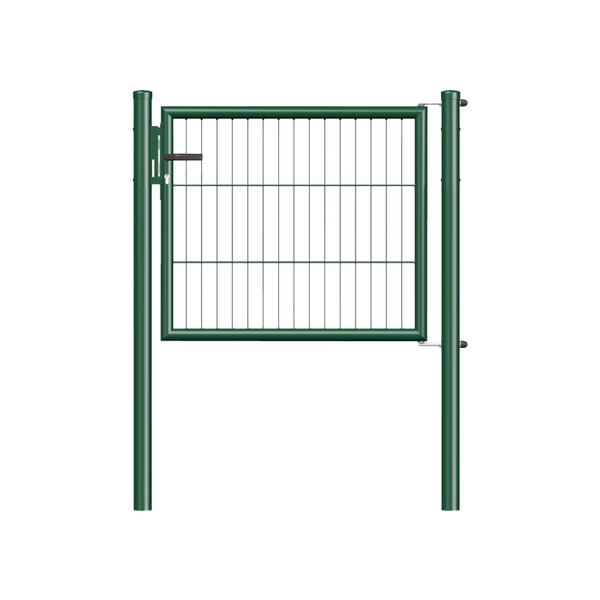

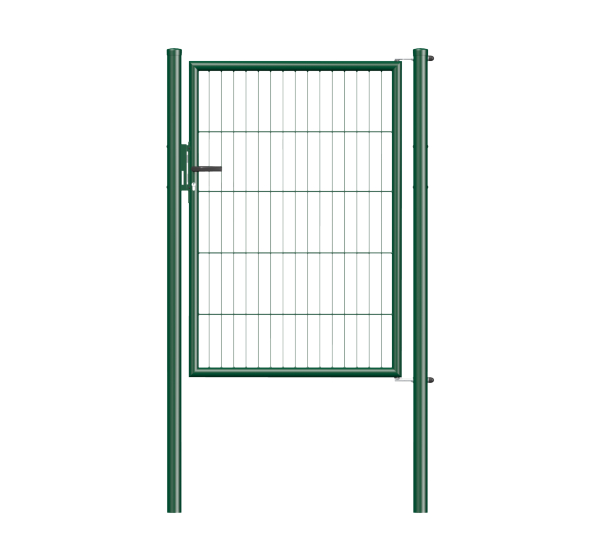

Bar grating single gate Garden
Art.-No. 617400
- Height:
- 750 mm
- Width from middle to middle of post:
- 1000 mm
- Post length:
- 1250 mm
- Post dia.:
- 60 mm
- Frame thickness Ø:
- 42 mm
- Filler material:
- 50 x 250 mm
- Fastening type:
- for setting in concrete
- Opening:
- 90 °
- :
- 10 years
- Material/surface:
- raw steel, zinc phosphate plated, green powder-coated RAL 6005, for setting in concrete
- Systems:
- Flexo & Flexo Plus,Garden
- Surface / Colour:
- GRUEN
- Weight per UQ (kg):
- 15.000 kg
- Contents Unit:
- 1 Piece
Article-No.
Height
Width from middle to middle of post
Post length
Post dia.
Action
Article-No.
617400
Height
750 mm
Width from middle to middle of post
1000 mm
Post length
1250 mm
Post dia.
60 mm
Article-No.
617417
Height
1000 mm
Width from middle to middle of post
1000 mm
Post length
1500 mm
Post dia.
60 mm
Article-No.
617424
Height
1250 mm
Width from middle to middle of post
1000 mm
Post length
1750 mm
Post dia.
60 mm
Article-No.
617639
Height
1500 mm
Width from middle to middle of post
1000 mm
Post length
2000 mm
Post dia.
60 mm
- The specified height matches the frame dimension.
- A replaceable, galvanised tube frame lock (applicable DIN left and right) with profile cylinder and two keys, door handle, stop, and adjustable hook included.
- Hook and stop post included.
