• Set of Step² flat irons, drilling distance 200 mm, for fixing of double bar grating panels to gabion wall posts, Material: raw steel, Surface: hot-dip galvanised passivated, Contents per PU: 2 Piece, Length: 1020 mm, Width: 40 mm, For gabion height: 1000 mm, Material thickness: 4.00 mm, No. of holes: 12, Hole: 25 x 10 mm, 15-year warranty against rusting through
  • Set of Step² flat irons, drilling distance 200 mm, for fixing of double bar grating panels to gabion wall posts, Material: raw steel, Surface: hot-dip galvanised passivated, Contents per PU: 2 Piece, Length: 1020 mm, Width: 40 mm, For gabion height: 1000 mm, Material thickness: 4.00 mm, No. of holes: 12, Hole: 25 x 10 mm, 15-year warranty against rusting through

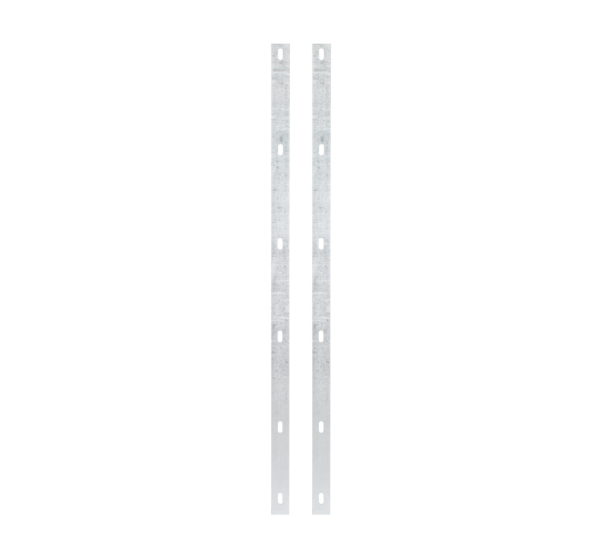

Set of Step² flat irons, drilling distance 200 mm

for fixing of double bar grating panels to gabion wall posts
Art.-No. 646134
2 Variants
Length:
1020 mm
Width:
40 mm
For gabion height:
1000 mm
Material thickness:
4 mm
:
15 years
Quantity x hole (LxW):
12 x ( 25 x 10 ) mm
Material/surface:
raw steel, hot-dip galvanised passivated
Systems:
Step ²,ZNGBZUB
Surface / Colour:
FVZ
Weight per UQ (kg):
2.650 kg
Contents per PU:
2 Piece / Bundle
Contents Unit:
1 Bundle
Article-No.
Length
Width
For gabion height
Material thickness
Action
Article-No. 646134
Length 1020 mm
Width 40 mm
For gabion height 1000 mm
Material thickness 4 mm

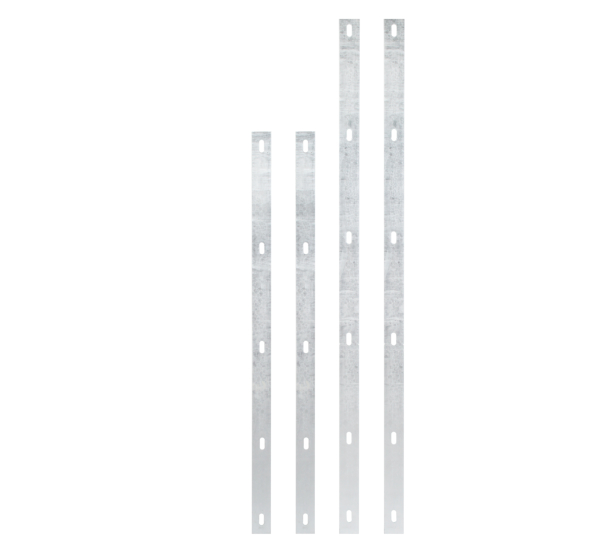

Article-No. 646141
Length 1020 mm
Width 40 mm
For gabion height 1800 mm
Material thickness 4 mm
  • You can find a suitable setup video at www.youtube.com/@alberts1852
  • Two or four flat irons in bundles, enough for a Step² gabion wall post.
