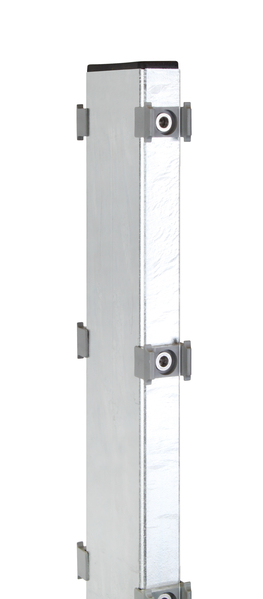

Gabion post Step²
Art.-No. 646066
- Length:
- 1500 mm
- For gabion height:
- 1000 mm
- Post thickness:
- 120 x 40 mm
- Fastening type:
- for setting in concrete
- :
- 15 years
- Material/surface:
- raw steel, hot-dip galvanised passivated, for setting in concrete
- Systems:
- Step ²
- Surface / Colour:
- FVZ
- Weight per UQ (kg):
- 10.250 kg
- Contents Unit:
- 1 Piece
Article-No.
Length
For gabion height
Post thickness
Fastening type
Action
Article-No.
646066
Length
1500 mm
For gabion height
1000 mm
Post thickness
120 x 40 mm
Fastening type
for setting in concrete

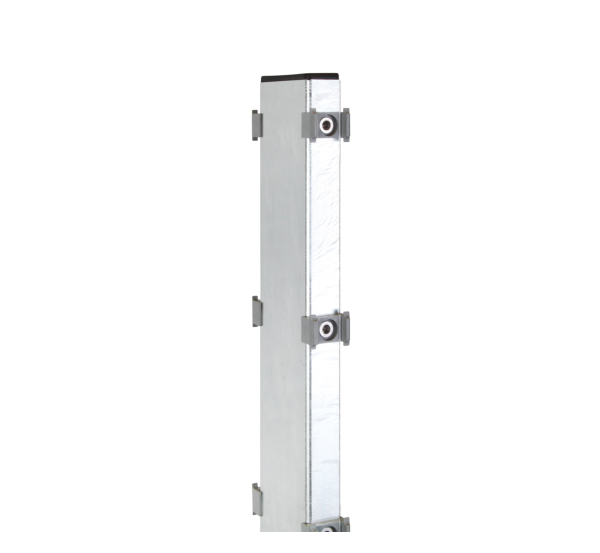

Article-No.
646073
Length
2400 mm
For gabion height
1800 mm
Post thickness
120 x 40 mm
Fastening type
for setting in concrete
- prepared for panel assembly on either side
- How to build a fence gabion in two steps
- Convenient filling height
- Place stone under control and with no spaces
- When used in conjunction with two double bar grating panels, a streamlined gabion wall is created with a construction depth of just 150 mm.
- For combination with 2m-wide double bar grating panels.
- If you are going to screw onto the post, we recommend that you use the M12 screws with a minimum length of 140 mm together with the heavy-duty dowel plugs.
- Please enquire with the local municipality or community with regards to the building regulations. It is recommended that a static test is carried out for insurance reasons. This system is not suitable for supporting slopes.
- You can find a suitable setup video at www.youtube.com/@alberts1852
- Fixing sets not included. They can be ordered separately.
