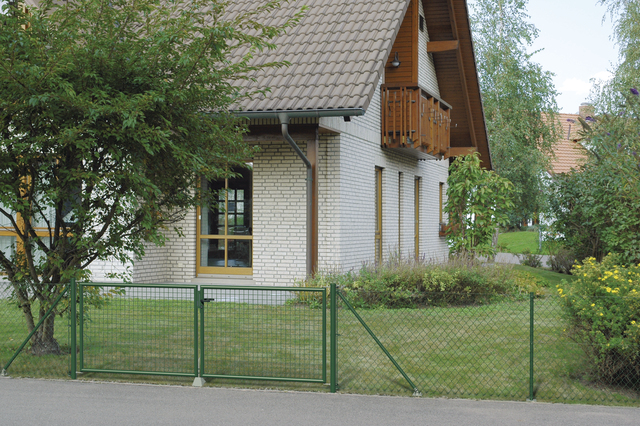

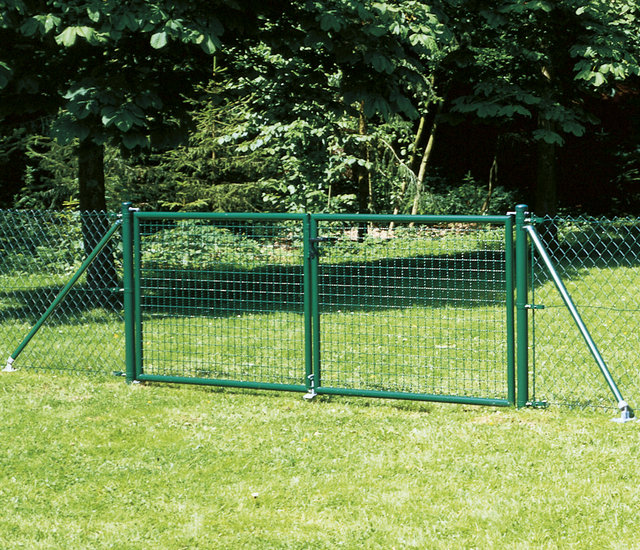

Welded mesh double gate
Art.-No. 603151
- Nominal width:
- 3000 mm
- Height:
- 2000 mm
- Clear width:
- 2968 mm
- Frame width gate leaf:
- 1419 mm
- Frame width second gate leaf:
- 1419 mm
- Width from middle to middle of post:
- 3044 mm
- Post length:
- 2500 mm
- Post dia.:
- 76 mm
- Frame thickness Ø:
- 42 mm
- Filler material:
- 50 x 50 x 4 mm
- Fastening type:
- for setting in concrete
- Opening:
- 90 °
- :
- 10 years
- Material/surface:
- raw steel, zinc phosphate plated, green powder-coated RAL 6005, for setting in concrete
- Systems:
- Fix-Clip Pro®,WGTO
- Surface / Colour:
- GRUEN
- Type:
- divided in the middle
- Weight per UQ (kg):
- 66.000 kg
- Contents Unit:
- 1 Piece
Article-No.
Nominal width
Height
Clear width
Frame width gate leaf
Action
Article-No.
602802
Nominal width
3000 mm
Height
750 mm
Clear width
2928 mm
Frame width gate leaf
1419 mm
Article-No.
602901
Nominal width
3000 mm
Height
1000 mm
Clear width
2928 mm
Frame width gate leaf
1419 mm
Article-No.
603007
Nominal width
3000 mm
Height
1250 mm
Clear width
2928 mm
Frame width gate leaf
1419 mm
Article-No.
603106
Nominal width
3000 mm
Height
1500 mm
Clear width
2928 mm
Frame width gate leaf
1419 mm
Article-No.
603304
Nominal width
3000 mm
Height
1750 mm
Clear width
2928 mm
Frame width gate leaf
1419 mm
Article-No.
603151
Nominal width
3000 mm
Height
2000 mm
Clear width
2968 mm
Frame width gate leaf
1419 mm
Article-No.
604202
Nominal width
4000 mm
Height
750 mm
Clear width
3928 mm
Frame width gate leaf
1919 mm
Article-No.
604219
Nominal width
4000 mm
Height
1000 mm
Clear width
3928 mm
Frame width gate leaf
1919 mm
Article-No.
604226
Nominal width
4000 mm
Height
1250 mm
Clear width
3928 mm
Frame width gate leaf
1919 mm
Article-No.
604233
Nominal width
4000 mm
Height
1500 mm
Clear width
3928 mm
Frame width gate leaf
1919 mm
Article-No.
604158
Nominal width
4000 mm
Height
2000 mm
Clear width
3968 mm
Frame width gate leaf
1919 mm
- The specified height matches the frame dimension.
- For gates with heights above 1,500 mm, the gate hinges are welded on, which increases the width.
- The accessory kit consists of galvanised tube frame lock (opening direction DIN left and right), profile cylinder with two keys, drop bolt, stop and hooks. For gate height over 1750 mm a triangular support instead of a drop bolt with stop are delivered.
- Two hook posts included.
- Custom production
