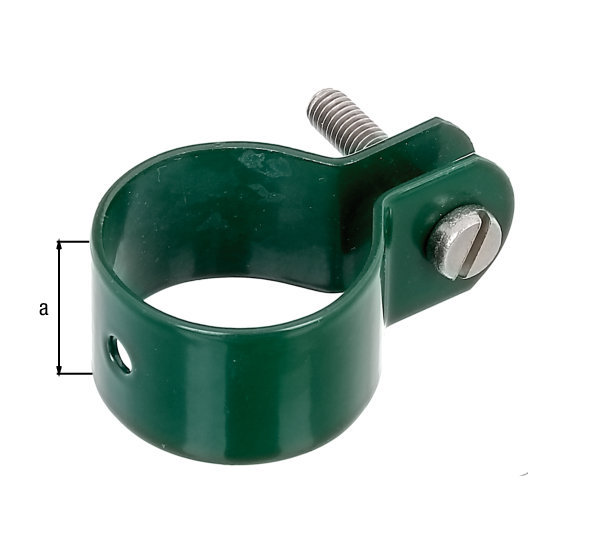

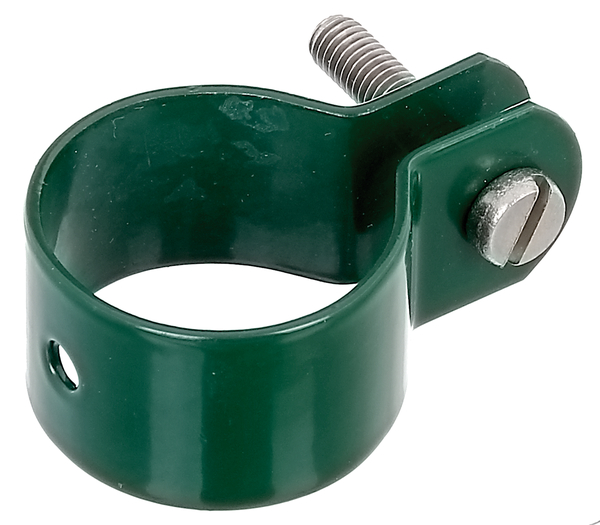

Ring clip for fixing braces to posts
Art.-No. 655204
- Dimension a:
- 22 mm
- Screw length:
- 30 mm
- Screw:
- M6
- Circlip dia.:
- 34 mm
- Material thickness:
- 1.5 mm
- :
- 15 years
- Hole-Ø:
- 7 mm
- Material/surface:
- raw steel, galvanised, green powder-coated RAL 6005
- Systems:
- Fix-Clip Pro®,DRZNZUB,MDR
- Surface / Colour:
- GRUEN
- :
- 22 mm
- Weight per UQ (kg):
- 0.044 kg
- Contents Unit:
- 10 Piece
![](https://cb.alberts.de/FOT/ART/V01/FOT_ART_V01_655204_%23SALL_%23AIN_%23V1.1725153488.jpg)
Article-No.
Dimension a
Screw length
Screw
Circlip dia.
Action
Article-No.
655204
Dimension a
22 mm
Screw length
30 mm
Screw
M6
Circlip dia.
34 mm

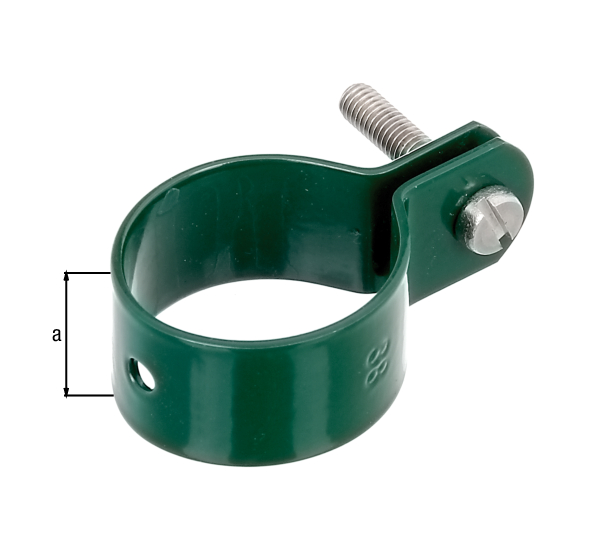

Article-No.
655211
Dimension a
22 mm
Screw length
30 mm
Screw
M6
Circlip dia.
38 mm

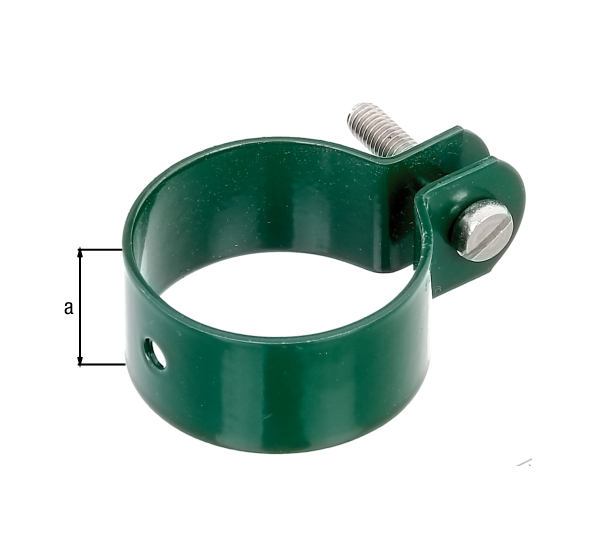

Article-No.
655228
Dimension a
25 mm
Screw length
30 mm
Screw
M6
Circlip dia.
42 mm

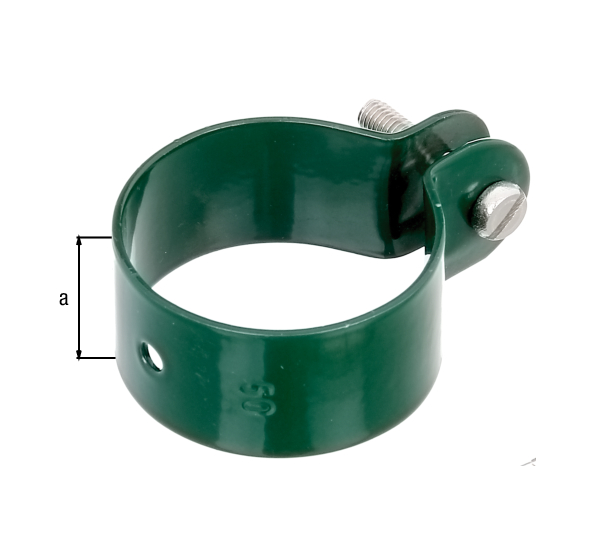

Article-No.
655235
Dimension a
25 mm
Screw length
30 mm
Screw
M6
Circlip dia.
48 mm

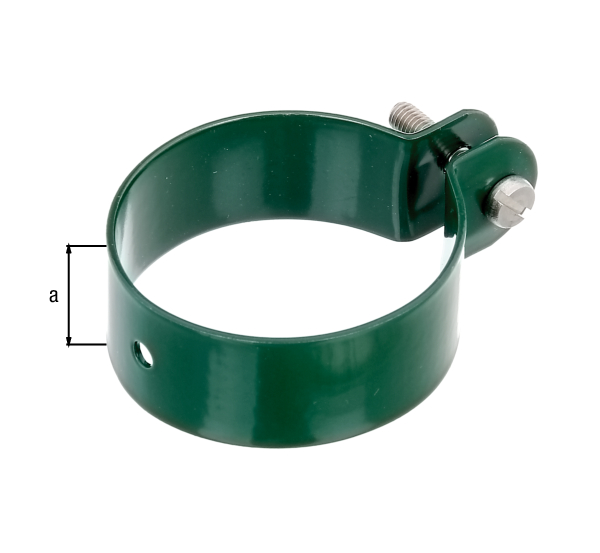

Article-No.
655242
Dimension a
25 mm
Screw length
30 mm
Screw
M6
Circlip dia.
60 mm
- fits brace cap
- One screw and stainless steel nut included.
