• Welded mesh single gate, Material: raw steel, Surface: zinc phosphate plated, green powder-coated RAL 6005, for setting in concrete, Nominal width: 1000 mm, Clear width: 940 mm, Width from middle to middle of post: 1000 mm, Height: 1000 mm, Post length: 1500 mm, Post dia.: 60 mm, Frame width: 880 mm, Frame thickness Ø: 42 mm, Filler material: 50 x 50 x 4 mm, 10-year warranty against rusting through
  • Welded mesh single gate, Material: raw steel, Surface: zinc phosphate plated, green powder-coated RAL 6005, for setting in concrete, Nominal width: 1000 mm, Clear width: 940 mm, Width from middle to middle of post: 1000 mm, Height: 1000 mm, Post length: 1500 mm, Post dia.: 60 mm, Frame width: 880 mm, Frame thickness Ø: 42 mm, Filler material: 50 x 50 x 4 mm, 10-year warranty against rusting through

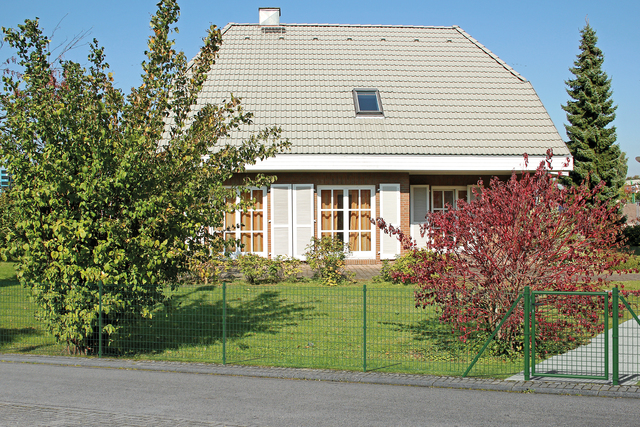

Welded mesh single gate

Art.-No. 600136

12 Variants
Nominal width:
1000 mm
Height:
1000 mm
Clear width:
940 mm
Width from middle to middle of post:
1000 mm
Frame width:
880 mm
Post length:
1500 mm
Post dia.:
60 mm
Frame thickness Ø:
42 mm
Filler material:
50 x 50 x 4 mm
Fastening type:
for setting in concrete
Opening:
90 °
:
10 years
Material/surface:
raw steel, zinc phosphate plated, green powder-coated RAL 6005, for setting in concrete
Systems:
Fix-Clip Pro®,WGTO
Surface / Colour:
GRUEN
Weight per UQ (kg):
17.900 kg
Contents Unit:
1 Piece
Article-No.
Nominal width
Height
Clear width
Width from middle to middle of post
Action
Article-No. 600037
Nominal width 1000 mm
Height 750 mm
Clear width 940 mm
Width from middle to middle of post 1000 mm
Article-No. 600136
Nominal width 1000 mm
Height 1000 mm
Clear width 940 mm
Width from middle to middle of post 1000 mm
Article-No. 600204
Nominal width 1000 mm
Height 1250 mm
Clear width 940 mm
Width from middle to middle of post 1000 mm
Article-No. 600303
Nominal width 1000 mm
Height 1500 mm
Clear width 940 mm
Width from middle to middle of post 1000 mm
Article-No. 600358
Nominal width 1000 mm
Height 1750 mm
Clear width 960 mm
Width from middle to middle of post 1020 mm
Article-No. 600402
Nominal width 1000 mm
Height 2000 mm
Clear width 960 mm
Width from middle to middle of post 1020 mm
Article-No. 650216
Nominal width 1250 mm
Height 1000 mm
Clear width 1190 mm
Width from middle to middle of post 1250 mm
Article-No. 650223
Nominal width 1250 mm
Height 1250 mm
Clear width 1190 mm
Width from middle to middle of post 1250 mm
Article-No. 650230
Nominal width 1250 mm
Height 1500 mm
Clear width 1190 mm
Width from middle to middle of post 1250 mm
Article-No. 650247
Nominal width 1250 mm
Height 1750 mm
Clear width 1210 mm
Width from middle to middle of post 1270 mm
Article-No. 650254
Nominal width 1250 mm
Height 2000 mm
Clear width 1210 mm
Width from middle to middle of post 1270 mm
Article-No. 601065
Nominal width 1500 mm
Height 1250 mm
Clear width 1440 mm
Width from middle to middle of post 1500 mm
  • The specified height matches the frame dimension.
  • For gates with heights above 1,500 mm, the gate hinges are welded on, which increases the width.
  • A replaceable, galvanised tube frame lock (applicable DIN left and right) with profile cylinder and two keys, door handle, stop, and adjustable hook included.
  • Hook and stop post included.
  • Custom production
