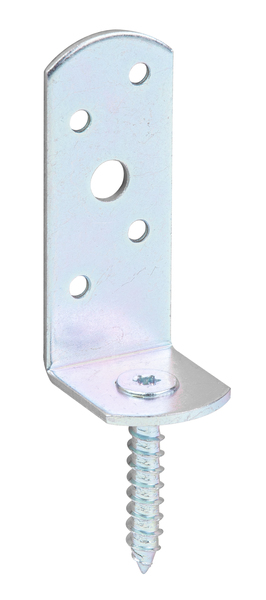

Fence bracket L shape
Art.-No. 213237

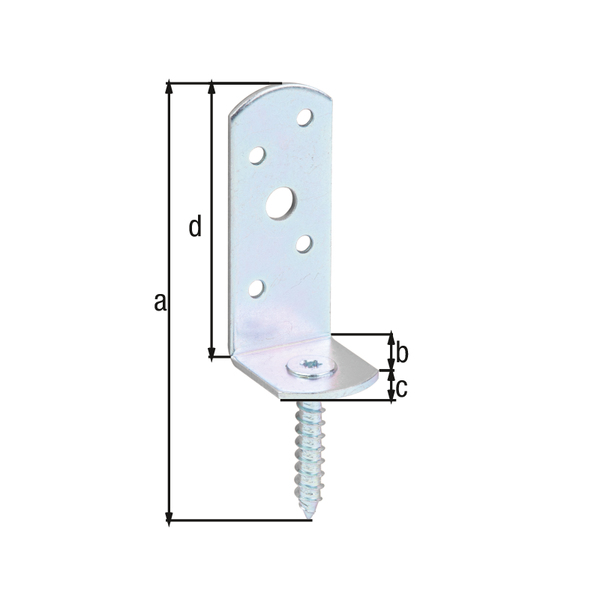

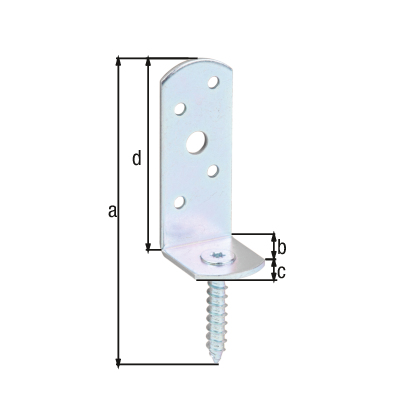

- Dimension a:
- 115 mm
- Dimension b:
- 31.5 mm
- Dimension c:
- 30 mm
- Dimension d:
- 75 mm
- Wooden thread Ø:
- 8 x 45 mm
- Drive:
- hexagon head (star) size 30
- Fastening type:
- for screwing on
- Material thickness:
- 2.5 mm
- Quantity x hole Ø:
- 4 x Ø4.5 mm
- Quantity x hole Ø:
- 1 x Ø9 mm
- Material/surface:
- raw steel, galvanised, thick-film passivated
- Surface / Colour:
- VERZ
- Material:
- Steel
- Width:
- 31,5 mm
- Height:
- 75 mm
- Depth:
- 30 mm
- :
- 115 mm
- Weight per UQ (kg):
- 0.087 kg
- Contents Unit:
- 50 Piece
- with wood screw
- Holes with Ø 6 mm must be predrilled in the timber post before the fence bracket can be installed.
- For easy fixation and adjustment use our drive-in tool for fence bracket no. 208790
