• Ground anchor, Material: raw steel, Surface: hot-dip galvanised, Width at lower support surface: 109 mm, Total length storm anchor: 637 mm, Width of upper support surface: 50 mm, Total length of ground nail: 700 mm, Ground nail dia.: 12 mm, Flat iron: 40 x 5 mm, Hole: Ø9 / Ø16 mm
  • Ground anchor, Material: raw steel, Surface: hot-dip galvanised, Width at lower support surface: 109 mm, Total length storm anchor: 637 mm, Width of upper support surface: 50 mm, Total length of ground nail: 700 mm, Ground nail dia.: 12 mm, Flat iron: 40 x 5 mm, Hole: Ø9 / Ø16 mm

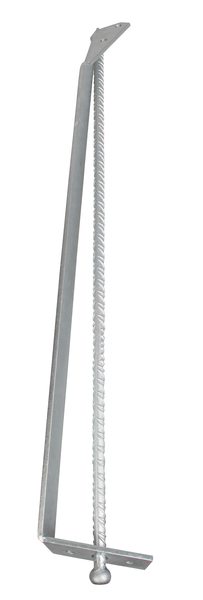

Ground anchor

Art.-No. 219338

raw steel, hot-dip galvanised

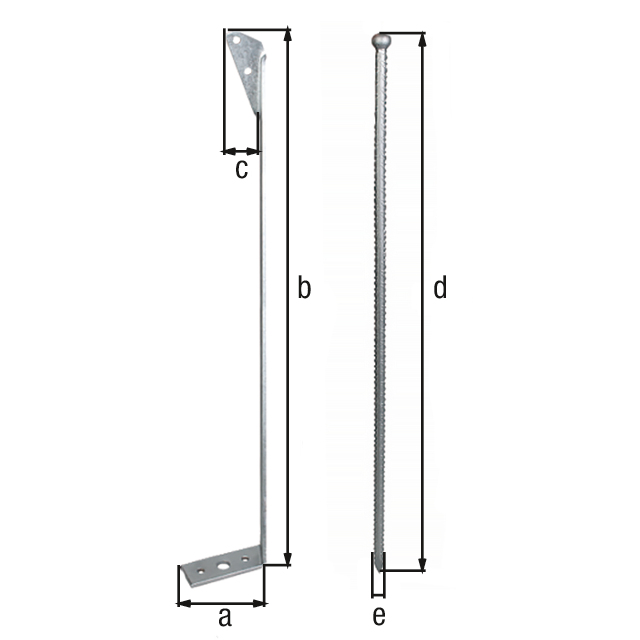

Dimension a:
109 mm
Dimension b:
637 mm
Dimension c:
50 mm
Dimension d:
700 mm
Dimension e-Ø:
12 mm
Flat iron:
40 x 5 mm
Fastening type:
for screwing on
Material/surface:
raw steel, hot-dip galvanised
Surface / Colour:
FVZ
Material:
Steel
:
637 mm
Weight per UQ (kg):
1.95 kg
Contents Unit:
1 Piece

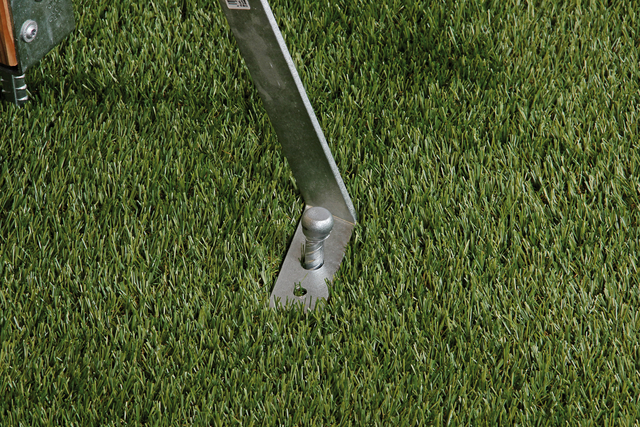

  • ground spike made of ripple steel
  • ground anchor and ground spike connected by cable tie

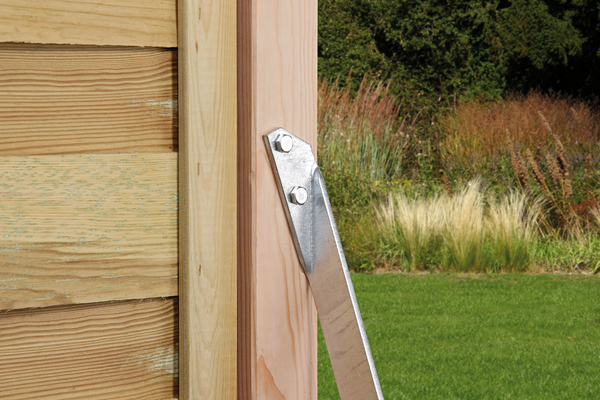

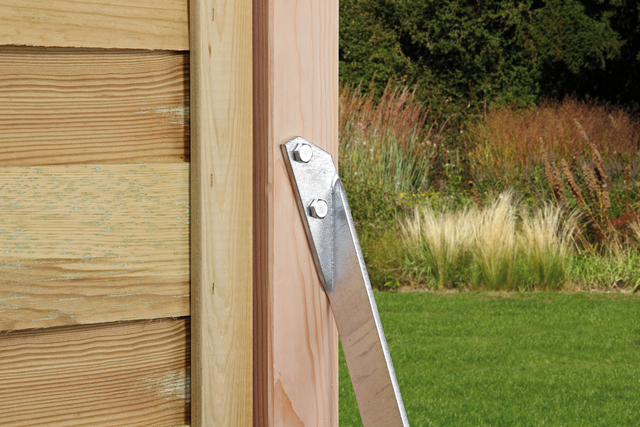

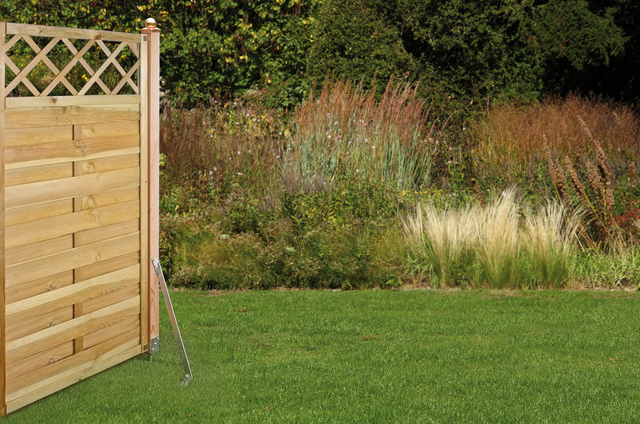

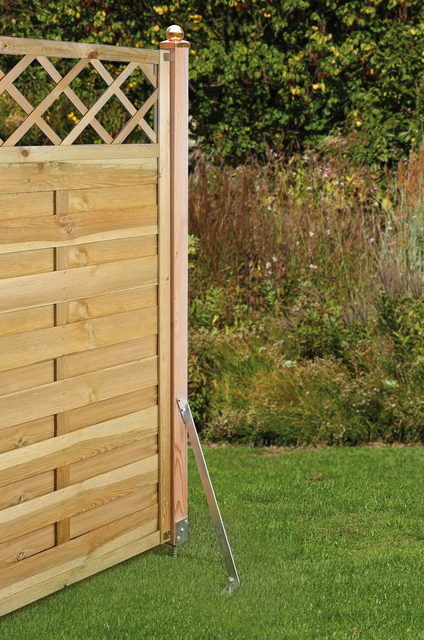

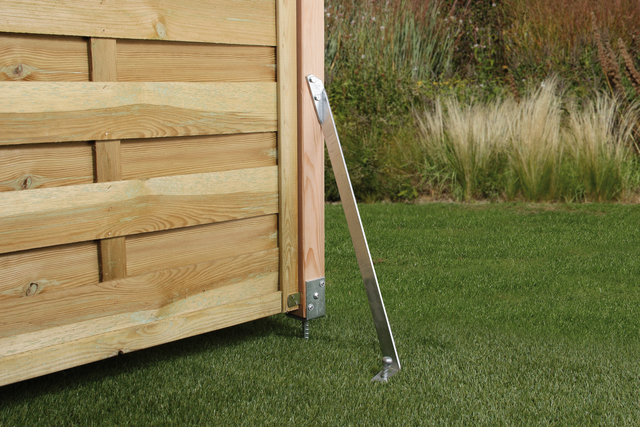

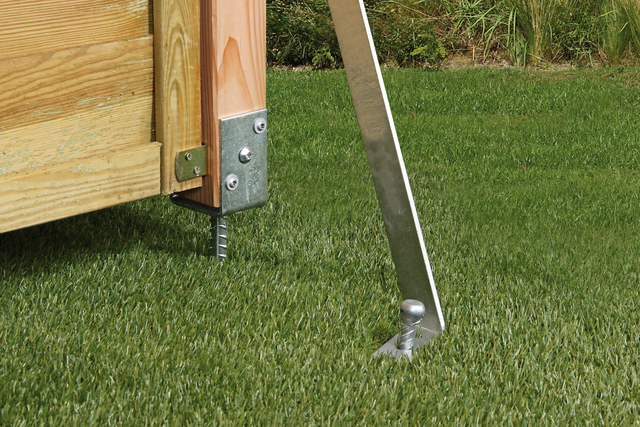

  • Ground anchor can be fixed either by screws in a foundation or with a ground spike in earth.
