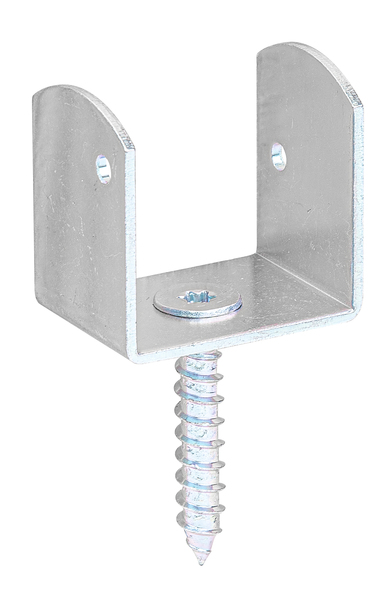

Fence bracket U shape
Art.-No. 213374
raw steel, galvanised, thick-film passivated

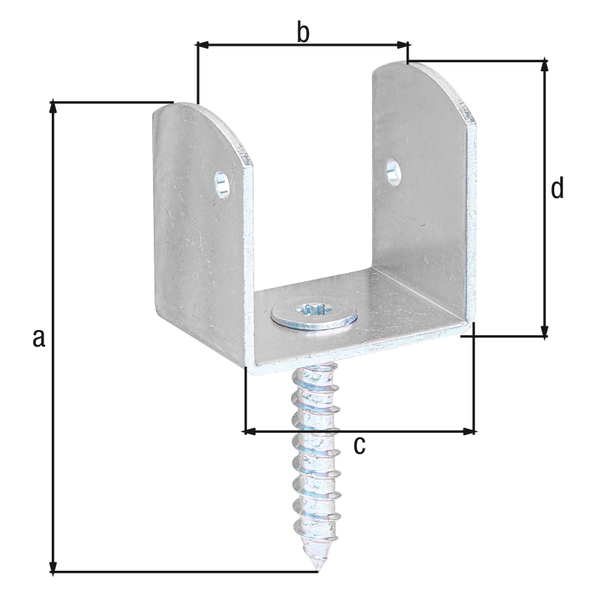

- Dimension a:
- 83 mm
- Dimension b:
- 38 mm
- Dimension c:
- 30 mm
- Dimension d:
- 38 mm
- Wooden thread Ø:
- 8 x 45 mm
- Drive:
- hexagon head (star) size 30
- Fastening type:
- ZAUFSCHR
- Material thickness:
- 2 mm
- Quantity x hole Ø:
- 2 x Ø4.5 mm
- Material/surface:
- raw steel, galvanised, thick-film passivated
- Surface / Colour:
- VERZ
- Material:
- Steel
- :
- 38 mm
- :
- 38 mm
- :
- 30 mm
- :
- 83 mm
- Weight per UQ (kg):
- 0.076 kg
- Contents Unit:
- 100 Piece
- with wood screw
- Holes with Ø 6 mm must be predrilled in the timber post before the fence bracket can be installed.
