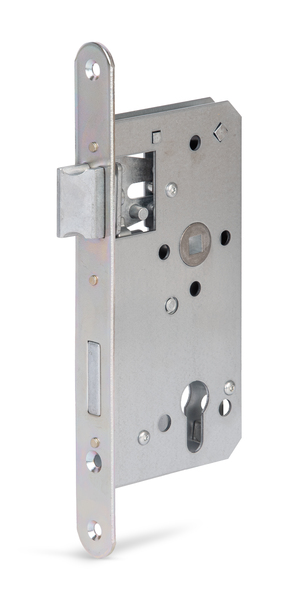

Deadbolt lock especially for frame gates
with countersunk screw holes
Art.-No. 215224
raw steel, galvanised
- Item description:
- O_SCHLIESSBL

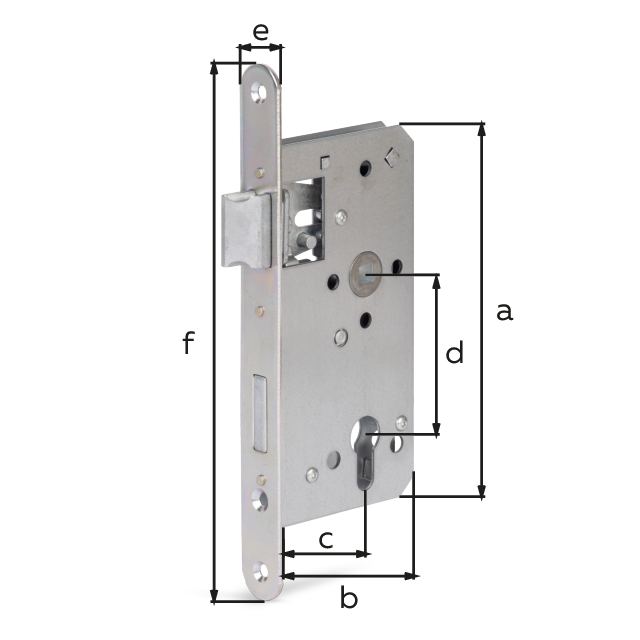

- Dimension a:
- 167 mm
- Dimension b:
- 85 mm
- Dimension c:
- 55 mm
- Dimension d:
- 72 mm
- Dimension e:
- 24 mm
- Dimension f:
- 235 mm
- Bolt recess:
- 13 / 25 mm
- Socket:
- 8 x 8 mm
- Fastening type:
- ZAUFSCHR
- Material/surface:
- raw steel, galvanised
- Systems:
- SCHLS,TORZU
- Surface / Colour:
- VERZ
- Material:
- Steel
- :
- 167 mm
- Weight per UQ (kg):
- 0.755 kg
- Contents Unit:
- 1 Piece
Article-No.
Item description
Dimension a
Dimension b
Dimension c
Action
Article-No.
215224
Item description
O_SCHLIESSBL
Dimension a
167 mm
Dimension b
85 mm
Dimension c
55 mm

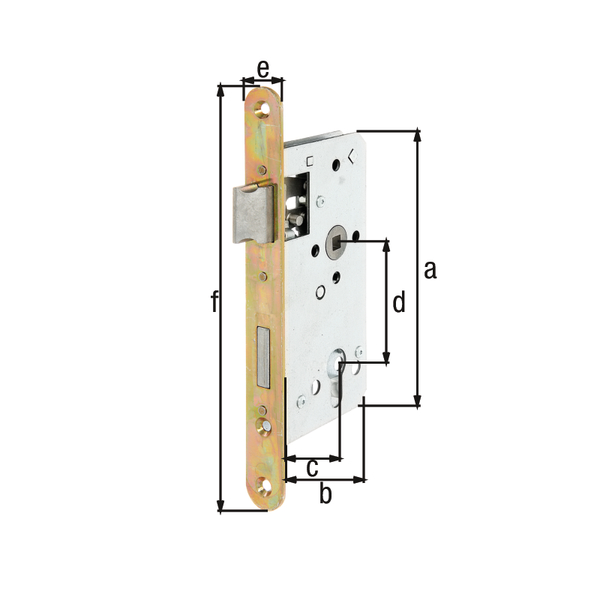

Article-No.
215231
Item description
M_SCHLIESSBL
Dimension a
167 mm
Dimension b
85 mm
Dimension c
55 mm
- applicable DIN left and right
- PC perforation
- with switch-over
- 2-level
- foldable latch
- rounded strike plate
