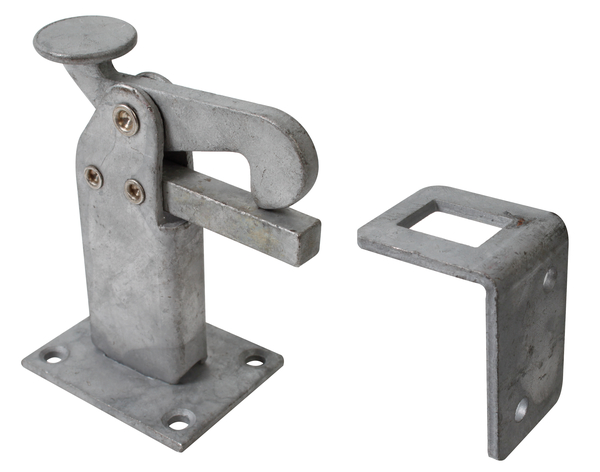

Gate stop for fixing on the ground

with countersunk screw holes
Art.-No. 411763

raw steel, hot-dip galvanised, for screwing on

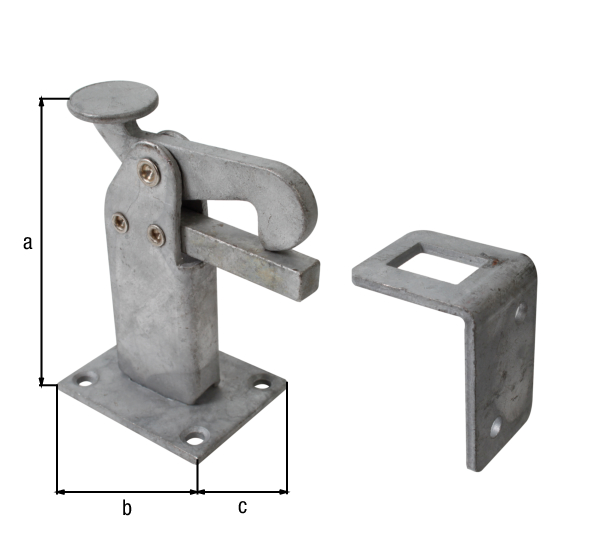

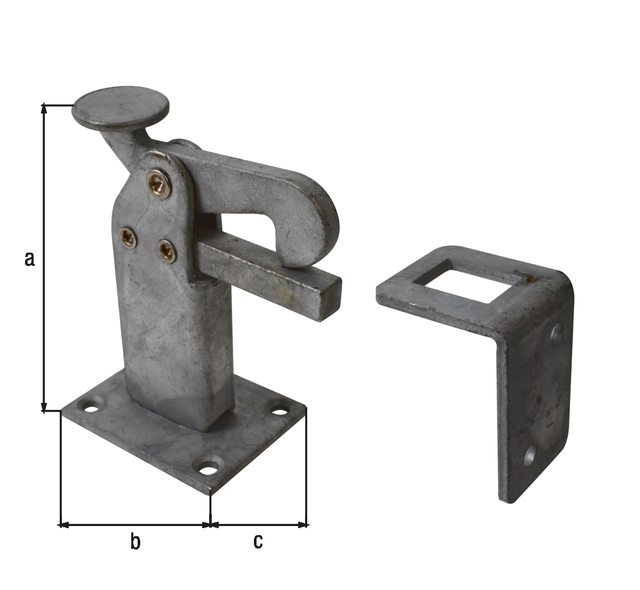

Dimension a:
95 mm
Dimension b:
65 mm
Dimension c:
50 mm
Fastening type:
for screwing on
Quantity x hole Ø:
4 x Ø6 mm
Quantity x hole Ø:
2 x Ø5.5 mm
Material/surface:
raw steel, hot-dip galvanised, for screwing on
Systems:
TORZU
Surface / Colour:
FVZ
Material:
Steel
Panel width:
50 mm
Height:
95 mm
Panel length:
65 mm
Weight per UQ (kg):
0.440 kg
Contents Unit:
1 Piece
  • with counter plate
