• Gate stop, with long holes, Material: cast aluminium, for setting in concrete, Diameter: 205 mm, Height: 65 mm, Stop height: 17 mm, depth of encase in concrete: 125 mm, No. of holes: 1, Hole: 50 x 20 mm
  • Gate stop, with long holes, Material: cast aluminium, for setting in concrete, Diameter: 205 mm, Height: 65 mm, Stop height: 17 mm, depth of encase in concrete: 125 mm, No. of holes: 1, Hole: 50 x 20 mm

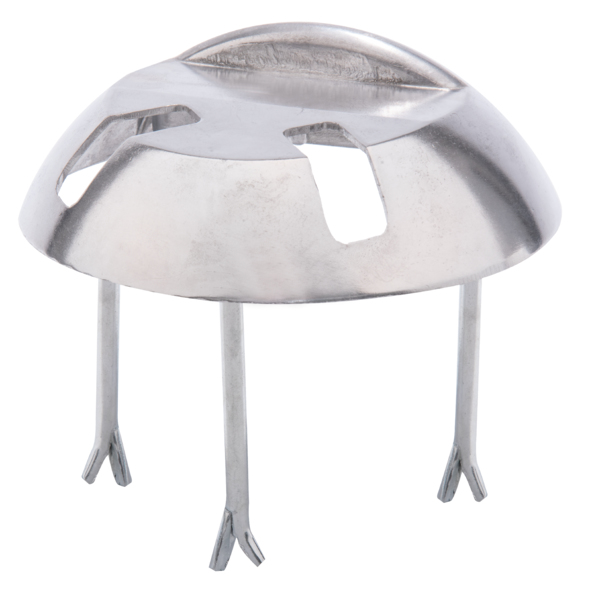

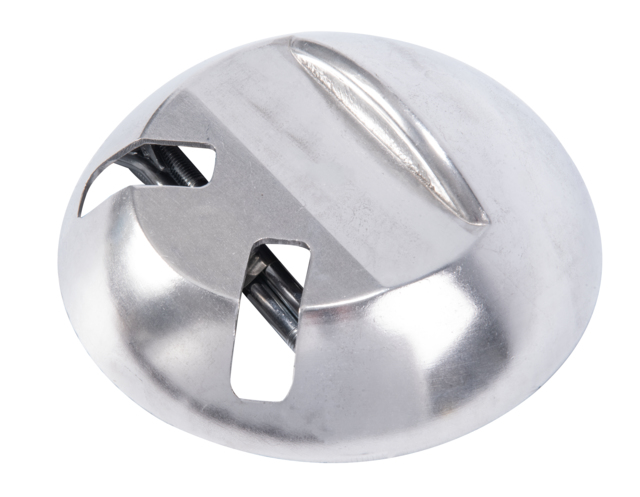

Gate stop

with long holes
Art.-No. 210953

cast aluminium, for setting in concrete

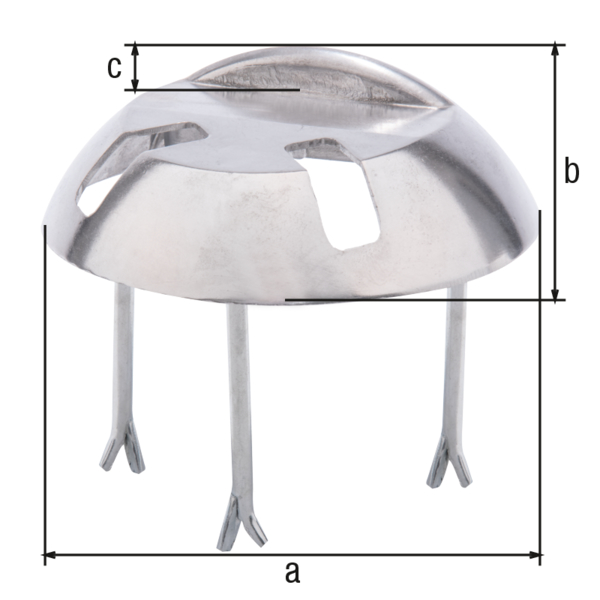

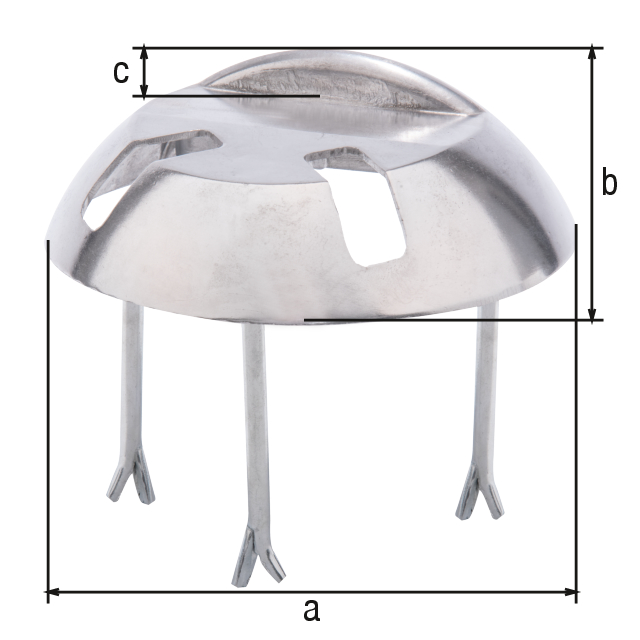

Dimension a-Ø:
205 mm
Dimension b:
65 mm
Dimension c:
17 mm
for guide height:
50 - 60 mm
depth of encase in concrete:
125 mm
Fastening type:
for setting in concrete
Quantity x hole (LxW):
1 x ( 50 x 20 ) mm
Material/surface:
cast aluminium, for setting in concrete
Systems:
AUFLST
Material:
Aluminium
:
205 mm
Height:
65 mm
Weight per UQ (kg):
0.900 kg
Contents Unit:
1 Piece

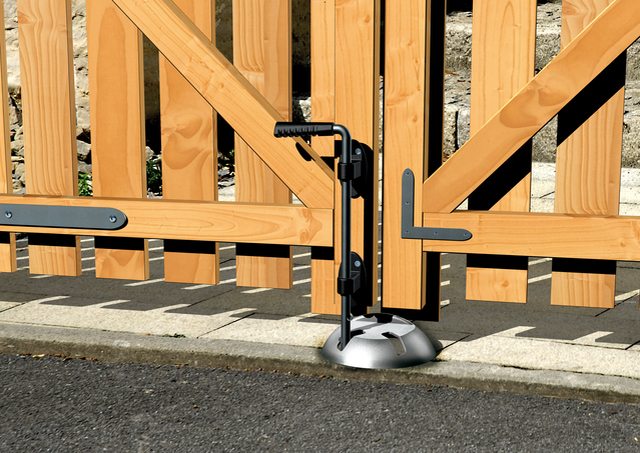

  • The rounded form of this gate stop prevents tyres from being damaged when they roll over it.

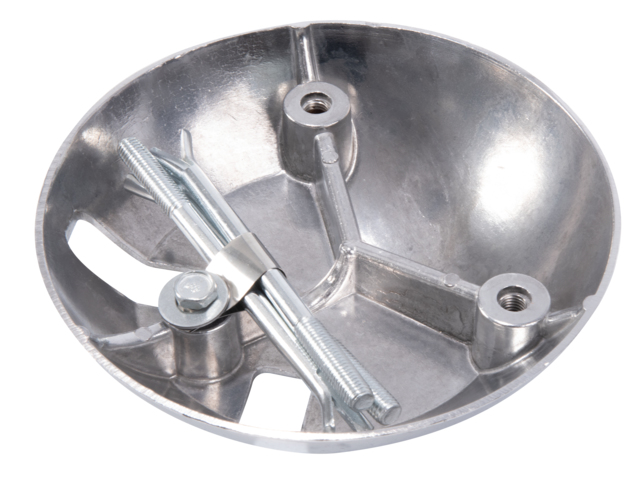

  • Three screw-on concrete anchors included.
