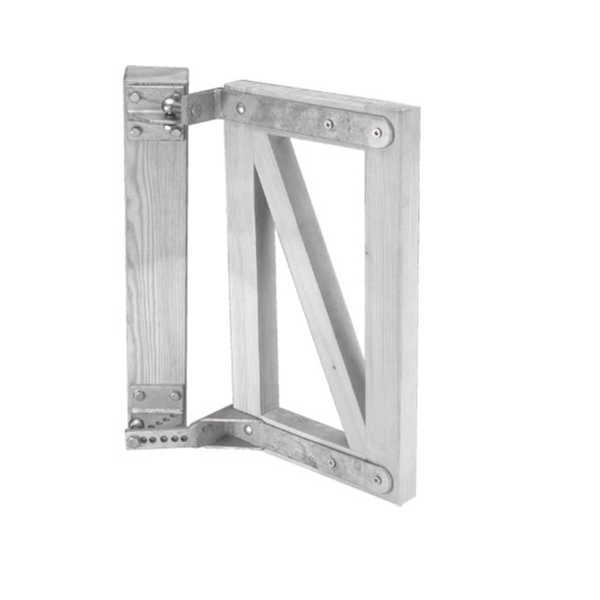

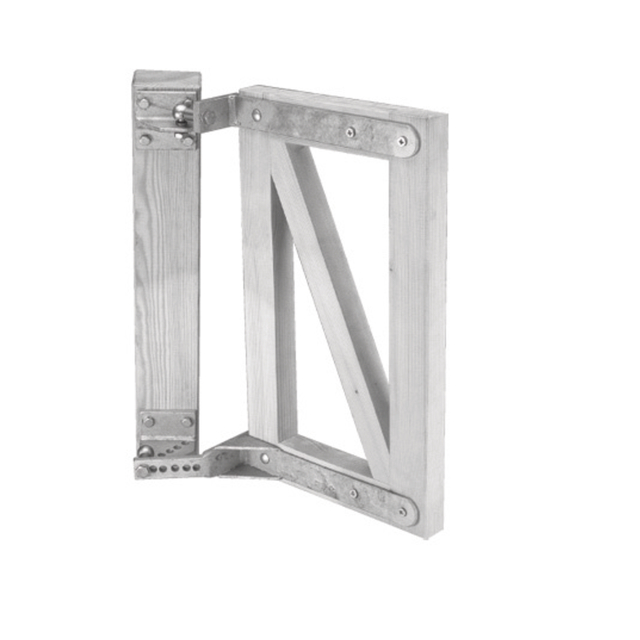

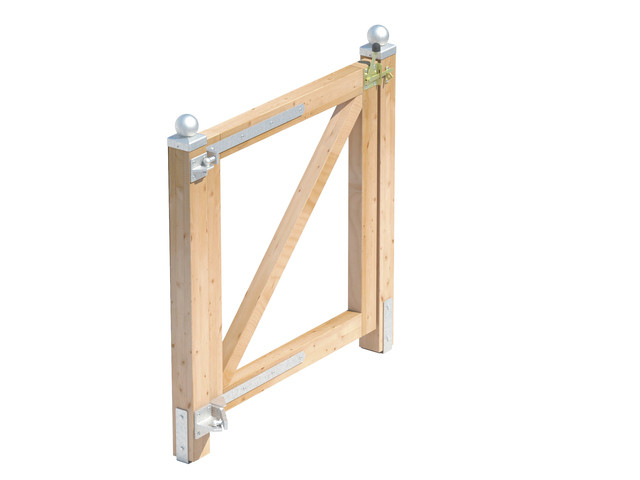

Lifting gate fitting for wooden gates

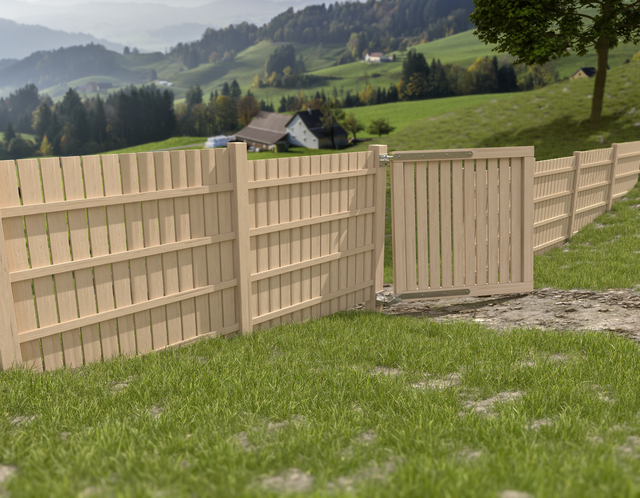

for uneven terrain
Art.-No. 219611
fittings: raw steel, fittings: hot-dip galvanised, ball angle joint and fastening material: galvanised, for screwing on
- Fastening type:
- for screwing on
- Material/surface:
- fittings: raw steel, fittings: hot-dip galvanised, ball angle joint and fastening material: galvanised, for screwing on
- Systems:
- Lift gate fitting,Wooden gate fittings
- Surface / Colour:
- VERZ
- Material:
- Steel
- Weight per UQ (kg):
- 5.17 kg
- Contents Unit:
- 1 Piece
- usable with left and right stop
- the gate can open more than 90°

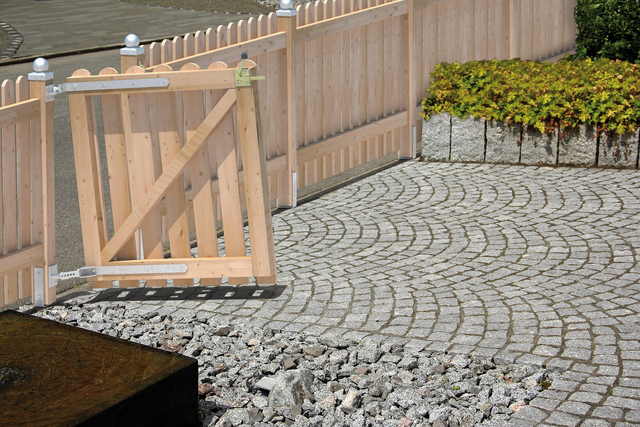

- The gate rises when opened. The incline (up to 7°) can be adjusted at different positions and depends on the size of the gate.
- load-bearing capacity of 75 kg for a gate width of 1500 mm
- A square post at least 80 mm wide is required for assembly.

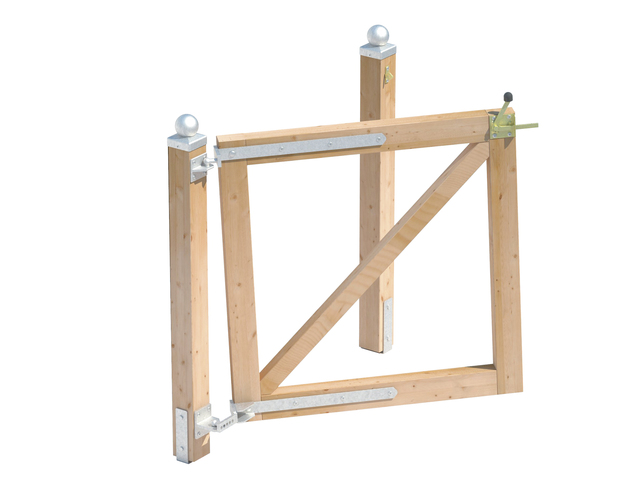

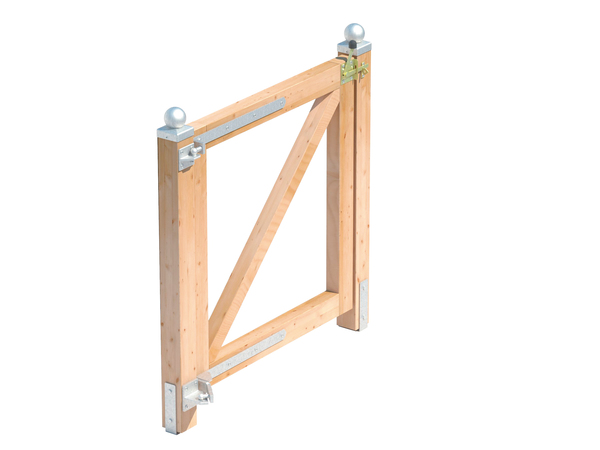

- One set for a gate leaf consists of one upper and one lower hinge, each 550 mm, one upper screw-on plate 80 x 80 x 7 mm, one lower screw-on plate 100 x 80 x 100 mm, two ball angle joints, greased, galvanised, fixing screws, and assembly instructions. Packed in cardboard box.
