• Adjustable angle connector, stamped, 2 angles 45°, Material: raw steel, Surface: sendzimir galvanised, Depth: 50 mm, Leg: 30 mm, Height: 110 mm, Width: 32 mm, Material thickness: 1.50 mm, No. of holes: 1 / 1 / 3, Hole: 8 x 40 / 6.5 x 40 / Ø5.5 mm, CutCase
  • Adjustable angle connector, stamped, 2 angles 45°, Material: raw steel, Surface: sendzimir galvanised, Depth: 50 mm, Leg: 30 mm, Height: 110 mm, Width: 32 mm, Material thickness: 1.50 mm, No. of holes: 1 / 1 / 3, Hole: 8 x 40 / 6.5 x 40 / Ø5.5 mm, CutCase

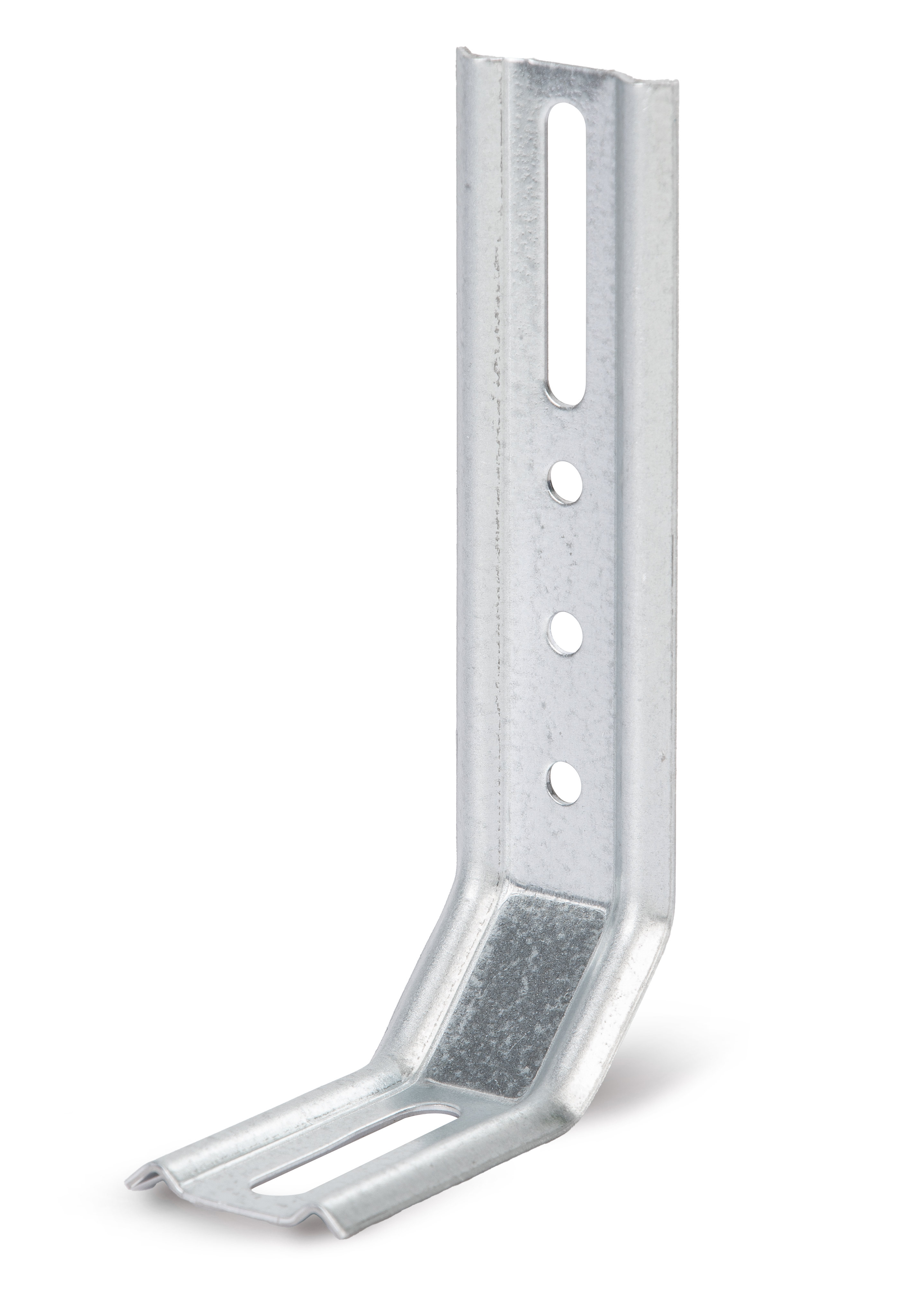

Adjustable angle connector, stamped, 2 angles 45°

Art.-No. 341398

raw steel, sendzimir galvanised

10 Variants
Dimension a:
50 mm
Dimension b:
30 mm
Dimension c:
110 mm
Dimension d:
32 mm
Fastening type:
for screwing on
Material thickness:
1.5 mm
Quantity x hole (LxW):
1 x ( 8 x 40 ) mm
Quantity x hole (LxW):
1 x ( 6.5 x 40 ) mm
Quantity x hole Ø:
3 x Ø5.5 mm
Material/surface:
raw steel, sendzimir galvanised
Surface / Colour:
VERZ
Material:
Steel
Width:
32 mm
Height:
110 mm
Depth:
50 mm
Weight per UQ (kg):
0.081 kg
Contents Unit:
25 Piece
