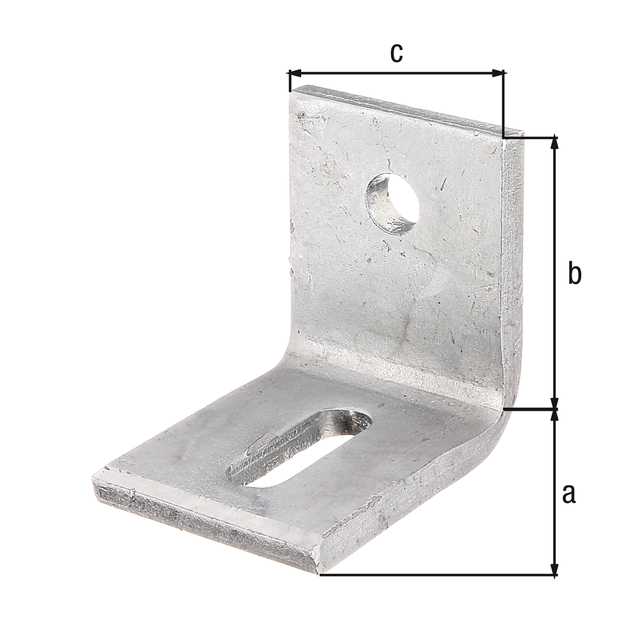

Adjustable angle connector for constructions with concrete

Art.-No. 335069

raw steel, hot-dip galvanised

2 Variants
Dimension a:
77 mm
Dimension b:
77 mm
Dimension c:
60 mm
Fastening type:
for screwing on
Material thickness:
8 mm
Quantity x hole (LxW):
1 x ( 14 x 43 ) mm
Quantity x hole Ø:
1 x Ø14 mm
Material/surface:
raw steel, hot-dip galvanised
Surface / Colour:
FVZ
Material:
Steel
Width:
60 mm
Height:
77 mm
Depth:
77 mm
Weight per UQ (kg):
0.37 kg
Contents Unit:
20 Piece
Article-No.
Dimension a
Dimension b
Dimension c
Fastening type
Action
Article-No. 335069
Dimension a 77 mm
Dimension b 77 mm
Dimension c 60 mm
Fastening type for screwing on
Article-No. 335656
Dimension a 80 mm
Dimension b 150 mm
Dimension c 60 mm
Fastening type for screwing on
