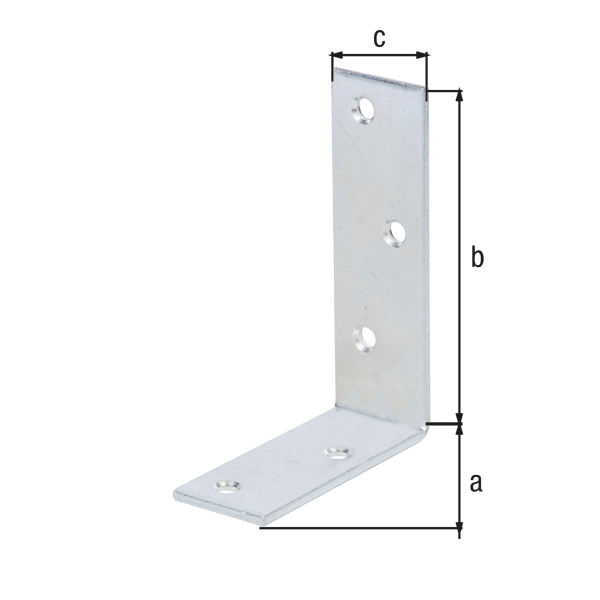

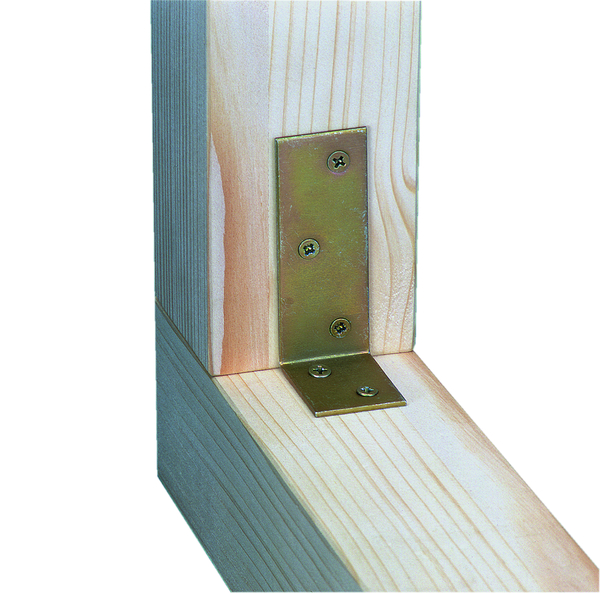

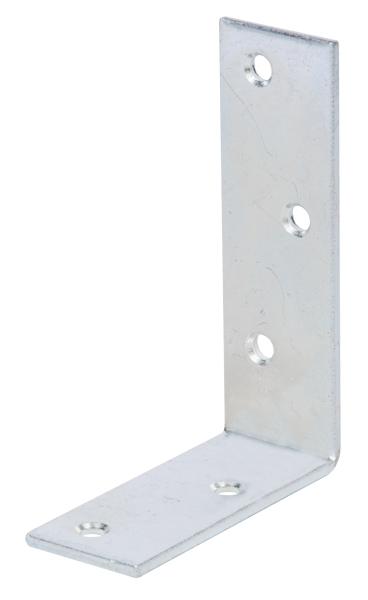

Joist hanger angle bracket, unequal sided
with countersunk screw holes
Art.-No. 332259
- Dimension a:
- 75 mm
- Dimension b:
- 100 mm
- Dimension c:
- 30 mm
- Fastening type:
- for screwing on
- Material thickness:
- 3 mm
- Quantity x hole Ø:
- 5 x Ø5.5 mm
- Material/surface:
- raw steel, galvanised, thick-film passivated
- Surface / Colour:
- VERZ
- Material:
- Steel
- Width:
- 30 mm
- Height:
- 100 mm
- Depth:
- 75 mm
- Weight per UQ (kg):
- 0.104 kg
- Contents Unit:
- 50 Piece
Article-No.
Dimension a
Dimension b
Dimension c
Fastening type
Action

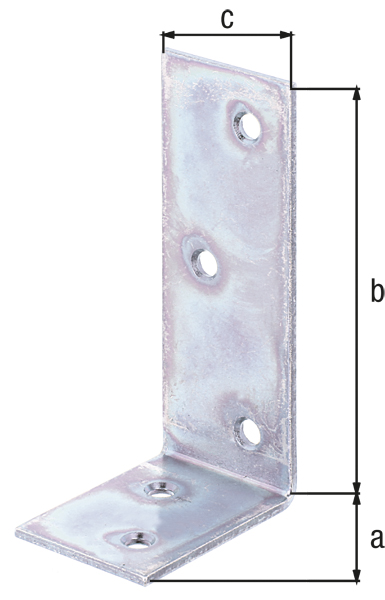

Article-No.
332839
Dimension a
40 mm
Dimension b
80 mm
Dimension c
30 mm
Fastening type
for screwing on

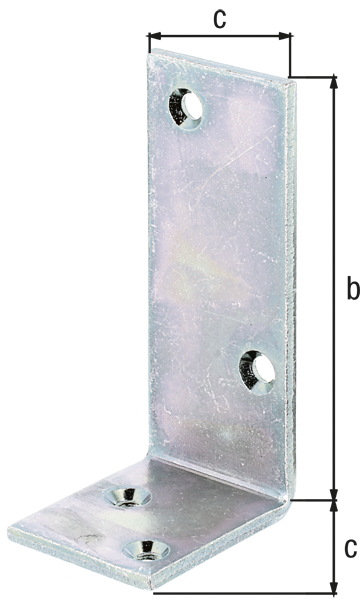

Article-No.
333300
Dimension a
50 mm
Dimension b
100 mm
Dimension c
40 mm
Fastening type
for screwing on
Article-No.
332259
Dimension a
75 mm
Dimension b
100 mm
Dimension c
30 mm
Fastening type
for screwing on

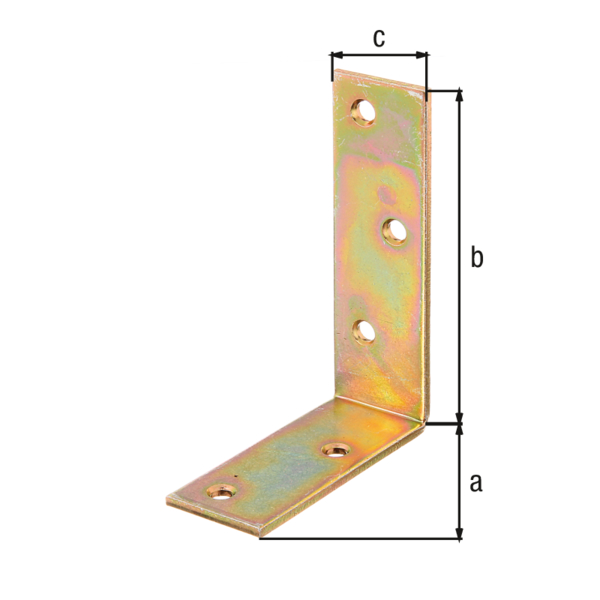

Article-No.
335175
Dimension a
75 mm
Dimension b
100 mm
Dimension c
30 mm
Fastening type
for screwing on

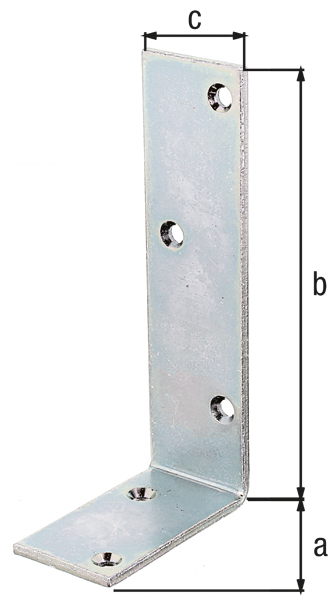

Article-No.
333355
Dimension a
75 mm
Dimension b
150 mm
Dimension c
40 mm
Fastening type
for screwing on
Article-No.

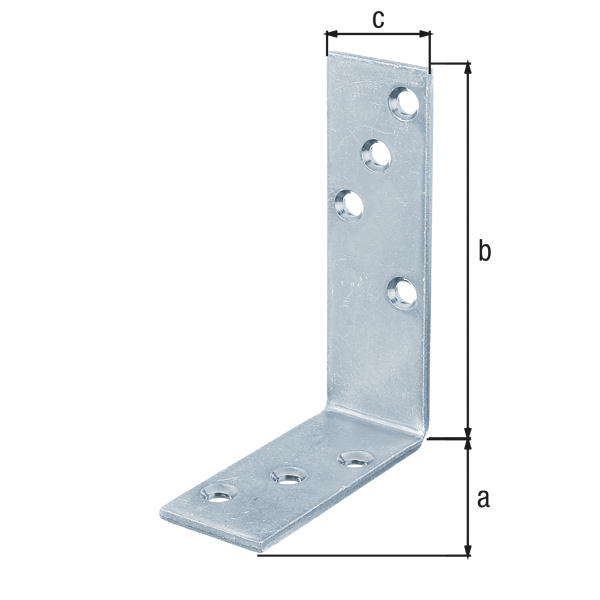

332303
Dimension a
80 mm
Dimension b
120 mm
Dimension c
35 mm
Fastening type
for screwing on

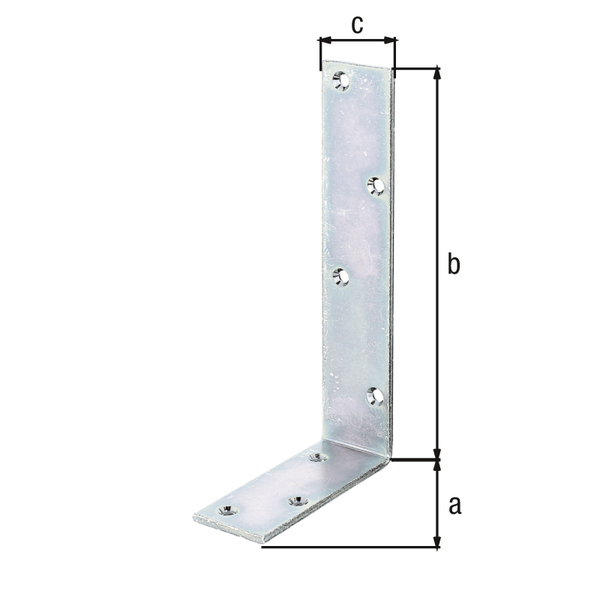

Article-No.
333409
Dimension a
100 mm
Dimension b
200 mm
Dimension c
40 mm
Fastening type
for screwing on

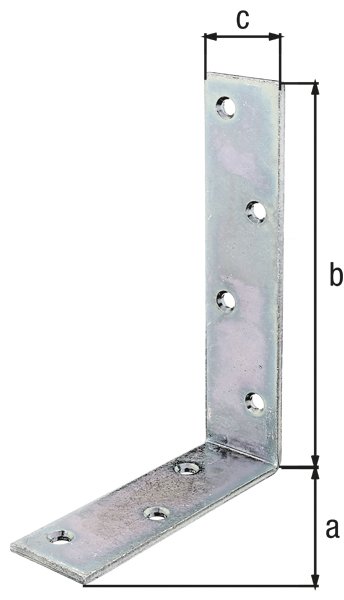

Article-No.
334055
Dimension a
120 mm
Dimension b
180 mm
Dimension c
40 mm
Fastening type
for screwing on
Article-No.

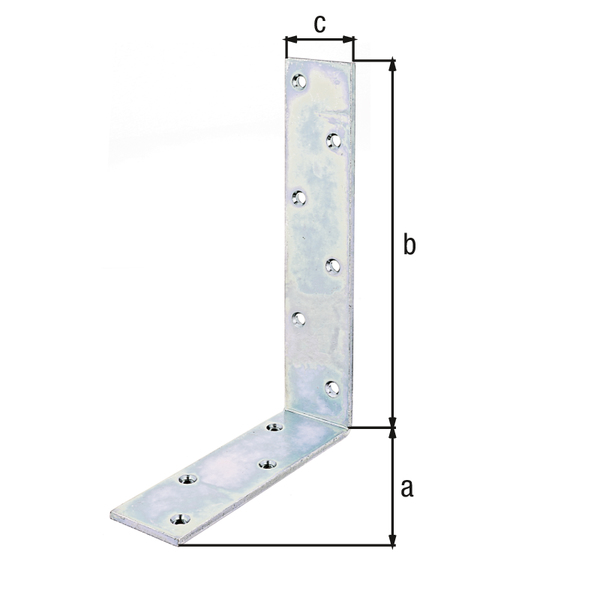

334154
Dimension a
160 mm
Dimension b
240 mm
Dimension c
50 mm
Fastening type
for screwing on
