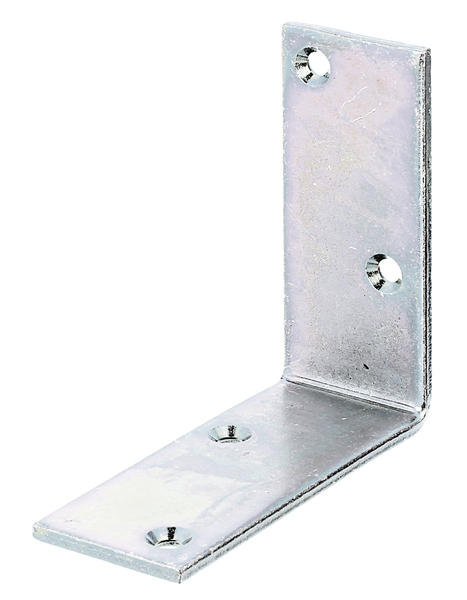

Joist hanger angle bracket, wide, equal sided

with countersunk screw holes
Art.-No. 333508

raw steel, galvanised, thick-film passivated

3 Variants

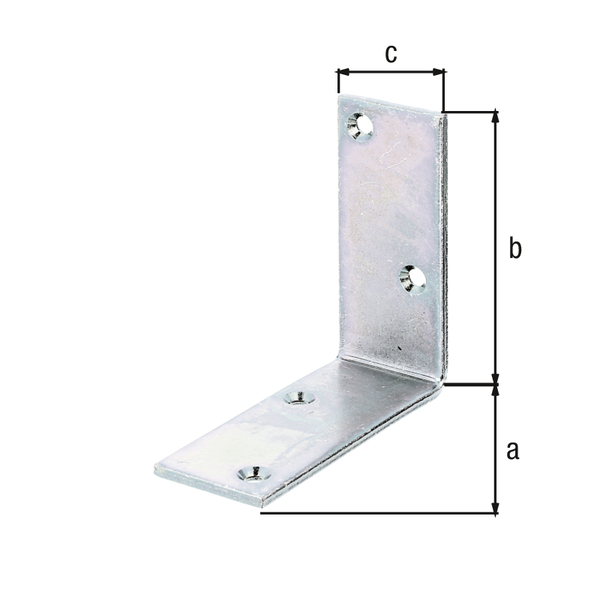

Dimension a:
100 mm
Dimension b:
100 mm
Dimension c:
40 mm
Fastening type:
for screwing on
Material thickness:
4 mm
Quantity x hole Ø:
4 x Ø6 mm
Material/surface:
raw steel, galvanised, thick-film passivated
Surface / Colour:
VERZ
Material:
Steel
Width:
40 mm
Height:
100 mm
Depth:
100 mm
Weight per UQ (kg):
0.305 kg
Contents Unit:
20 Piece
Article-No.
Dimension a
Dimension b
Dimension c
Fastening type
Action
Article-No. 333508
Dimension a 100 mm
Dimension b 100 mm
Dimension c 40 mm
Fastening type for screwing on

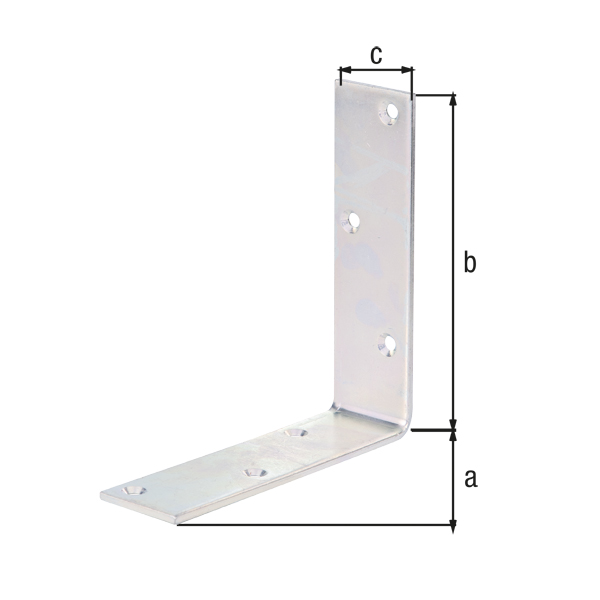

Article-No. 333553
Dimension a 150 mm
Dimension b 150 mm
Dimension c 40 mm
Fastening type for screwing on

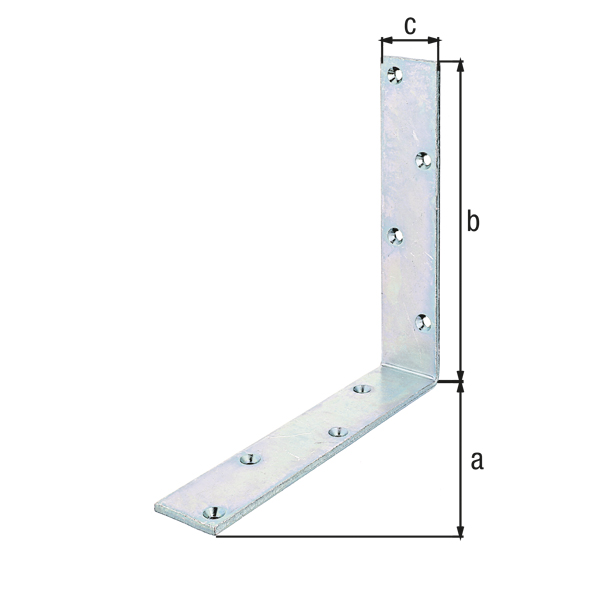

Article-No. 333607
Dimension a 200 mm
Dimension b 200 mm
Dimension c 40 mm
Fastening type for screwing on
