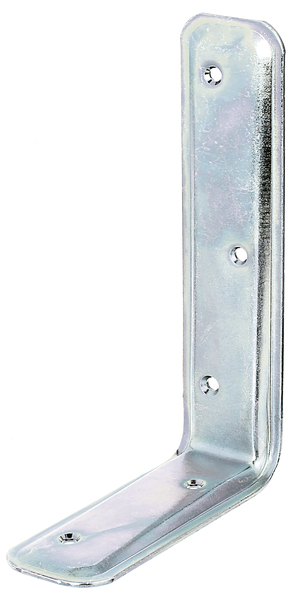

Supporting angle bracket, embossed

with countersunk screw holes
Art.-No. 340407
2 Variants

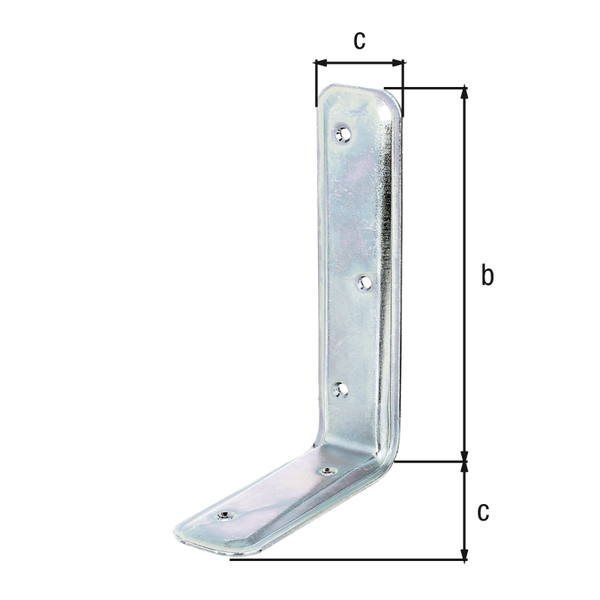

Dimension a:
100 mm
Dimension b:
160 mm
Dimension c:
40 mm
Fastening type:
for screwing on
Material thickness:
2 mm
Quantity x hole Ø:
5 x Ø4.5 mm
Material/surface:
raw steel, galvanised, thick-film passivated
Surface / Colour:
VERZ
Material:
Steel
Width:
40 mm
Height:
160 mm
Depth:
100 mm
Weight per UQ (kg):
0.162 kg
Contents Unit:
20 Piece
Article-No.
Dimension a
Dimension b
Dimension c
Fastening type
Action

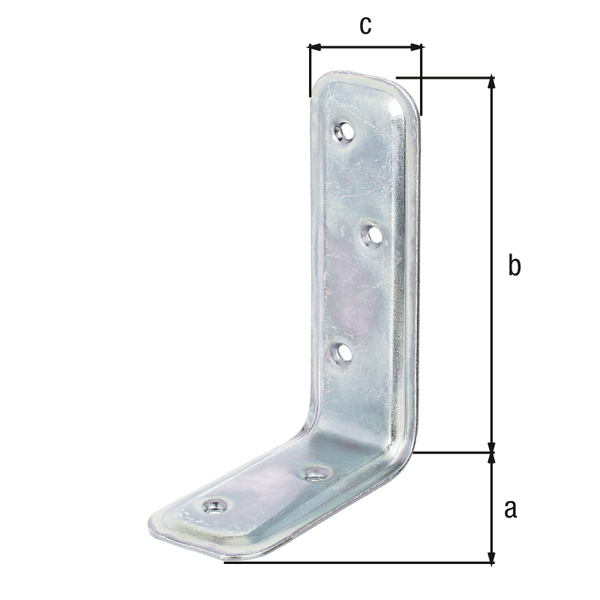

Article-No. 340308
Dimension a 80 mm
Dimension b 120 mm
Dimension c 40 mm
Fastening type for screwing on
Article-No. 340407
Dimension a 100 mm
Dimension b 160 mm
Dimension c 40 mm
Fastening type for screwing on
