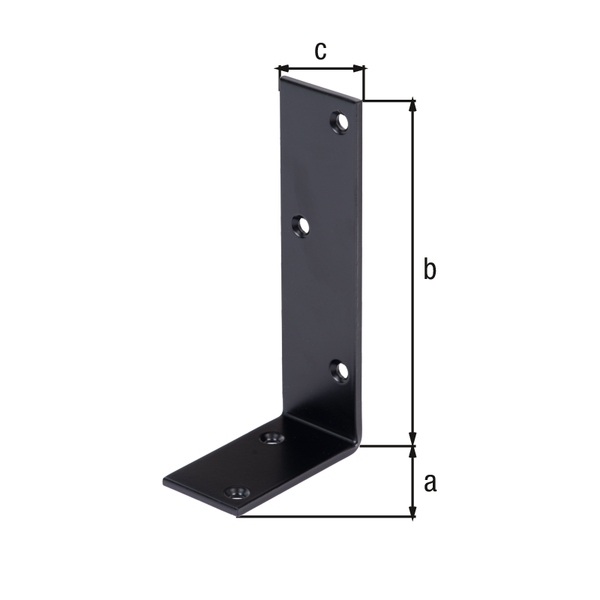

Joist hanger angle bracket, unequal sided, black
with countersunk screw holes
Art.-No. 329600
raw steel, galvanised, black powder-coated
- Dimension a:
- 75 mm
- Dimension b:
- 150 mm
- Dimension c:
- 40 mm
- Fastening type:
- for screwing on
- Material thickness:
- 4 mm
- :
- 15 years
- Quantity x hole Ø:
- 5 x Ø6 mm
- Material/surface:
- raw steel, galvanised, black powder-coated
- Systems:
- Wood connector
- Surface / Colour:
- black
- Material:
- Steel
- Width:
- 40 mm
- Height:
- 150 mm
- Depth:
- 75 mm
- Weight per UQ (kg):
- 0.27 kg
- Contents Unit:
- 20 Piece
Article-No.
Dimension a
Dimension b
Dimension c
Fastening type
Action
Article-No.
329600
Dimension a
75 mm
Dimension b
150 mm
Dimension c
40 mm
Fastening type
for screwing on

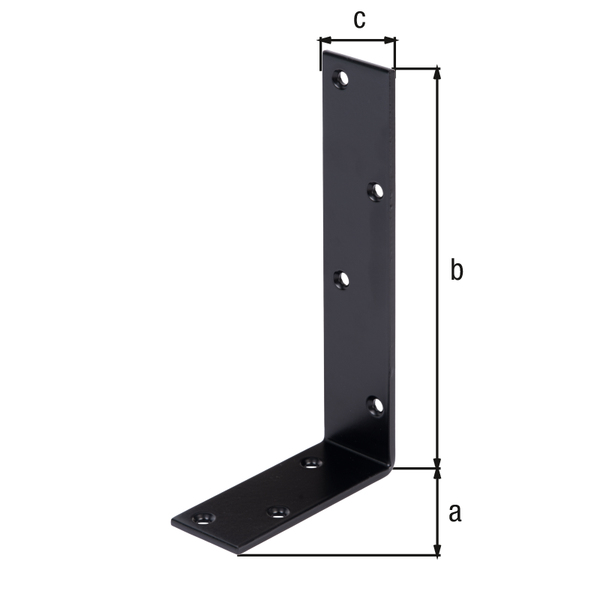

Article-No.
329532
Dimension a
100 mm
Dimension b
200 mm
Dimension c
40 mm
Fastening type
for screwing on
