• Lock bolt with flat handle, with countersunk screw holes, Material: raw steel, Surface: galvanised, black powder-coated, type: straight, with attached staple, Plate length: 120 mm, Plate width: 44 mm, Slide width: 16 mm, Width of locking plate: 13 mm, Length of locking plate: 45 mm, No. of holes: 6 / 2, Hole: Ø5 / Ø4 mm, 15-year warranty against rusting through
  • Lock bolt with flat handle, with countersunk screw holes, Material: raw steel, Surface: galvanised, black powder-coated, type: straight, with attached staple, Plate length: 120 mm, Plate width: 44 mm, Slide width: 16 mm, Width of locking plate: 13 mm, Length of locking plate: 45 mm, No. of holes: 6 / 2, Hole: Ø5 / Ø4 mm, 15-year warranty against rusting through

Lock bolt with flat handle, black

with countersunk screw holes
Art.-No. 117085

raw steel, galvanised, black powder-coated, type: straight, with attached staple

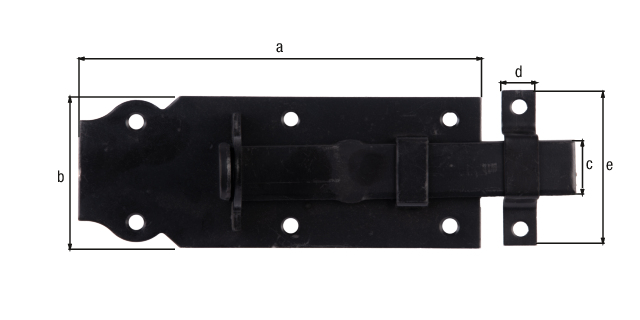

Dimension a:
120 mm
Dimension b:
44 mm
Dimension c:
16 mm
Dimension d:
13 mm
Dimension e:
45 mm
Extension length:
33 mm
Fastening type:
for screwing on
:
15 years
Quantity x hole Ø:
6 x Ø5 mm
Quantity x hole Ø:
2 x Ø4 mm
Material/surface:
raw steel, galvanised, black powder-coated, type: straight, with attached staple
Systems:
Bolts,Wooden gate fittings
Surface / Colour:
black
Material:
Steel
Panel width:
44 mm
Panel length:
120 mm
Weight per UQ (kg):
0.165 kg
Contents Unit:
10 Piece
