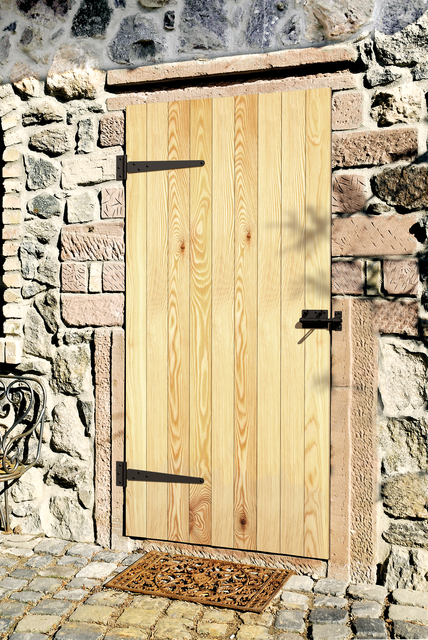

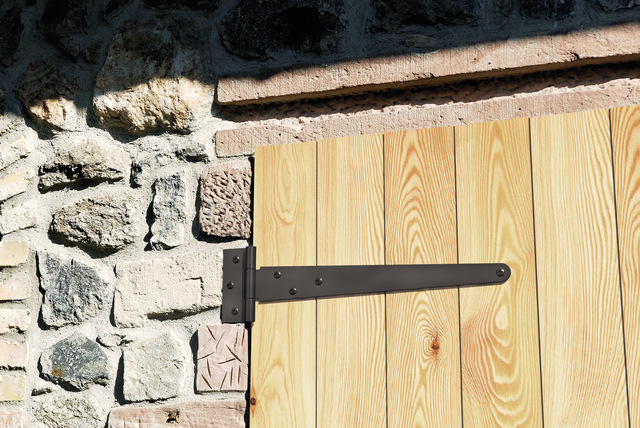

Tee hinge, black
with loose pin
Art.-No. 306960
raw steel, black cataphoretic coating
- Dimension a:
- 248 mm
- Dimension b:
- 40 mm
- Dimension c:
- 90 mm
- Dimension d:
- 46 mm
- Material thickness:
- 1.8 mm
- Quantity x hole Ø:
- 7 x Ø6 mm
- Material/surface:
- raw steel, black cataphoretic coating
- Systems:
- Band hooks and hooks,Wooden gate fittings,Hinges and hangers
- Belt length:
- 248 mm
- Weight per UQ (kg):
- 0.270 kg
- Contents Unit:
- 10 Piece
Article-No.
Dimension a
Dimension b
Dimension c
Dimension d
Action
Article-No.
306960
Dimension a
248 mm
Dimension b
40 mm
Dimension c
90 mm
Dimension d
46 mm
Article-No.
309855
Dimension a
294 mm
Dimension b
40 mm
Dimension c
90 mm
Dimension d
46 mm
Article-No.
309862
Dimension a
348 mm
Dimension b
40 mm
Dimension c
90 mm
Dimension d
46 mm
Article-No.
309879
Dimension a
397 mm
Dimension b
40 mm
Dimension c
90 mm
Dimension d
46 mm
Article-No.
309886
Dimension a
495 mm
Dimension b
40 mm
Dimension c
90 mm
Dimension d
46 mm
Article-No.
309893
Dimension a
596 mm
Dimension b
40 mm
Dimension c
90 mm
Dimension d
48 mm
- Suitable fasteners can be found in the range “Screws and accessories”.
