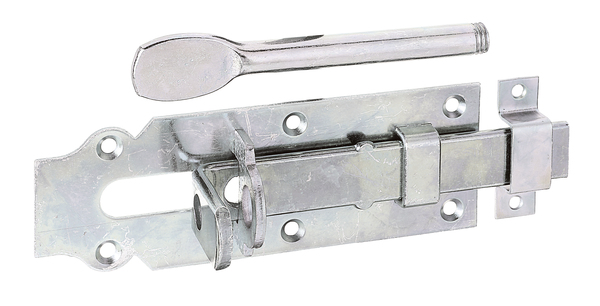

Barn flush bolt with flat handle
with countersunk screw holes
Art.-No. 117184
raw steel, galvanised, thick-film passivated, type: straight, with attached staple

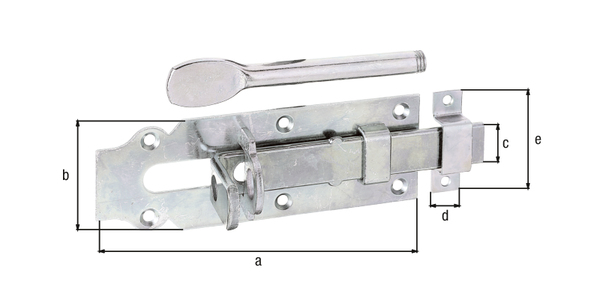

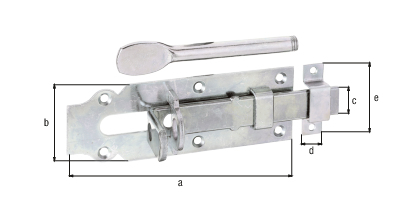

- Dimension a:
- 160 mm
- Dimension b:
- 56 mm
- Dimension c:
- 22 mm
- Dimension d:
- 16 mm
- Dimension e:
- 55 mm
- Pin length:
- 128 mm
- Extension length:
- 42 mm
- Quantity x hole Ø:
- 6 x Ø5.5 mm
- Quantity x hole Ø:
- 2 x Ø4.5 mm
- Material/surface:
- raw steel, galvanised, thick-film passivated, type: straight, with attached staple
- Systems:
- Bolts
- Surface / Colour:
- VERZ
- Material:
- Steel
- Panel width:
- 56 mm
- Panel length:
- 160 mm
- Weight per UQ (kg):
- 0.388 kg
- Contents Unit:
- 5 Piece
Article-No.
Dimension a
Dimension b
Dimension c
Dimension d
Action
Article-No.
117184
Dimension a
160 mm
Dimension b
56 mm
Dimension c
22 mm
Dimension d
16 mm

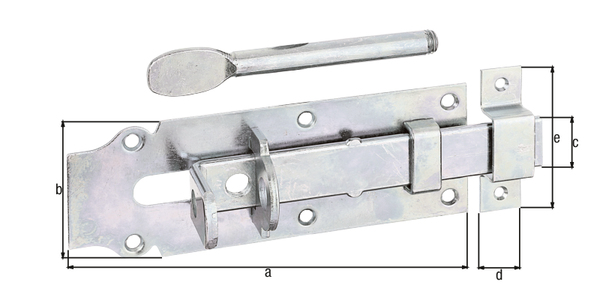

Article-No.
117160
Dimension a
180 mm
Dimension b
64 mm
Dimension c
25 mm
Dimension d
20 mm
- Threaded to screw the pin into the back of the slider.
- The pin that has been screwed in on the back allows the gate to be opened from the inside.
- Pin not attached
