• Barrel bolt with brass knob, with spring, with countersunk screw holes, Material: raw steel, Surface: nickel-plated, polished, with attached staple, Plate length: 40 mm, Plate width: 75 mm, Bolt-Ø: 9 mm, Loop width: 13 mm, Loop length: 52 mm, Total length: 60 mm, No. of holes: 8, Hole: Ø4.2 mm
  • Barrel bolt with brass knob, with spring, with countersunk screw holes, Material: raw steel, Surface: nickel-plated, polished, with attached staple, Plate length: 40 mm, Plate width: 75 mm, Bolt-Ø: 9 mm, Loop width: 13 mm, Loop length: 52 mm, Total length: 60 mm, No. of holes: 8, Hole: Ø4.2 mm

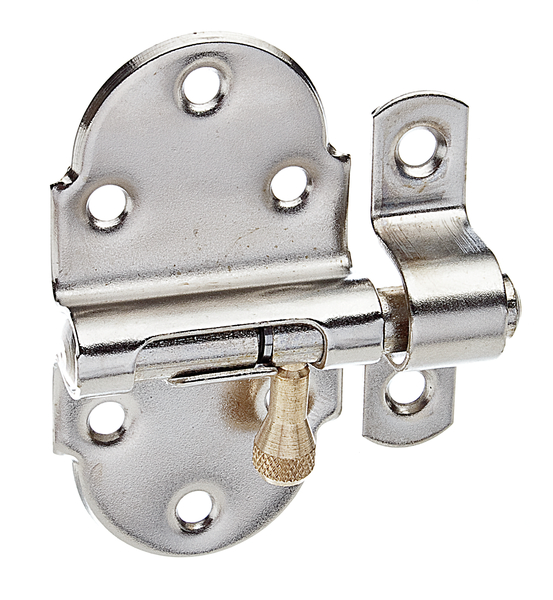

Barrel bolt with brass knob

with countersunk screw holes
Art.-No. 128869
2 Variants

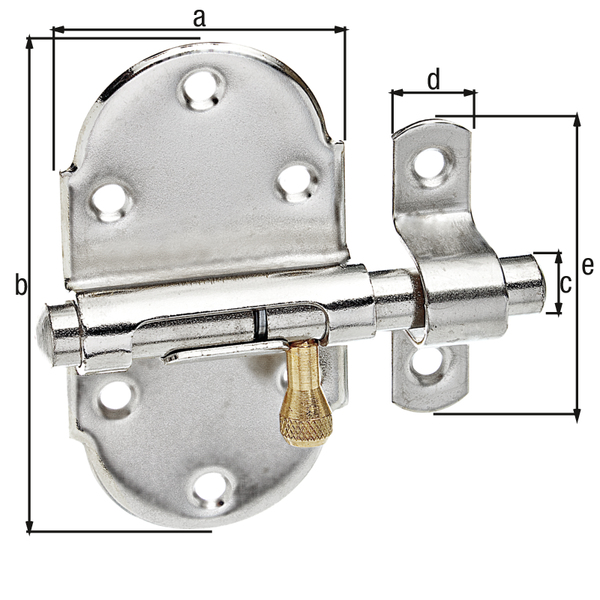

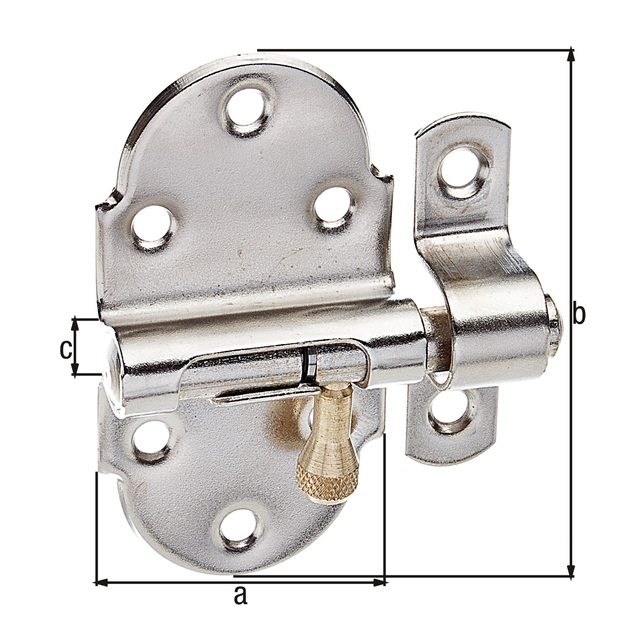

Dimension a:
40 mm
Dimension b:
75 mm
Dimension c-Ø:
9 mm
Dimension d:
13 mm
Dimension e:
52 mm
Dimension f:
60 mm
Extension length:
20 mm
Quantity x hole Ø:
8 x Ø4.2 mm
Material/surface:
raw steel, nickel-plated, polished, with attached staple
Systems:
Bolts
Surface / Colour:
VNKLT
Material:
Steel
Panel width:
75 mm
:
60 mm
Panel length:
40 mm
:
9 mm
Weight per UQ (kg):
0.08 kg
Contents Unit:
10 Piece
Article-No.
Dimension a
Dimension b
Dimension c-Ø
Dimension d
Action
Article-No. 128869
Dimension a 40 mm
Dimension b 75 mm
Dimension c-Ø 9 mm
Dimension d 13 mm
Article-No. 128876
Dimension a 45 mm
Dimension b 85 mm
Dimension c-Ø 10 mm
Dimension d 13 mm
  • When closed, the locked head prevents undesirable loosening due to vibration.
